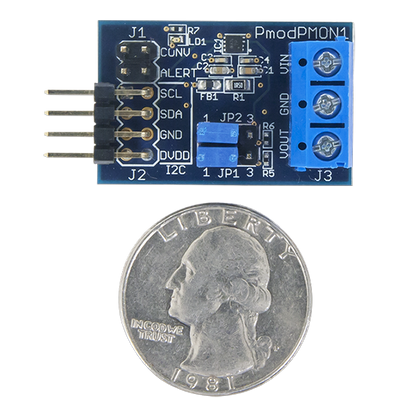

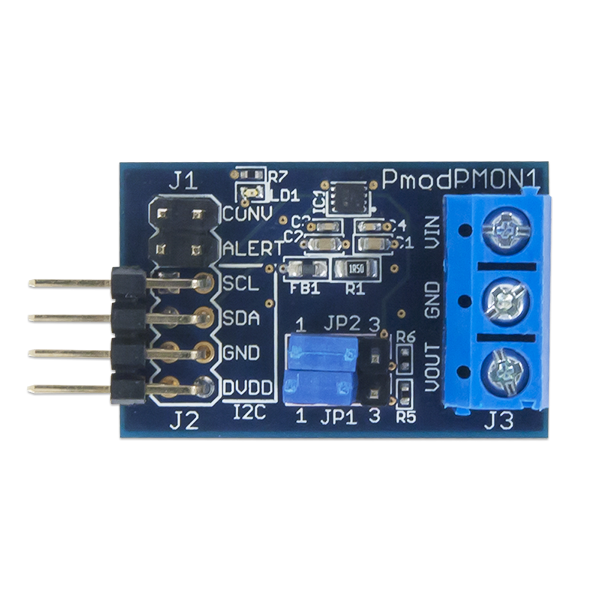

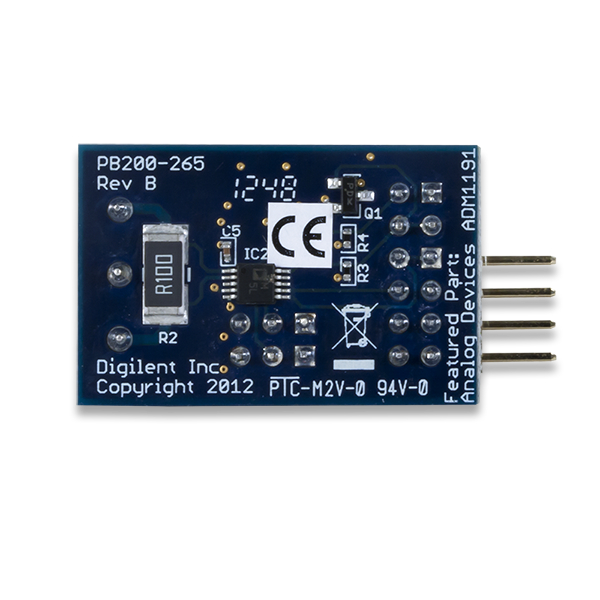

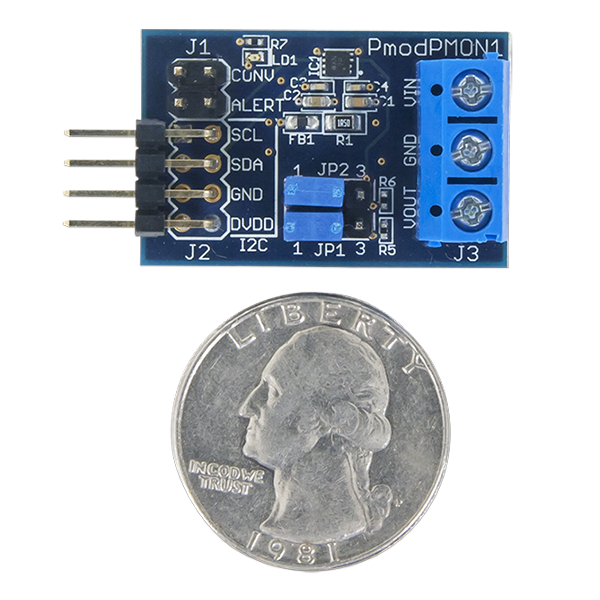

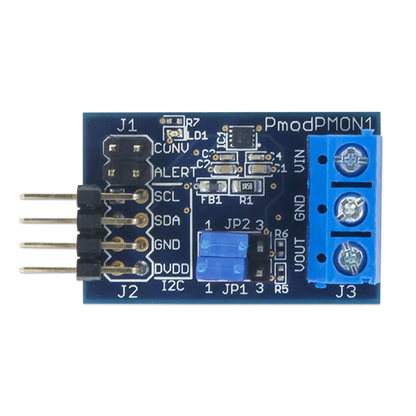

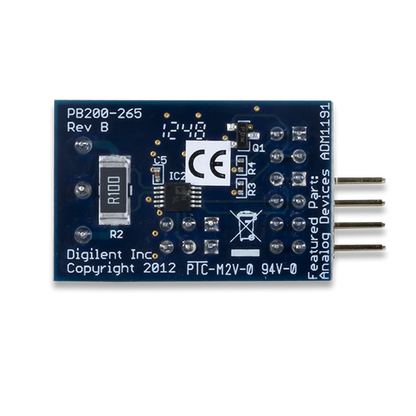

Pmod PMON1: Power Monitor

The Pmod PMON1 is a power monitoring system that uses the Analog Devices AD5112 and ADM119. By using I²C, users can set a reference voltage on the AD5112 to indicate what qualifies as an overcurrent condition for the ADM119. Once an alert condition occurs, users can also program alarms or other events to occur.

Features:

• Monitor current draw less than 1.058 A

• Wide range of configurable alert conditions

• Monitor voltages from 3.16 V to 26 V

• Configurable device address for up to nine modules in a single system

• Small PCB size for flexible designs 1.2“ × 0.8” (2.8 cm × 2.0 cm)

• 2×4-pin connector with I2C interface

• Follows Digilent Pmod Interface Specification

What's Included:

• Pmod PMON1
• Custom antistatic Pmod packaging
