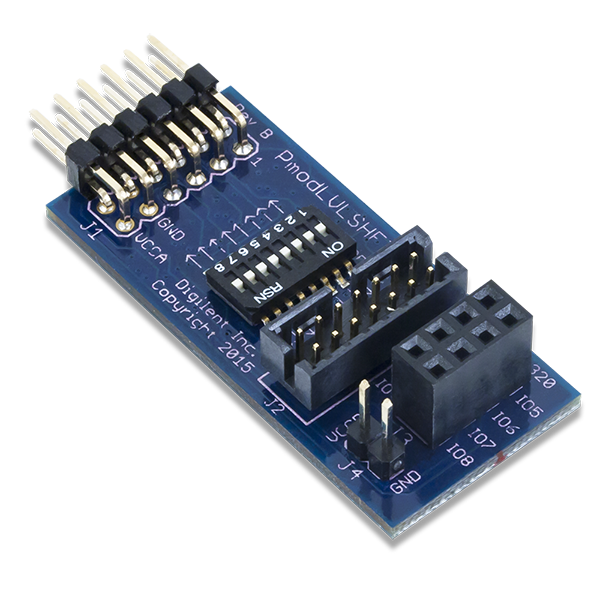

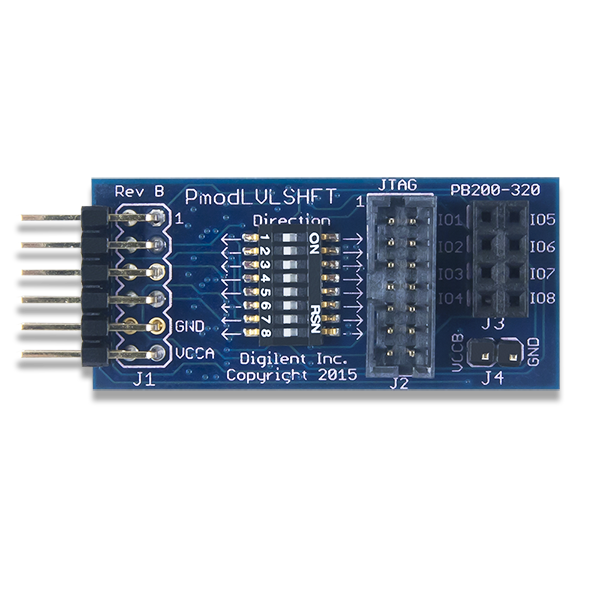

Pmod LVLSHFT: Logic Level Shifter

The Digilent Pmod LVLSHFT is a digital logic level shifter that uses the Texas Instruments SN47LVC1T45 tranceiver. This module is ideal for users who want to supply logic signals following a 3.3V CMOS standard but have an alternate logic level output that is used for other applications, such as JTAG programming.

Features:

• Digital logic level shifter

• Translate logic signals between two user supplied voltage levels

• 2×7 JTAG header

• 8 miniature switches to dictate logic level conversion

• Voltage range between 1.8V and 5.5V

• Small PCB size for flexible designs 1.8 in × 0.8 in (4.6 cm × 2.0 cm)

• 12-pin Pmod connector with GPIO interface

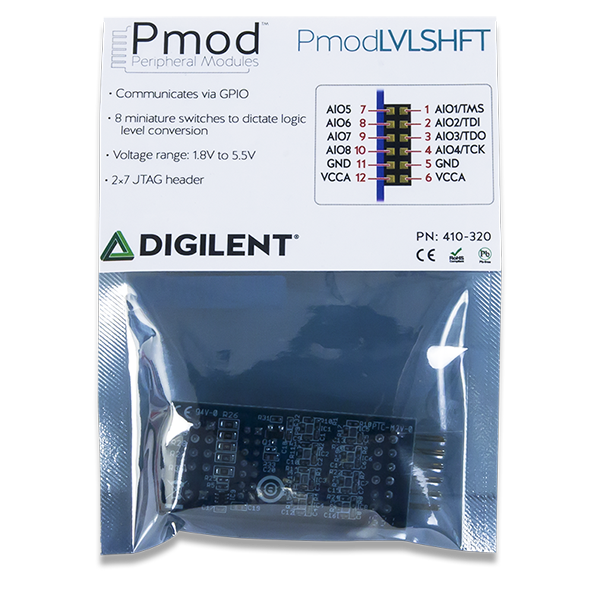

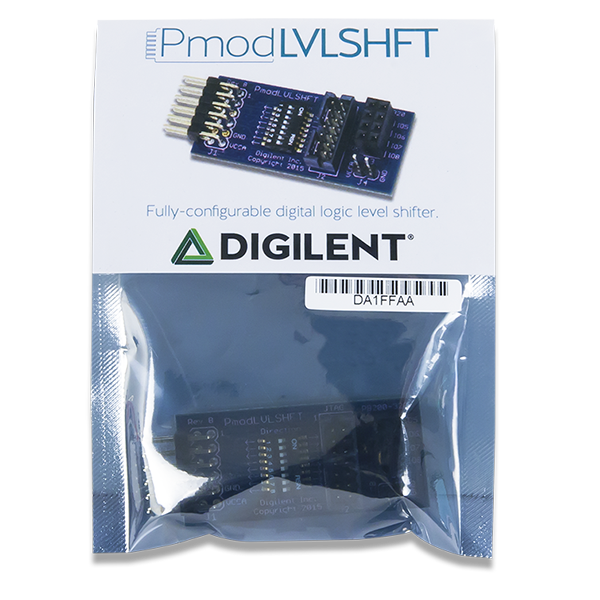

What's Included:

• Pmod LVLSHFT

• Custom antistatic Pmod packaging
