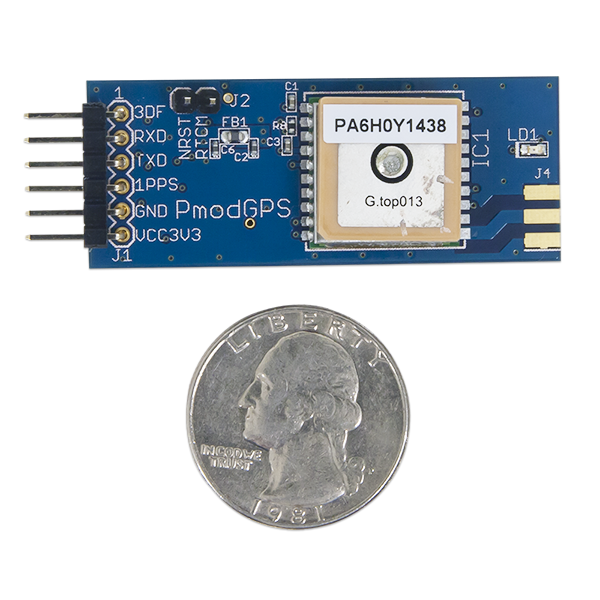

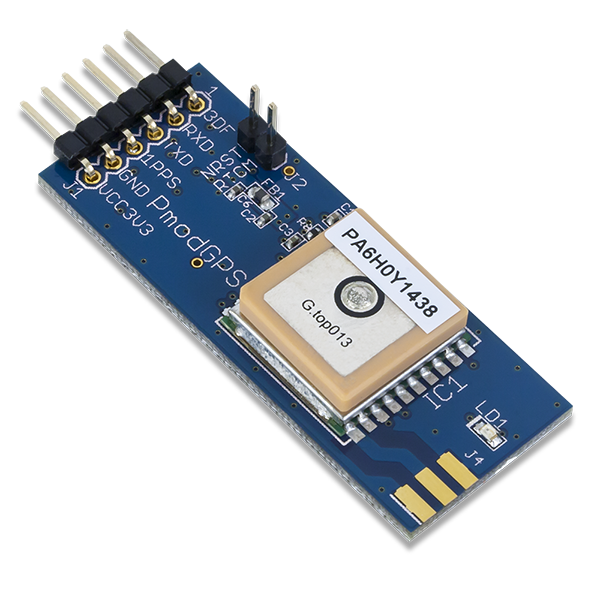

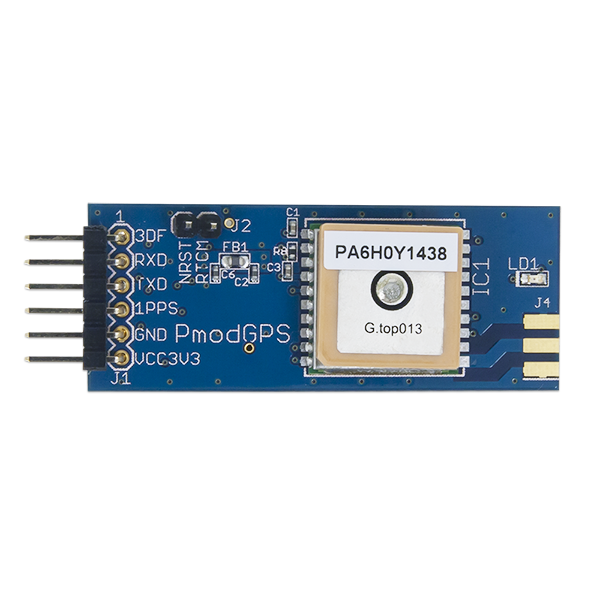

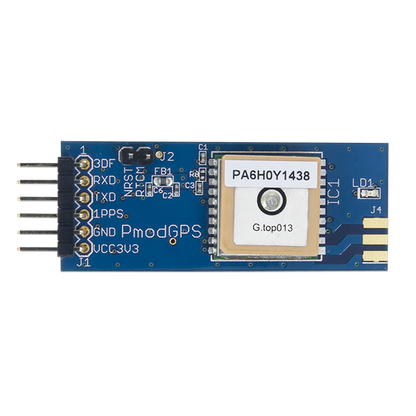

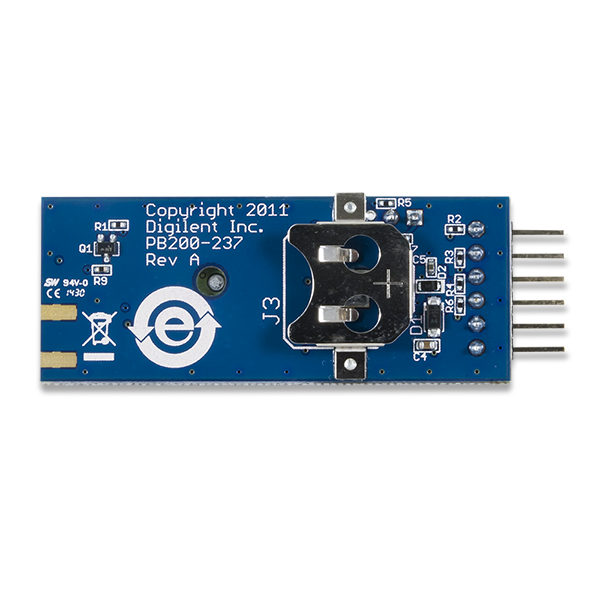

Pmod GPS: GPS Receiver

The Pmod GPS can provide satellite positioning accuracy to any embedded system. By communicating through UART with the GlobalTop FGPMMOPA6H GPS module, users may benefit from the 3 meter accuracy for any long term traveling.

Note:

Due to an end of life notice on the Gms-u1LP antenna module, the PmodGPS will be using the FGPMMOPA6H module. Please see the previous PmodGPS page for resources.

Features:

• Ultra-sensitive GPS module (-165 dBm)

• Add 3m 2D satellite positioning accuracy to any embedded system

• Low power consumption

• Up to 10Hz update rate

• NMEA (default) and RTCM protocols available

• Small PCB size for flexible designs 2.0 in × 0.8 in (5.0 cm × 2.0 cm)

• 6-pin Pmod connector with UART interface

• Library and example code available in resource center

What's Included:

• Pmod GPS
• Custom antistatic Pmod packaging
