Pmod DPG1: Differential Pressure Gauge Sensor

Description

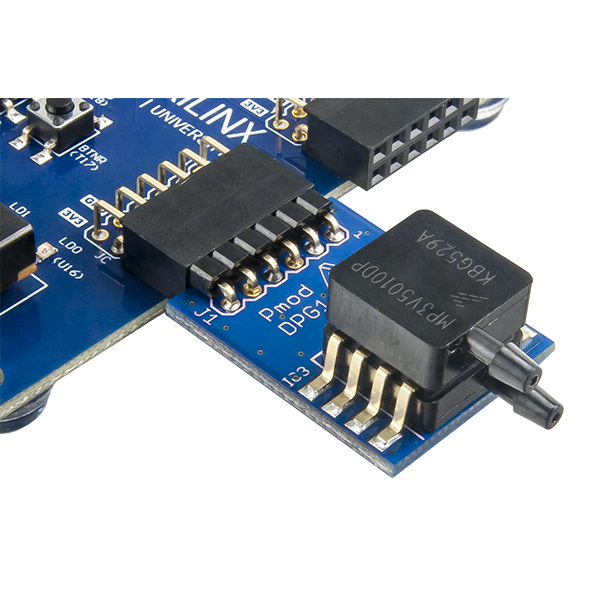

The Digilent Pmod DPG1 is a differential pressure gauge module. With NXP's MP3V5010DP piezoresistive transducer and Texas Instrument's ADCS7476 12-bit Analog-to-Digital Converter, you can detect when a change in pressure between the two ports occurs and send digital information to your system board.

Features:

• Differential pressure transducer

• 12-bit ADC
• 0 to 10 kPa differential pressure range
• Temperature compensated and calibrated
• Small PCB size for flexible designs 1.0“ × 0.8” (2.54 cm × 2.0 cm)
• 6-pin Pmod connector with SPI interface
• Follows Digilent Pmod Interface Specification Type 2
• Library and example code available in resource center

What's Included

• Pmod DPG1
• 2.5 mm polyvinyl tube 61 cm length
• Custom antistatic Pmod packaging
