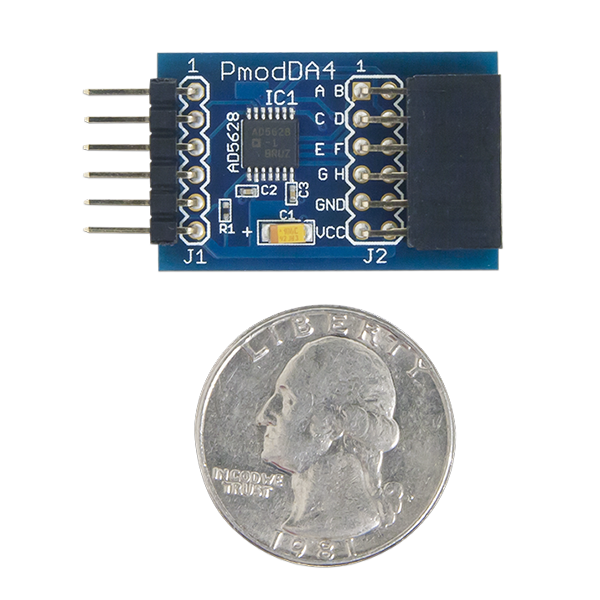

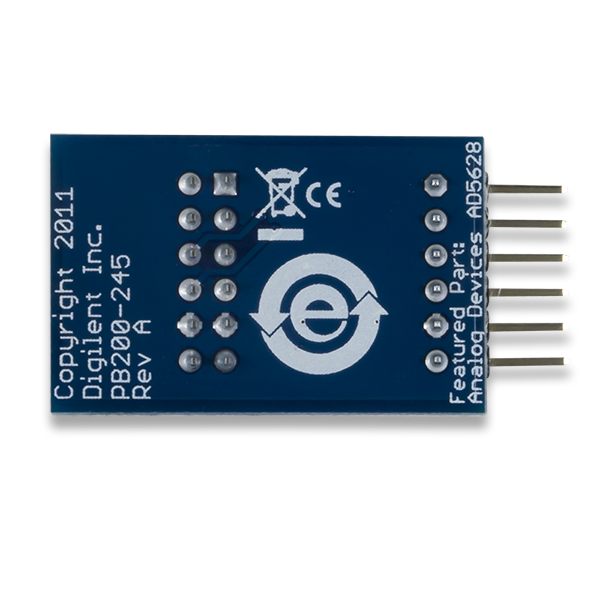

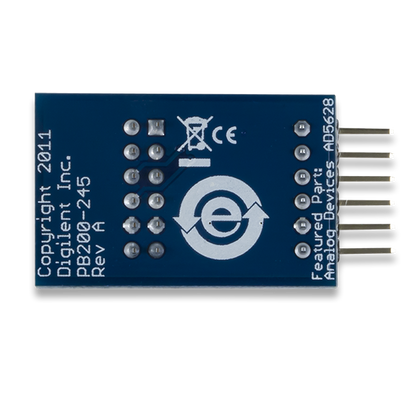

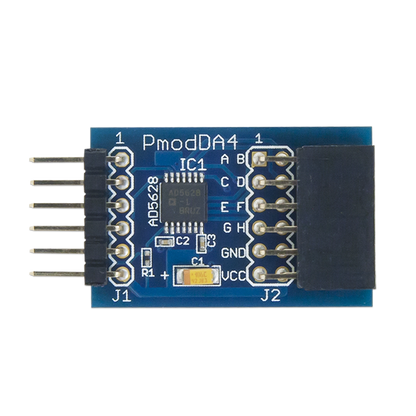

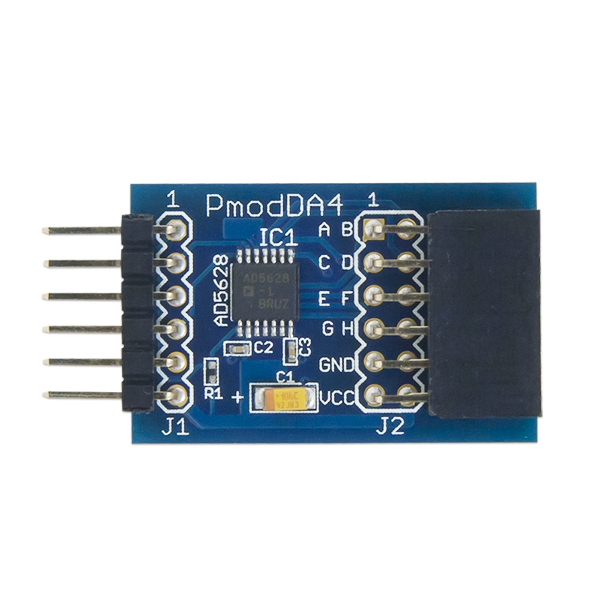

Pmod DA4: Eight 12-bit D/A Outputs

Description

The Pmod DA4 is an 8 channel 12-bit Digital-to-Analog Converter run via the Analog Devices AD5628. By communicating with the device through SPI, users may send different analog values on individual channels or output to all 8 channels simultaneously.

Features:

• Eight channel, 12-bit DAC

• Capable of eight simultaneous outputs

• High-speed DSP compatible

• Power-down function capability

• Low power consumption

• Small PCB size for flexible designs 1.2“ × 0.8” (3.0 cm × 2.0 cm)

• 6-pin Pmod connector with SPI interface

• Follows Digilent Interface Specification Type 2

• Example code available in resource center

What's Included:

• Pmod DA4
• Custom antistatic Pmod packaging
