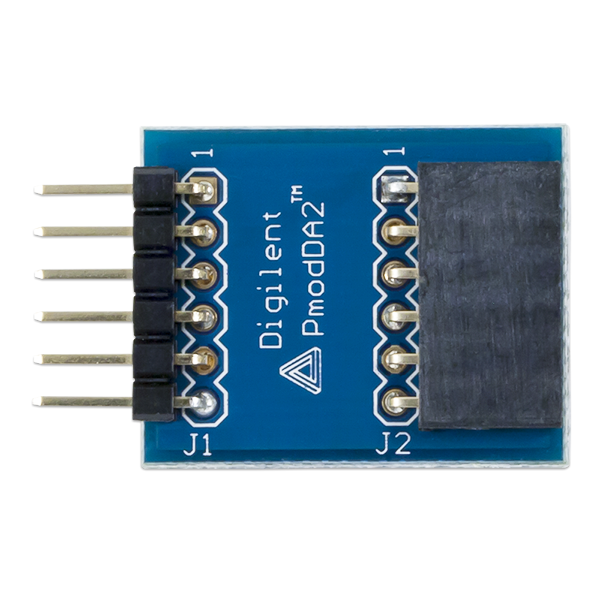

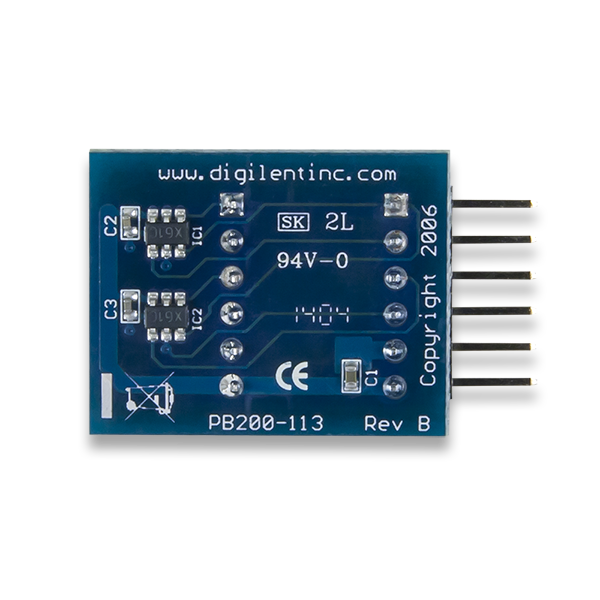

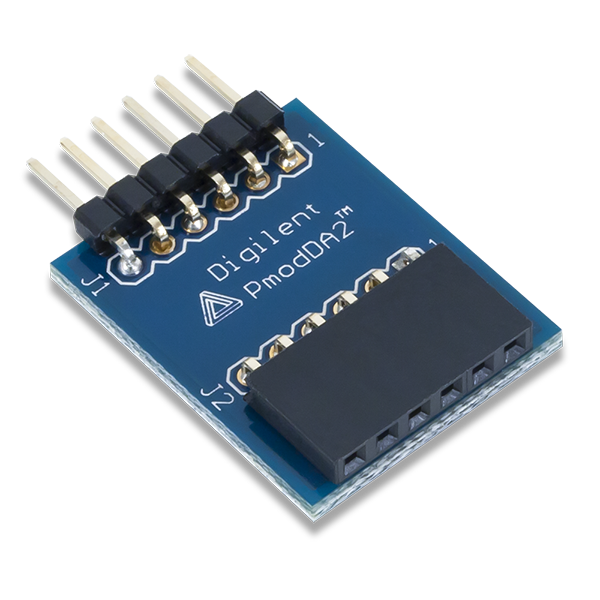

Pmod DA2: Two 12-bit D/A Outputs

Description

The Pmod DA2 is a 12-bit Digital-to-Analog converter powered by the Texas Instruments DAC121S101. As it is able to simultaneously convert two separate channels of digital information provided over an interface similar to SPI, users can easily compare the two reconstructed signals.

Features:

• 12-bit digital-to-analog converter

• Two simultaneous conversion channels

• Very low power consumption

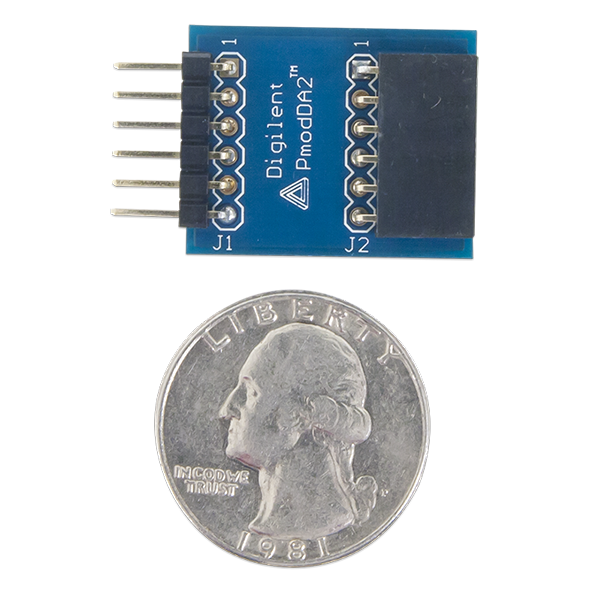

• Small PCB size for flexible designs 1.0“ × 0.8” (2.5 cm × 2.0 cm)

• 6-pin Pmod connector with GPIO interface

• Library and example code available in resource center

What's Included:

• Pmod DA2
• Custom antistatic Pmod packaging
