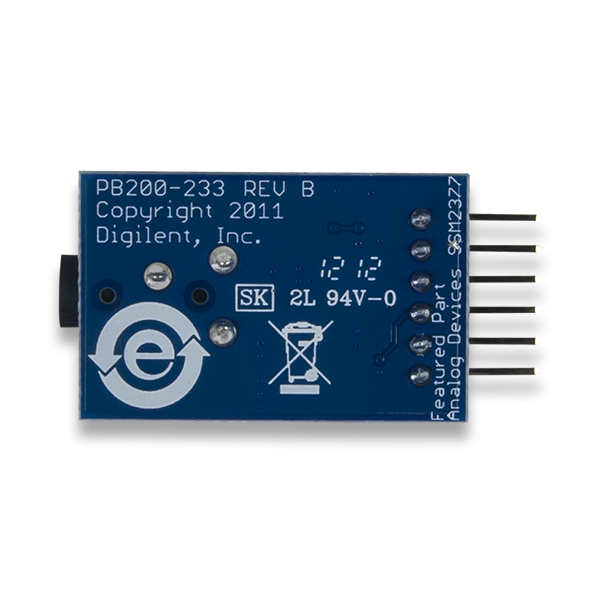

Pmod AMP2: Audio Amplifier

The Pmod AMP2 is a low power audio amplifier through the use of the Analog Devices SSM2377. With digital gain options and a pop-and-click feature, users are able to drive a variety of monophonic outputs by providing a digital or analog signal.

Features:

• Filterless, high efficiency audio amplifier

• Monophonic audio output

• Standard 1/8“ (0.32 cm) mono speaker jack

• Micropower shutdown mode

• Pop–and-click suppression

• Digital gain select

• Small PCB size for flexible designa 1.25” × 0.8“ (3.2 cm × 2.0 cm)

• 6-pin Pmod connector with GPIO interface

• Follows Digilent Pmod Interface Specification Type 1

What's Included:

• Pmod AMP2
• Custom antistatic Pmod packaging
