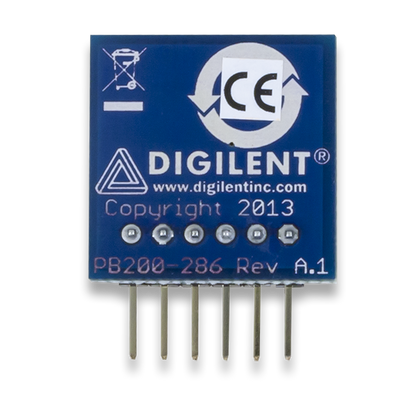

Pmod ALS: Ambient Light Sensor

Description

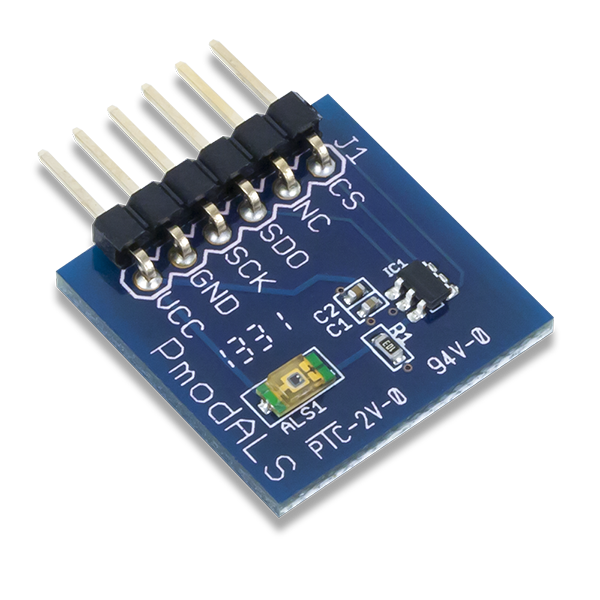

The Digilent Pmod ALS demonstrates light-to-digital sensing through a single ambient light sensor. Digilent Engineers designed this Pmod around Texas Instrument's ADC081S021 analog-to-digital converter and Vishay Semiconductor's TEMT6000X01.

Note:

The Pmod ALS is also featured in a fantastic product bundle, the Zybo Pmod Pack! This bundle was designed to expand project possibilities by utilizing a variety of peripheral modules perfectly suited for the Zybo Zynq-7000 FPGA.

Features:

• Simple ambient light sensor

• Convert light to digital data with 8-bit resolution

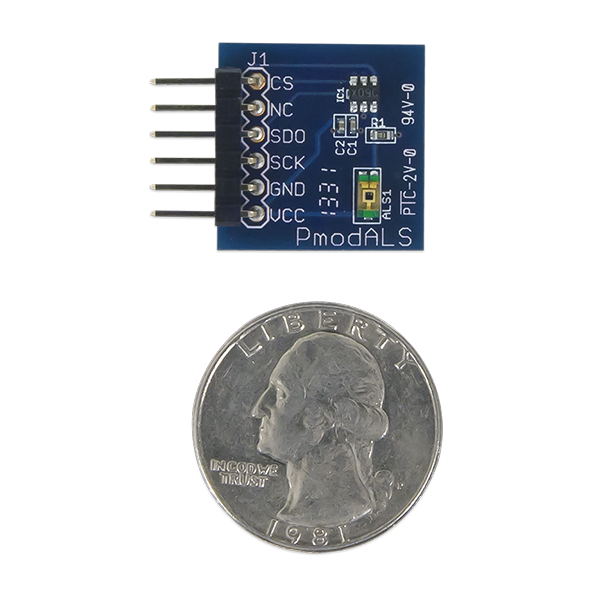

• Small PCB size for flexible designs 0.8 in × 0.8 in (2.0 cm × 2.0 cm)

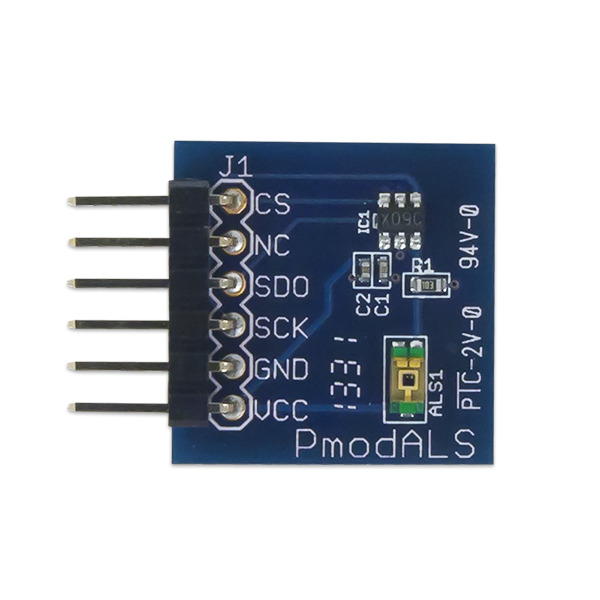

• 6-pin Pmod connector with SPI interface

• Follows Digilent Pmod Interface Specification Type 2

• Example code available in resource center

What's Included:

• Pmod ALS

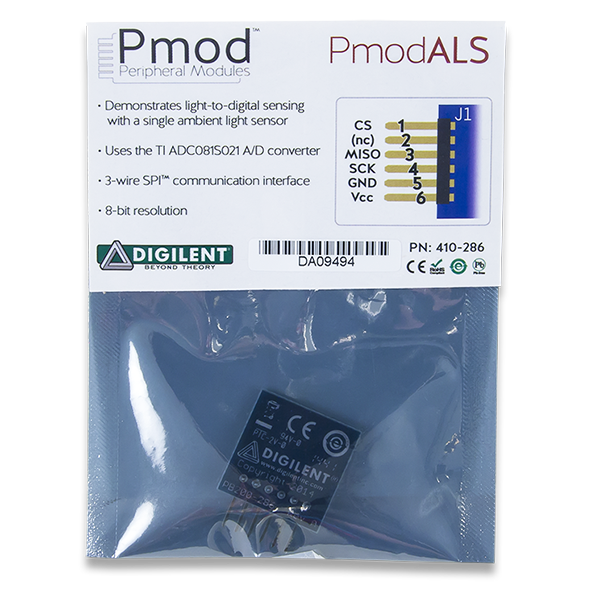

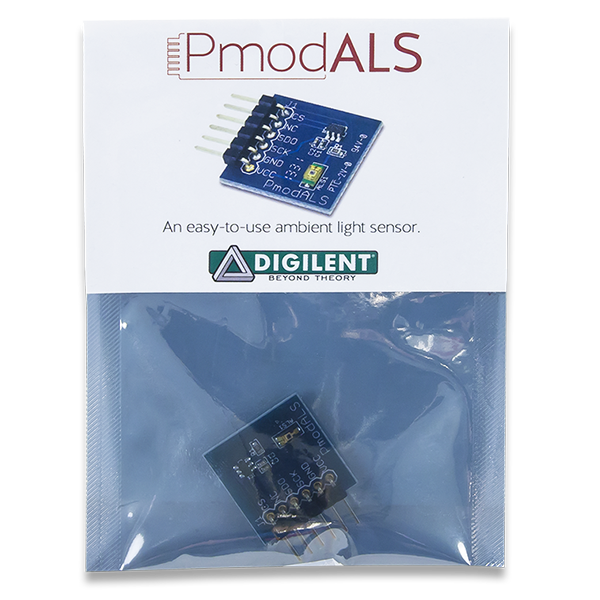

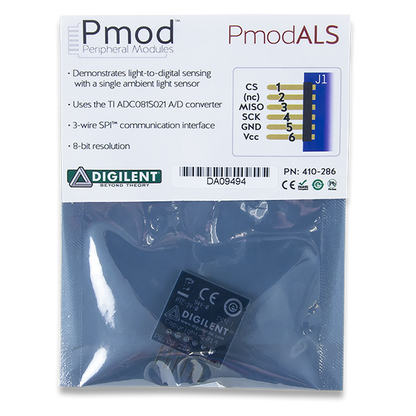

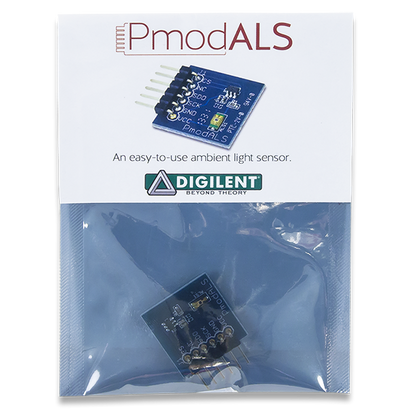

• Custom antistatic Pmod packaging
