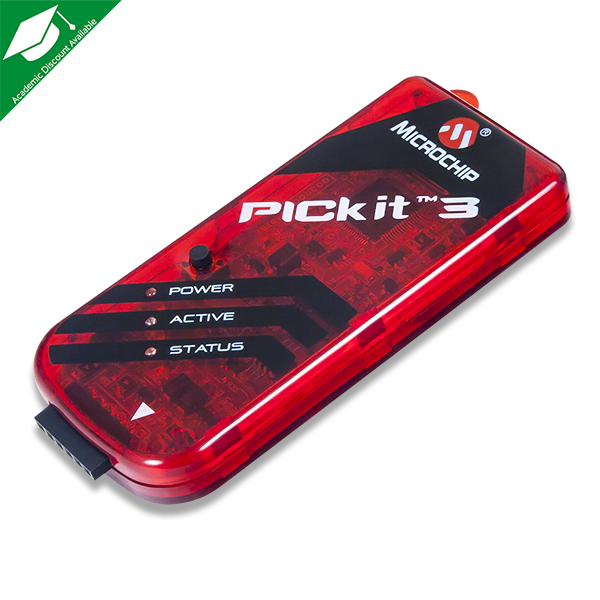

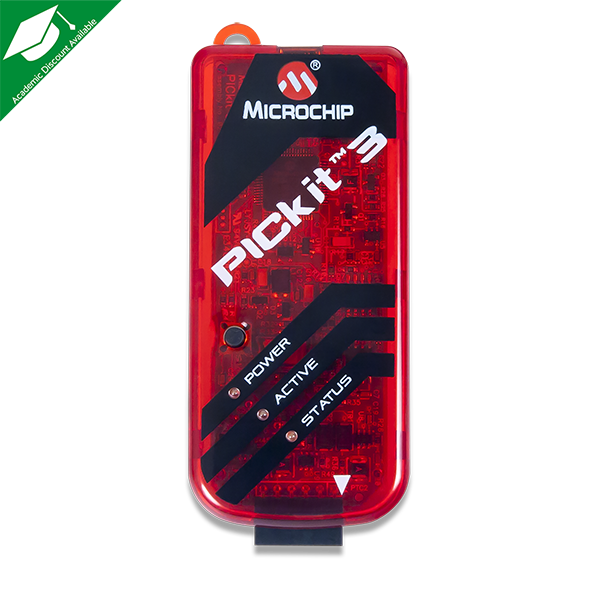

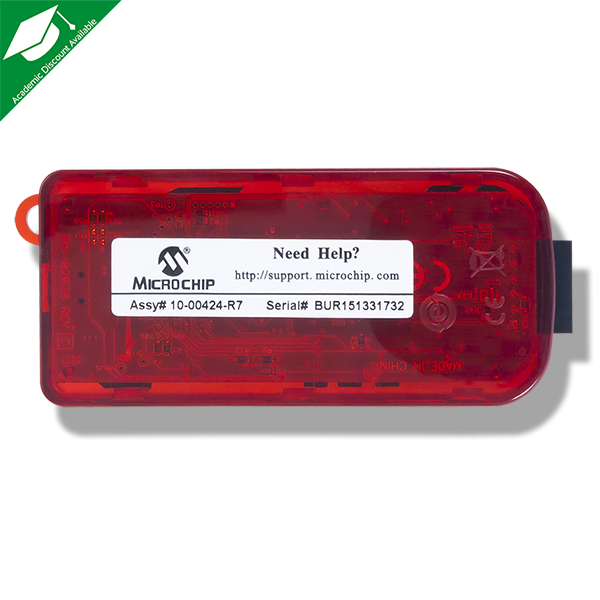

PICkit 3 In-circuit Debugger

Our goal is for every customer to be totally satisfied with their purchase. If this isn't the case, let us know and we'll do our best to work with you to make it right.

The MPLAB PICkit 3 allows debugging and programming of PIC and dsPIC Flash microcontrollers at a most affordable price point using the powerful graphical user interface of the MPLAB Integrated Development Environment (IDE). The MPLAB PICkit 3 is connected to the design engineer's PC using a full speed USB interface and can be connected to the target via an Microchip debug (RJ-11) connector (compatible with MPLAB ICD 2, MPLAB ICD 3 and MPLAB REAL ICE). The connector uses two device I/O pins and the reset line to implement in-circuit debugging and In-Circuit Serial Programming.

Features:

• USB (Full speed 12 Mbits/s interface to host PC)

• Real-time execution
• MPLAB IDE compatible (free copy included)
• Built-in over-voltage/short circuit monitor
• Firmware upgradeable from PC/web download
• Totally enclosed
• Supports low voltage to 2.0 volts (2.0v to 6.0v range)
• Diagnostic LEDs (power, busy, error)
• Read/write program and data memory of microcontroller
• Erase of program memory space with verification
• Freeze-peripherals at breakpoint
• Program up to 512K byte flash with the Programmer-to-Go

What's Included:

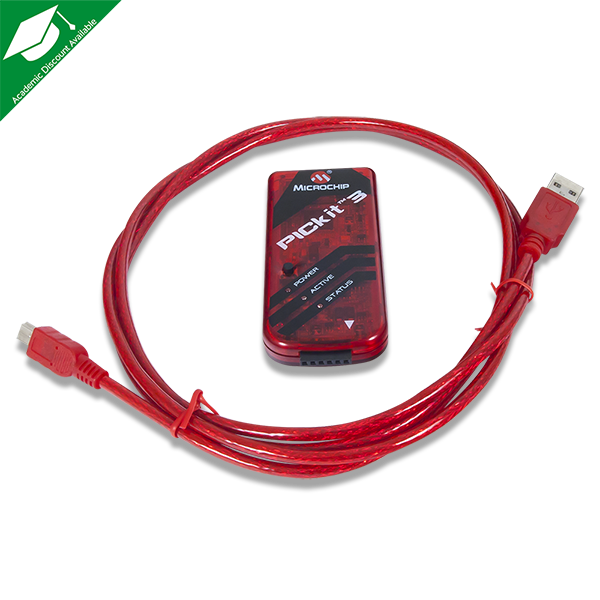

• PICkit 3 In-circuit Debugger

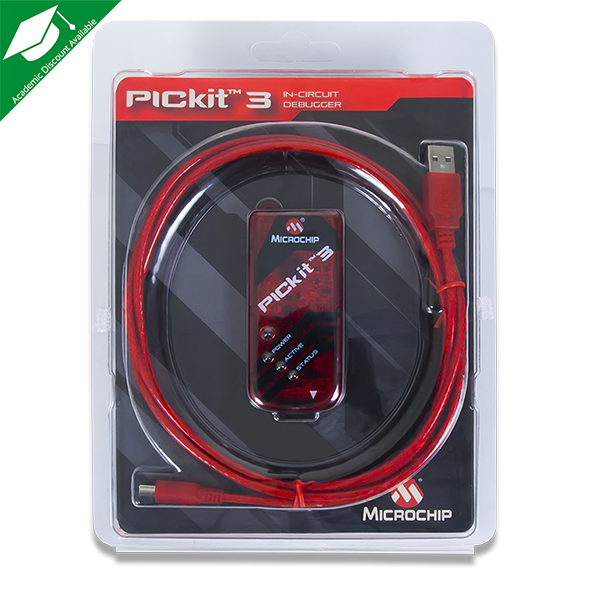

• Clamshell plastic packaging
• One USB A to mini B cable
• Free copy of MPLAB IDE
