Phidgets

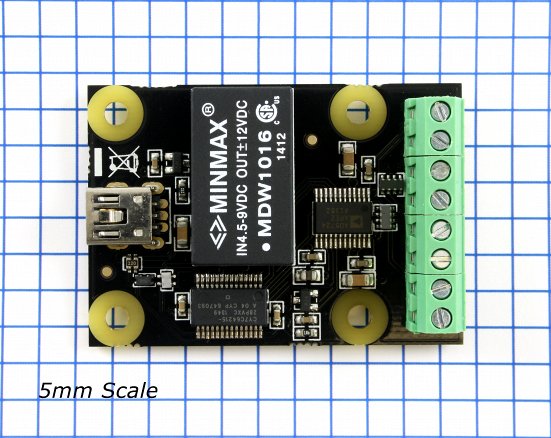

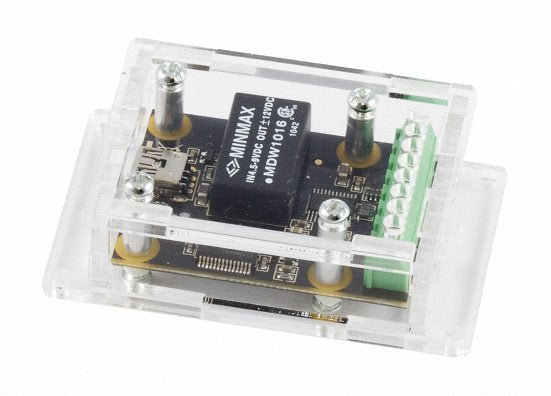

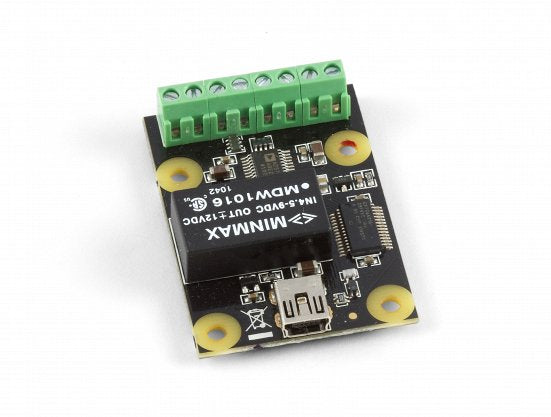

PhidgetAnalog 4-Output

PhidgetAnalog 4-Output

SKU:Phidgets-1002_0B

Regular price Rs. 9,779.00
Regular price Sale price Rs. 9,779.00
Sale Sold out
Taxes included.

1 in stock



Outputs a voltage from -10V to +10V.

The PhidgetAnalog 4-Output Produces a voltage over -10V to +10V at a maximum of ±20mA. If this current is exceeded an error will be thrown to notify that the voltage may have dropped below the setpoint. The voltage is produced with 12 bit resolution (4.8mV).

The board is not isolated and all 4 channels share a common ground.

All the power is supplied by via USB.

* The maximum output frequency is dependent on the speed of your system.

Product Specifications

Board Properties
Controlled By USB (Mini-USB)
API Object Name VoltageOutput
USB Voltage Min 4.6 V DC
USB Voltage Max 5.5 V DC
Current Consumption Min 55 mA
Current Consumption Max 300 mA
Available External Current (per channel) 20 mA
Recommended Wire Size 16 - 26 AWG
USB Speed Full Speed
Operating Temperature Min 0 °C
Operating Temperature Max 70 °C
Voltage Outputs
Number of Voltage Outputs 4
Output Impedance (Channel Enabled) 500 mΩ
Output Impedance (Channel Disabled) 4 kΩ
Voltage Output Max ± 10 V DC
Output Voltage Resolution (12 bit) 4.8 mV DC
Capacitive Load Stability 4 nF
Frequency Max Variable*
