Phidgets

pH Phidget

pH Phidget

SKU:Phidgets-ADP1000_0

Regular price Rs. 2,879.00
Regular price Sale price Rs. 2,879.00
Sale Sold out
Tax included.

1 in stock

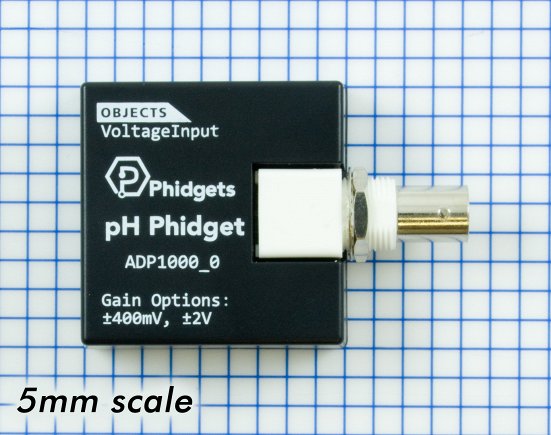

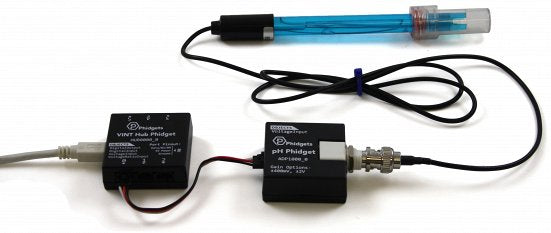

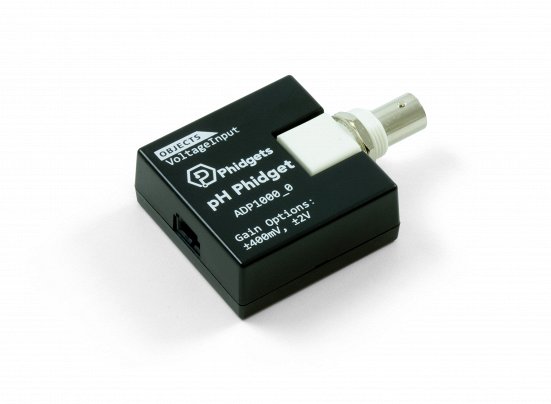

Connect a pH probe or any voltage-based probe that uses a BNC connector to your VINT port with this isolated adapter.

For applications involving water quality and chemistry, this module is a great addition to your collection. You can use this adapter to measure one pH or voltage-based probe that uses a BNC connector. The ADP1000 connects to a port on a VINT Hub. See the Connection & Compatibility tab for a list of hubs

Isolated for Stability

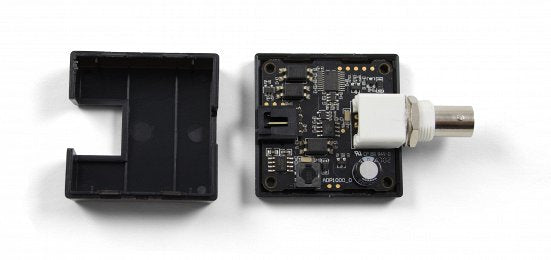

The VINT connector on this board is electrically isolated from the probe connection, which allows the probe to be used in a solution that is electrically noisy. For example, it could be used in a tank containing pumps and other electronic equipment without any problems.

Product Specifications

Sensor Properties
Controlled By VINT
±400mV Range
Voltage Resolution 40 μV DC
Measurement Error Max ± 0.1 %
Sampling Interval Max 60 s/sample
Sampling Interval Min 50 ms/sample
Voltage Noise 65 μV DC
PHSensor Mode
pH Resolution 0.0007
Measurement Error Max ± 0.1 %
Sampling Interval Max 60 s/sample
Sampling Interval Min 50 ms/sample
pH Noise 0.0011
±2V Range
Voltage Resolution 200 μV DC
Measurement Error Max ± 0.5 %
Sampling Interval Max 60 s/sample
Sampling Interval Min 50 ms/sample
Voltage Noise 235 μV DC
Voltage Sensor
Sensor Input Impedance 1 TΩ
Number of Voltage Inputs 1
Electrical Properties
Current Consumption Min 6 mA
Current Consumption Max * 10 mA
Physical Properties
Operating Temperature Min -40 °C
Operating Temperature Max 85 °C
View full details
