OAK-D Pro OV9782
Luxonis
OAK-D Pro OV9782
Description

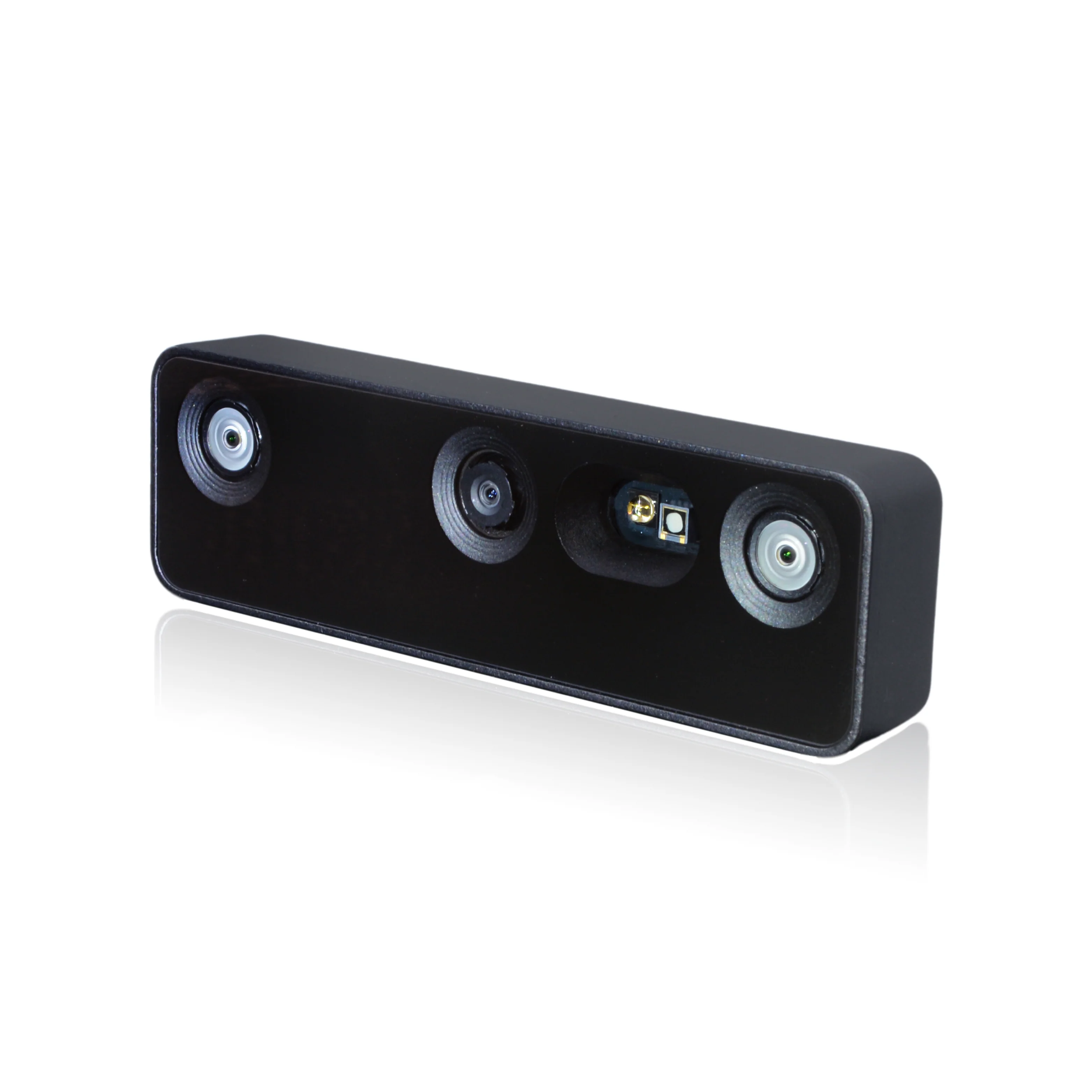

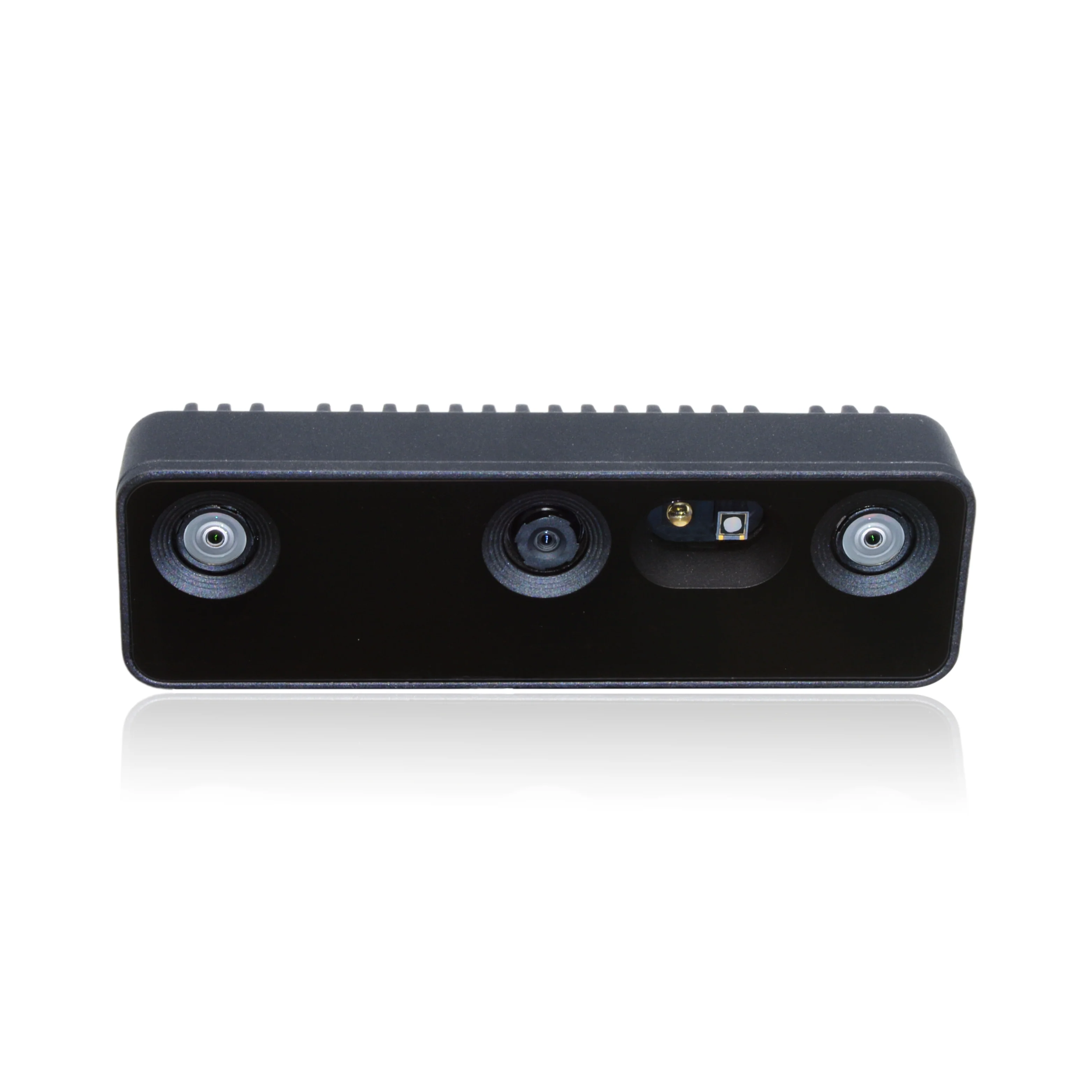

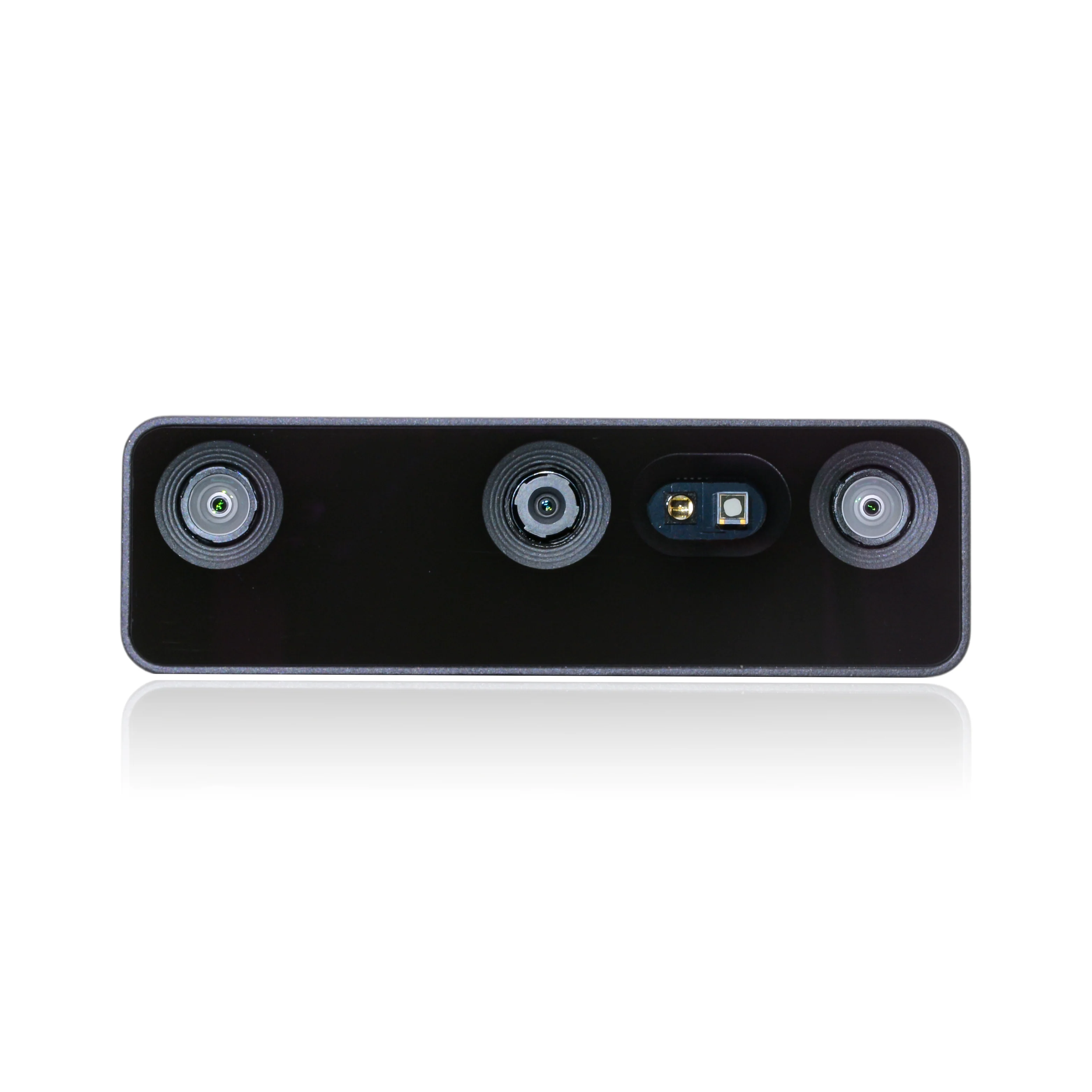

The OAK-D Pro OV9782 is an active stereo depth camera with a special OV9782 fixed-focus color sensor, built for robotic vision that needs reliable depth and night vision in low-light and texture-less environments. It uses USB-C for both power and USB3 connectivity.
Key highlights
- Active stereo – an Ams Belago 1.1 IR dot projector improves depth on low-visual-interest surfaces.
- Night vision – an IR illumination LED enables AI and CV in low-light or no-light environments.
- OV9782 color sensor – a special 1MP global-shutter color camera at up to 120 FPS.
- On-device AI – built on the RVC2 with 4 TOPS of processing power (1.4 TOPS for AI).
- Integrated IMU – BNO085 9-axis inertial measurement unit.
- Rugged and compact – aluminum housing with front Gorilla Glass, IP66-rated, weighing 91g.
Specifications
- Base line: 75 mm
- Ideal depth range: 70cm - 12m
- Power consumption: up to 7.5W

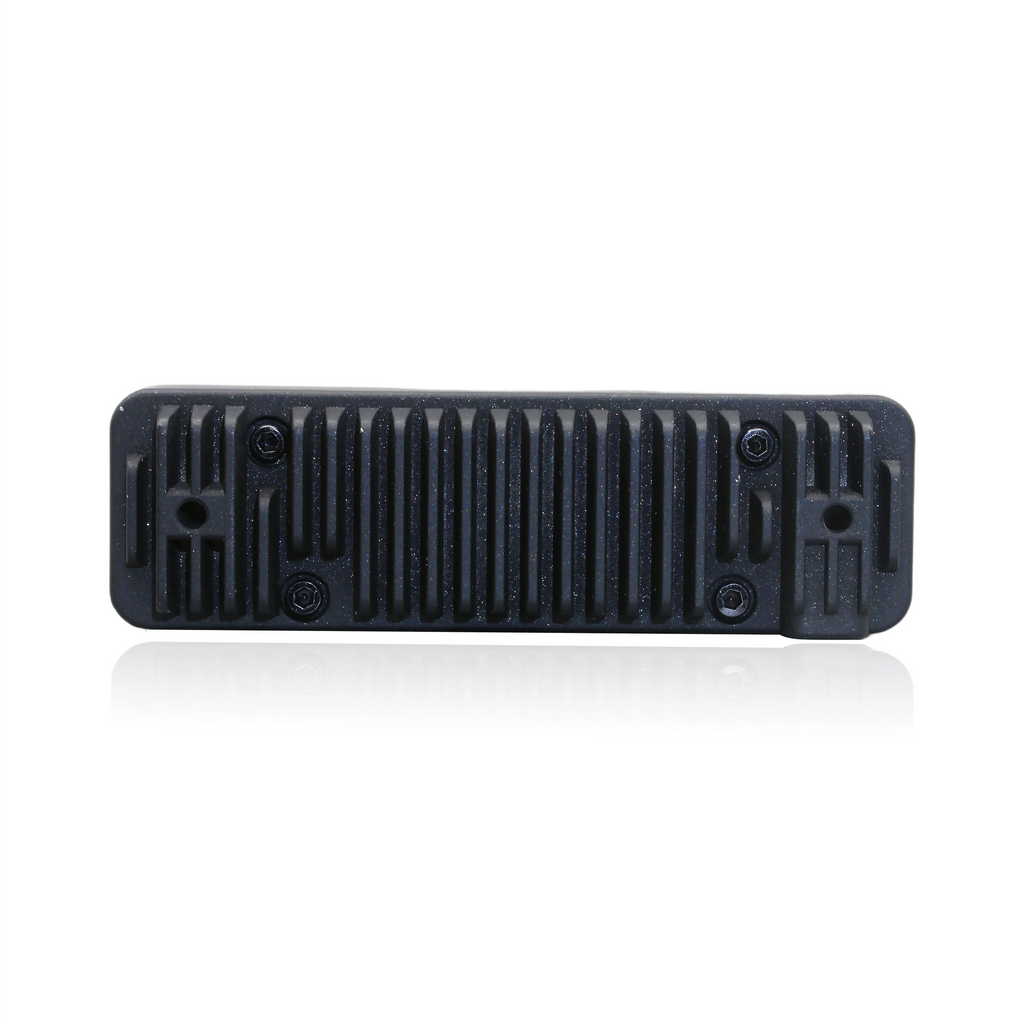

- Industrial grade aluminum housing with front Gorilla Glass
- 1/4" tripod mount and 75mm M4 Vesa mount
- Dimensions: 97x29.5x22.9 mm
- Weight: 91g
Sensor specifications
| Color camera | Stereo Pair | |||
|---|---|---|---|---|
| Variant | Auto-Focus | Fixed-Focus | OV9782 | All |
| Sensor | IMX378 (PY004) | IMX378 (PY052) | OV9782 (PY074) | OV9282 (PY044) |
| FOV (D/H/V) | 78° / 66° / 54° | 82° / 69° / 55° | 89.5° / 80° / 55° | 89.5° / 80° / 55° |
| Resolution | 12MP (4056x3040) | 12MP (4056x3040) | 1MP (1280x800) | 1MP (1280x800) |
| Focus | AF: 8cm - ∞ | FF: 50cm - ∞ | FF: 19.6cm - ∞ | FF: 19.6cm - ∞ |
| Max Framerate | 60 FPS | 60 FPS | 120 FPS | 120 FPS |
| Spectral range | Visible + 940nm | Visible + 940nm | Visible + 940nm | Visible + 940nm |
| Shutter Type | Rolling | Rolling | Global | Global |
| Sensor size | 1/2.3” | 1/2.3” | 1/4” | 1/4” |
| F-number | 1.8 ± 5% | 1.8 ± 5% | 2.0 ± 5% | 2.0 ± 5% |
| Effective Focal Length | 4.81mm | 4.81mm | 2.35mm | 2.35mm |
| Pixel size | 1.55µm | 1.55µm | 3.0µm | 3.0µm |
Stereo depth perception
- Ideal depth range: 70cm - 12m
- MinZ: ~20cm (400P and extended), ~35cm (400P OR 800P, extended), ~70cm (800P)
Depth accuracy: below 4m: below 2% absolute depth error; 4m - 7m: below 4%; 7m - 10m: below 6%.
Features
Classified as a Class 1 Laser Product under EN/IEC 60825-1, Edition 3 (2014). Active stereo uses the Ams Belago 1.1 dot-pattern IR illuminator, an IR illumination LED enables night vision, an integrated BNO085 9-axis IMU is included, and a single-state status LED indicates when the pipeline is running.
Power and connectivity
The camera offers USB-C (USB 3.2 Gen1, 5 Gbps) for power and connectivity. Total power consumption can reach ~7.5W with all features at full utilization; reducing pipeline FPS lowers it. If the host cannot supply enough power, the included Y-adapter connects an additional 5V source.
Operating characteristics
Shipped with an IP66-rated enclosure (the included screw-locking USB cable is required to maintain water resistance). Ambient operating temperature is -20°C to 50°C, and vibration tolerance is tested to the EN 60068-2-6:2008 standard.
In the box
- OAK-D-Pro camera
- Y-adapter
- Cable USB-CA-1m with dual-screw locking mechanism
Documentation & resources
Full hardware docs and the DepthAI SDK are available from Luxonis.
