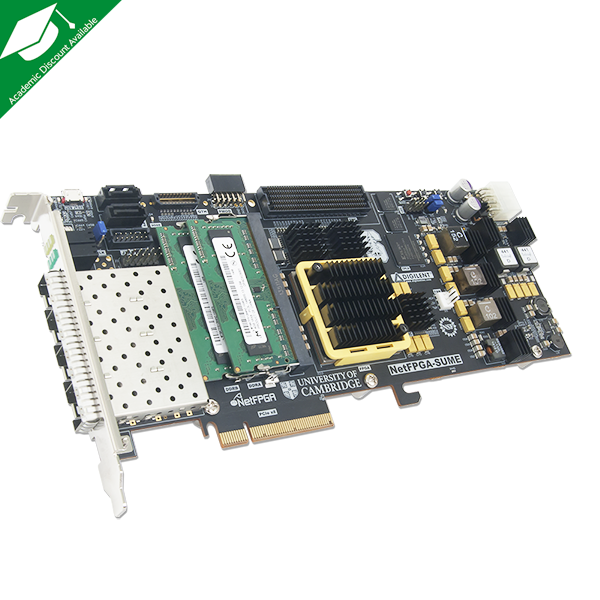

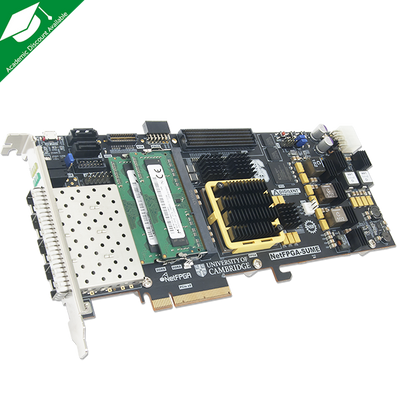

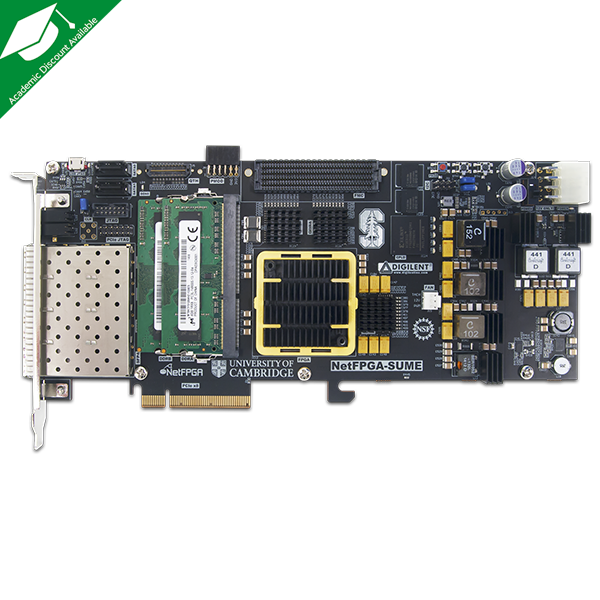

The NetFPGA-SUME board is the ideal platform for high-performance and high-density networking design. A collaborative effort between Digilent, the University of Cambridge, and Stanford University, the NetFPGA-SUME has everything you need to conduct cutting edge research and development of state-of-the-art networking systems.
The NetFPGA-SUME is an amazingly advanced board that features one of the largest and most complex FPGAs ever produced, a Xilinx®Virtex®-7 690T supporting thirty 13.1 GHz GTH transceivers. Four SFP+ 10Gb/s ports, five independent high-speed memory banks built from both 500MHzQDRII+ & 1866MT/s DDR3 SoDIMM devices, and an eight-lane third generation PCIe offer incredible throughput and can sustain a large number of high-speed data streams to the FPGA fabric and memory devices. Other features include the presentation of twenty transceivers in total on FMC and QTH expansion connectors, and SATA ports. The NetFPGA-SUME's main mission is to give students, researchers, and developers a state-of-the-art platform for networking, whether it's learning the fundamentals or creating new hardware and software applications. This board easily supports simultaneous wire-speed processing on the four 10Gb/s Ethernet ports, and it can manipulate and process data on-board, or stream it over the 8x Gen.3 PCIe interface and the expansion interfaces.
This board is supported by a large collection of free IP blocks available at www.netfpga.org.
Special pricing for NetFPGA contributors:
Limited numbers of specially discounted NetFPGA-SUME boards are reserved for projects that contribute significantly to the open-source goals of the NetFPGA project. To apply, please submit a brief abstract of your project to Digilent using the following link:
State clearly how your work contributes to the NetFPGA community. The requests will be evaluated by experts from Xilinx and the NetFPGA team. Successful applicants will be advised by Digilent on how to order their boards at the discounted price.
Features:
Xilinx Virtex-7 XC7V690T FFG1761-3
Xilinx CPLD XC2C512 for FPGA configuration
PCIe Gen3 x8 (8Gbps/lane)
Two 512Mbits Micron StrataFlash (PC28F512G18A)
Programming: Xilinx Vivado® Design Suite
Three x36 72Mbits QDR II SRAM (CY7C25652KV18-500BZC)
Two 4GB DDR3 SODIMM (MT8KTF51264Hz-1G9E1)
Micro USB Connector for JTAG programming and debugging (shared with UART interface)
One Micro USB cable for programming/UART
QTH Connector (8 RocketIO GTH transceivers)
Four SFP+ interface (4 RocketIO GTH transceivers) supporting 10Gbps
Two SATA-III ports
User LEDs and Push Buttons
One HPC FMC Connector (10 RocketIO GTH transceivers)
