Digilent

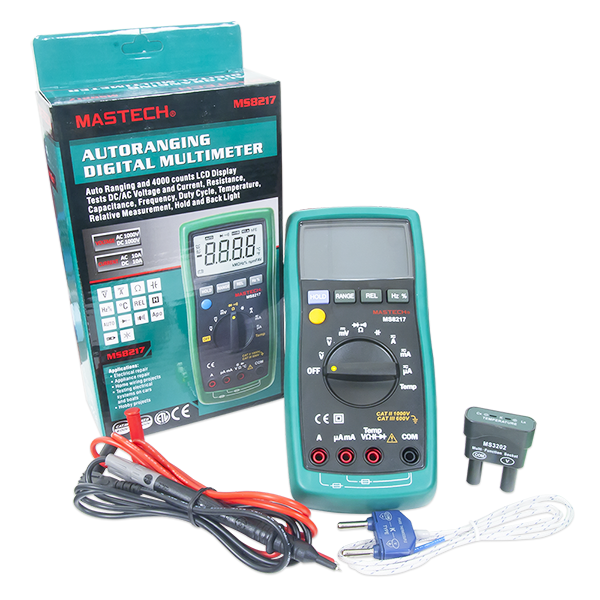

MS8217: Autorange Digital Multimeter

MS8217: Autorange Digital Multimeter

SKU:DG-480-001

Regular price Rs. 3,789.00
Regular price Sale price Rs. 3,789.00
Sale Sold out
Taxes included.

Out of stock

Built ruggedly for everyday use, the MS8217 digital multimeter is perfect for reliable & stable electrical testing.

Features:

  • 4000 counts
  • Diode test/Buzzer
  • Temperature Test
  • Frequency/Duty Cycle
  • Relative Measurement
  • Data Hold
  • Auto Power Off
  • Auto/Manual Ranging
  • Holster (secondary injection)
  • Mechanical/Electronic Protection System
  • In conformity with IEC 1010 CAT II 1000V
  • Convenient Fuse/Battery Change Design
  • Battery Life up to 500 Hours

Specifications:

  • DC Voltage range: 0.1mV-1000V
  • DC Voltage accuracy: ± (0.5%+3digits)
  • DC Current range: 0.1 μ A-10A
  • DC Current accuracy: ± (1.5%+3digits)
  • AC Voltage range: 0.1mV-1000V
  • AC Voltage accuracy: ± (1.0%+3digits)
  • AC Voltage Freq. response: 40Hz-500Hz
  • AC Current range: 0.1 μ A-10A
  • AC Current accuracy: ± (1.5%+3digits)
  • AC Current Freq. response: 40Hz-200Hz
  • Resistance range: 0.1Ω-40MΩ
  • Resistance accuracy: ± (0.5%+2digits)
  • Capacitance range: 0.01nF-100μF
  • Capacitance accuracy: ± (3.0%+5digits)
  • FREQUENCY/DUTY CYCLE Range: 10Hz-100kHz
  • FREQUENCY/DUTY CYCLE Accuracy: ± (0.1%+3digits)
  • TEMPERATURE Range: -55°C-1000°C
  • TEMPERATURE Accuracy: ± (2.0%+1°C)

What's Included

  • Autorange Ditigal Multimeter (MS8217)
  • Mastech® protective cardboard box
  • Two detachable test leads with shrouded plugs and capped tips
  • Multi-function socket
  • K-Type temperature probe
  • User manual
