MikroElektronika

CAN SPI click 3.3V

CAN SPI click 3.3V

SKU:MIKROE-986

Regular price Rs. 2,209.00
Regular price Sale price Rs. 2,209.00
Sale Sold out
Tax included.

Out of stock

Description

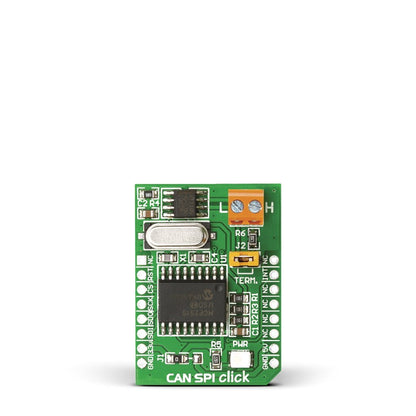

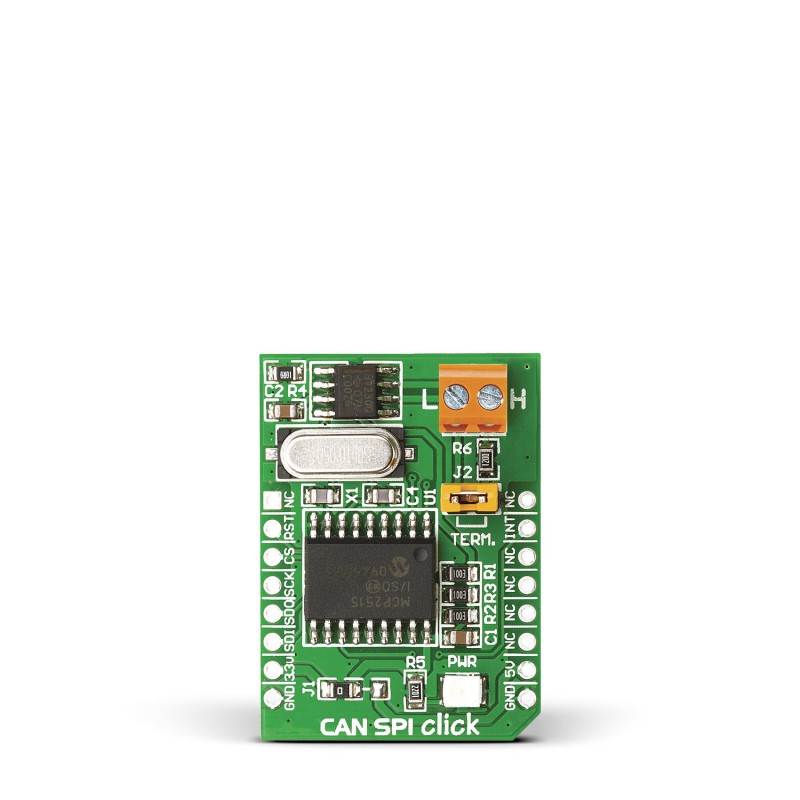

CAN SPI click 3.3V is an accessory board in mikroBUS form factor. It is the best solution to add CAN connectivity to your microcontroller with SPI interface. Board features SN65HVD230 can transciever circuit which provides CAN serial communication physical layer in accordance with the ISO 11898 standard. It is designed for operation in especially-harsh environments, these devices feature cross-wire protection, loss-of-ground and overvoltage protection, overtemperature protection, as well as wide common-mode range. Board is designed to use 3.3V power supply only.

Specification

Type CAN
Applications CAN SPI board is ideal for industrial automation, home automation as well as in automotive and mobile machine industry
On-board modules SN65HVD230 can transciever
Key Features Low-Current Standby Mode 370 μA Typical, Supports 1 Mb/s operation
Key Benefits Board features screw terminals for easier connectivity, power LED and node termination jumper. Implements ISO-11898 standard physical layer requirements
Interface GPIO,SPI
Input Voltage 3.3V or 5V
Compatibility mikroBUS
Click board size M (42.9 x 25.4 mm)

Downloads

CAN SPI click 3.3V User Manual

CAN SPI click 3.3V Examples
