ETH Click

ETH Click

SKU:MIKROE-971

Regular price Rs. 2,519.00
Regular price Sale price Rs. 2,519.00
Sale Sold out
Tax included.

Out of stock

Description

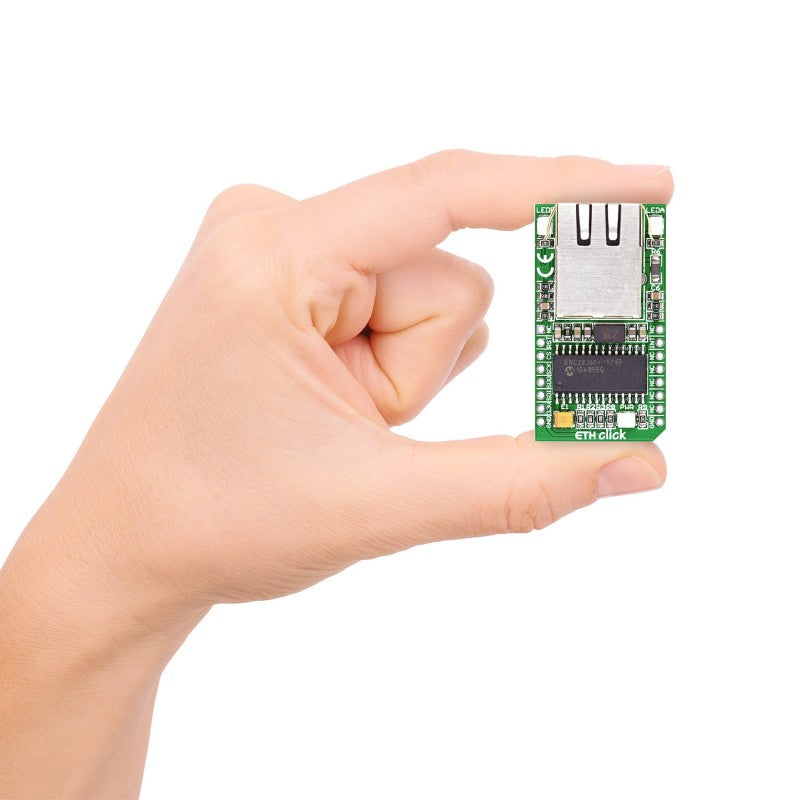

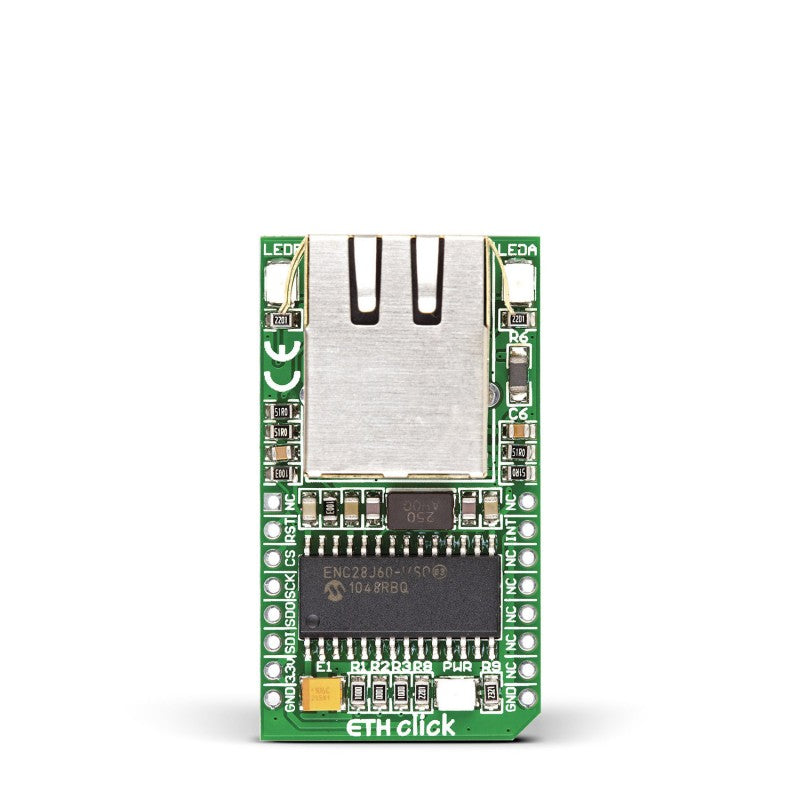

ETH Click is an accessory board in mikroBus™ form factor. It features ENC28J60, a 28-pin, 10BASE-T stand alone Ethernet Controller with an on-board MAC & PHY, 8K Bytes of Buffer RAM and SPI serial interface. Chip supports programmable automatic retransmit on collision and automatic rejection of erroneous packets. Board contains standard RJ-45 connector, transmit, receive and power LEDs. On-board crystal oscillator ensures stable operation. Board is designed to use 3.3V power supply only.

Specification

Type Ethernet
Applications Target applications include VoIP, Industrial Automation, Building Automation, Home Control, Security and Instrumentation
On-board modules ENC28J60 28-pin 10BASE-T stand alone Ethernet Controller
Key Features 8 Kbyte Transmit/Receive Packet Dual Port Buffer SRAM
Key Benefits Programmable Automatic Retransmit on Collision. Programmable Automatic Rejection of Erroneous Packet
Interface GPIO,SPI
Input Voltage 3.3V
Compatibility mikroBUS
Click board size M (42.9 x 25.4 mm)

Downloads

ETH Click User Manual

ETH Click Examples
