MikroElektronika
mikroXMEGA Board
mikroXMEGA Board
SKU:MIKROE-580
Regular price
Rs. 2,519.00
Regular price
Sale price
Rs. 2,519.00
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Share

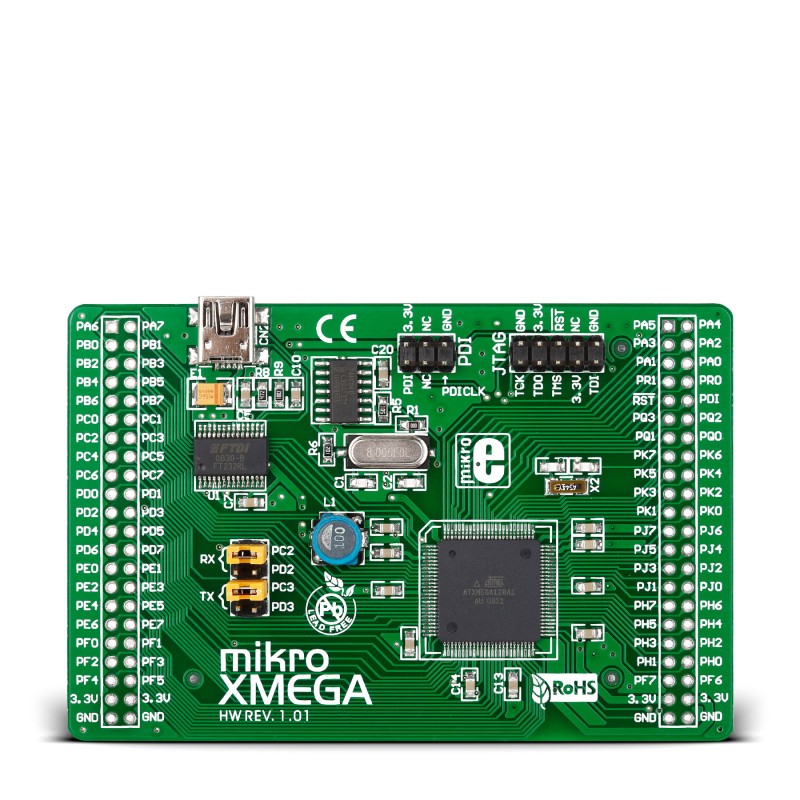

mikroXMEGA Board is a complete solution for fast and simple development of embedded applications using new Atmel® ATxmega128A1 device connected to 8Mhz oscillator. Board comes with bootloader, so it can be program over USB-UART connection. It also features connectors for external programmer and JTAG, thus enabling in-circuit debugging and firmware programming. Every pin of the on-board device can be connected with external circuits using connection pads. Board is designed to use 3.3V power supply only. Be careful to use voltage translators on communication lines when connecting it to 5V systems.
Specification
Applications | Board is used as complete solution for embedded applications using Atmel ATxmega128A1 device connected to 8Mhz oscillator. |
Architecture | AVR (8-bit) |
MCU | ATxmega128A1 |
MCU speed | 32MIPS, 32MHz |
MCU Memory | 128KB of Flash |
On-board modules | USB-UART module |
Programming | Preprogrammed with UART bootloader. Also features JTAG and PDI connector for external programmer/debugger |
Input Voltage | 3.3V |
