PICPLC16 v6

PICPLC16 v6 is a PLC system with 16 opto-inputs and 16 relays (for currents up to 16A). With it, you can develop PIC-based industrial, home or office automation devices the easy way—PICPLC16 has all the MikroElektronika features you’re familiar with: onboard programmer and mikroICD debugger, clear silkscreen markings, and many onboard modules.

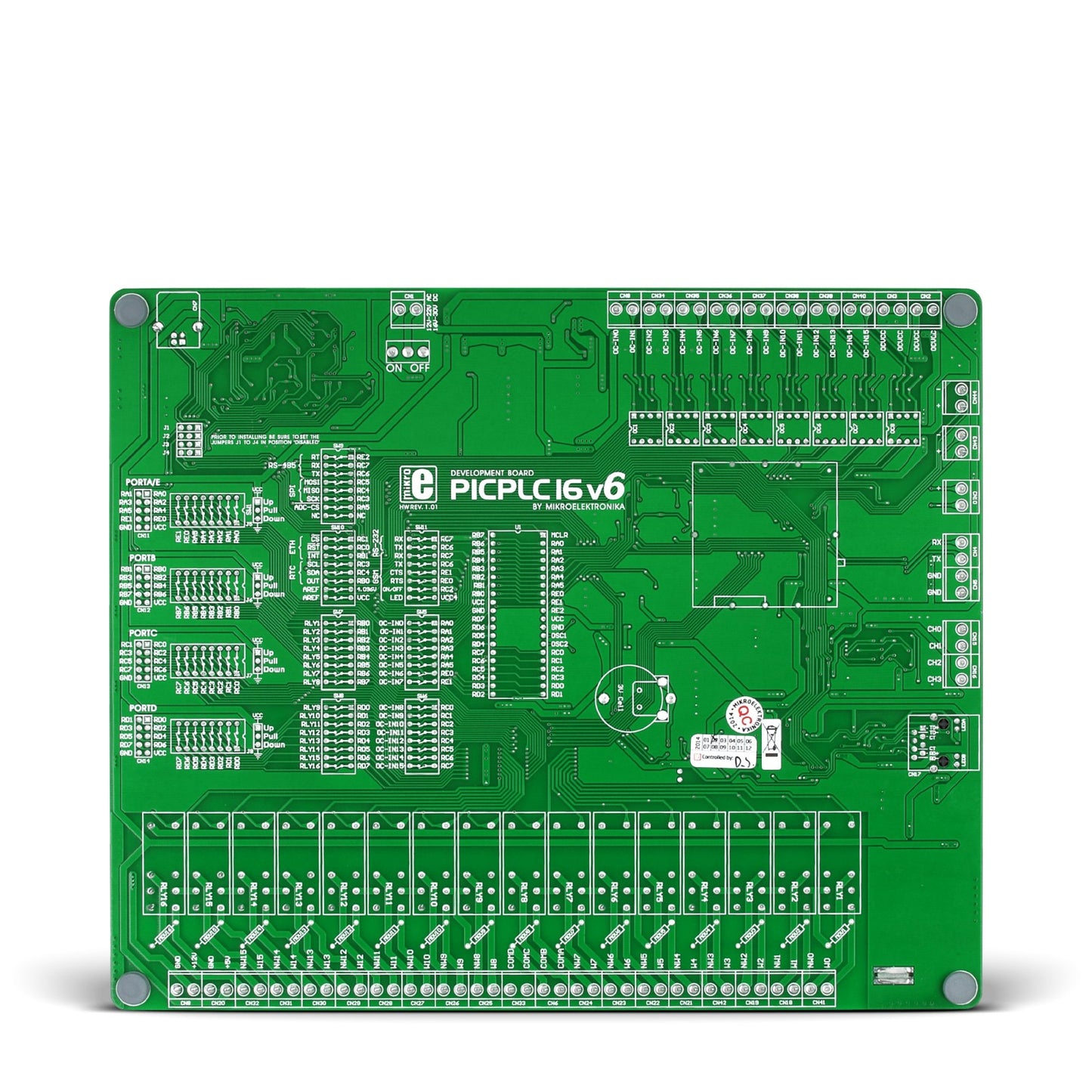

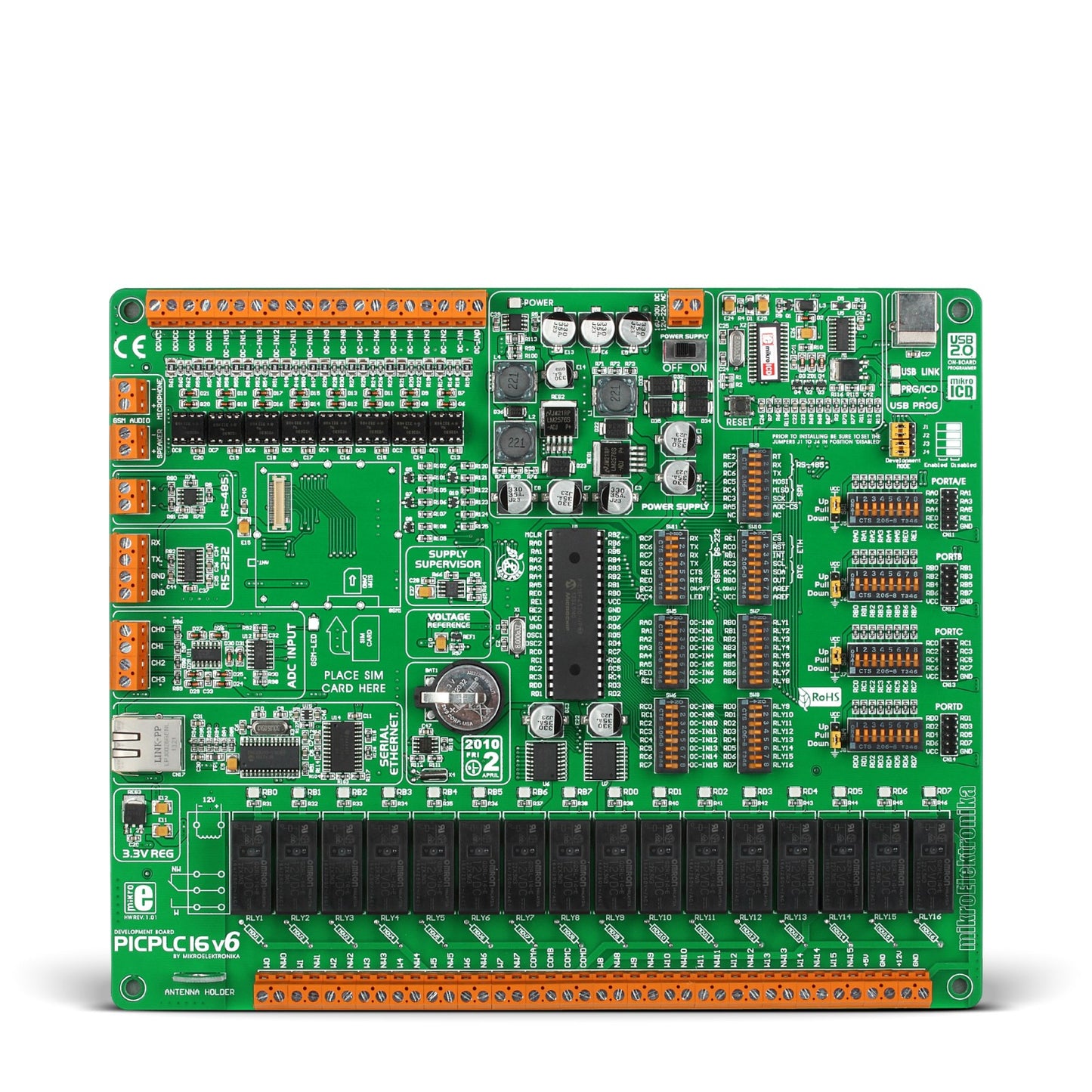

picplc v6 board

PICFlash™ with mikroICD™

PICFlash™ is a fast USB 2.0 programmer with mikroICD™ hardware In-Circuit Debugger. Smart engineering allows mikroProg™ to support all 8-bit Microchip® PIC® microcontrollers. Outstanding performance and easy operation are among it’s top features.

picplc mikroicd

The mikroICD™ debugger enables you to execute your program on the host microcontroller and view variable values, Special Function Registers (SFR), RAM, CODE and EEPROM memory along with the code execution on hardware. Whether you are a beginner, or a professional, this powerful tool with a convenient set of commands will enable you to track down bugs quickly. mikroICD™ is one of the fastest, and most reliable debugging tools on the market.

Modules

Ethernet on-board

ethernet on-board

The Serial Ethernet connector lets you connect your PLC system to a network.

RTC

rtc

The RTC module with its own battery will keep precise time for the system.

Antenna holder

antenna holder

The antenna holder fixes the external GSM antenna in place.

Relays

relays

16 relays for currents of up to 16 amps line the side of the board.

GSM Connector

gsm connector

GSM connector for adding telecommunication capabilities to your PLC.

GSM Audio

gsm audio

Speaker and microphone connectors are for the GSM module.

Package Contains

  • Damage resistant protective box
  • PICPLC16 v6 antistatic bag
  • USB cable
  • User Manual and Board Schematic

Specification

Applications PICPLC16 v6 is a PLC system with 16 opto-inputs and 16 relays (for currents up to 16A). With it, you can develop PIC-based industrial, home or office automation devices the easy way
Architecture PIC (8-bit)
MCU Comes with PIC18F4520
On-board modules 16 relays (for currents of up to 16 amps), A/D converter MCP3204, Real-time clock (RTC DS1307), RS-232 MAX202C IC, RS485, HP2630 optocouplers
Programming On-Board programmer for PIC
Expandability GSM/GPRS connector (for Telit’s GL865-QUAD GSM module), Antenna holder, 1 x IDC10 header for each PORT
Integration Mounting holes

View full details
