MUX 2 click

How does it work?

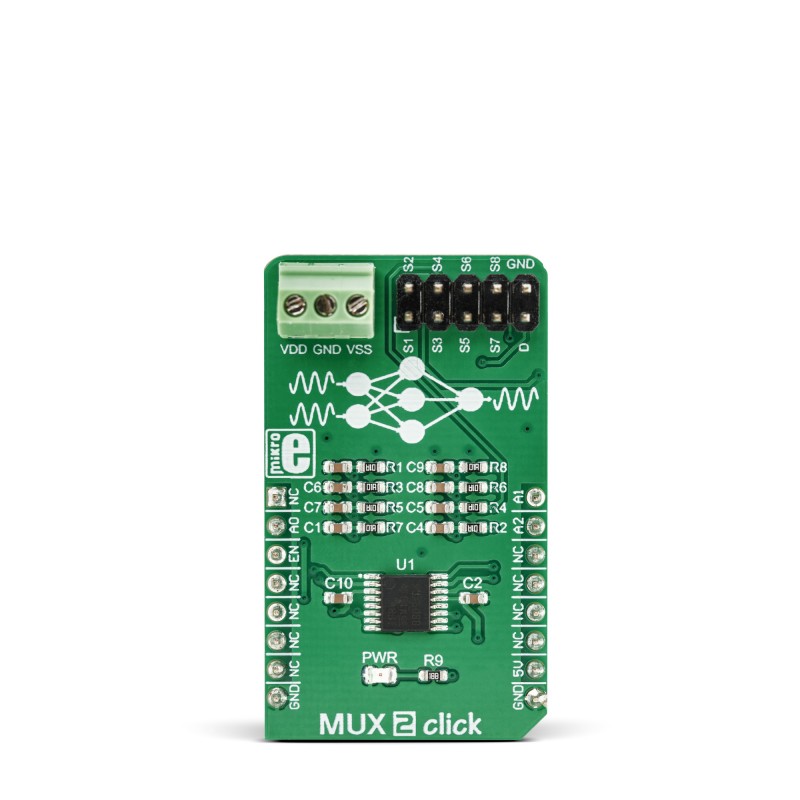

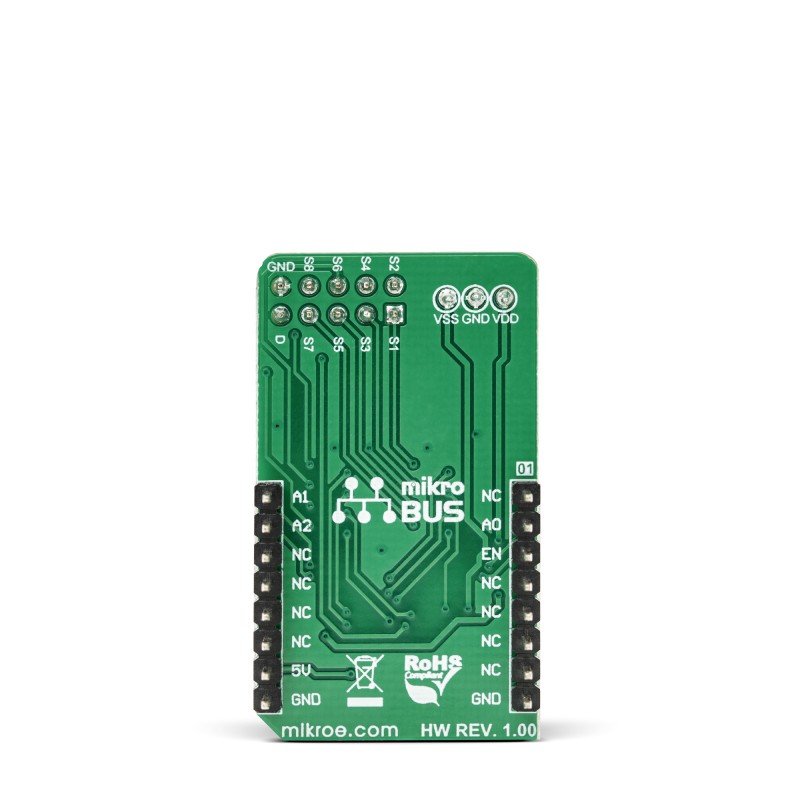

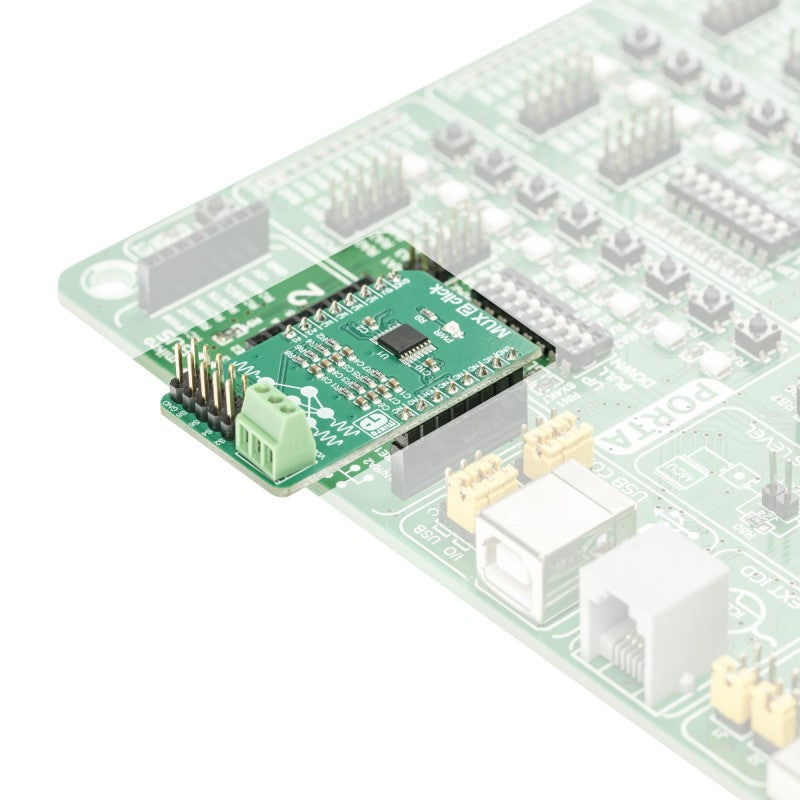

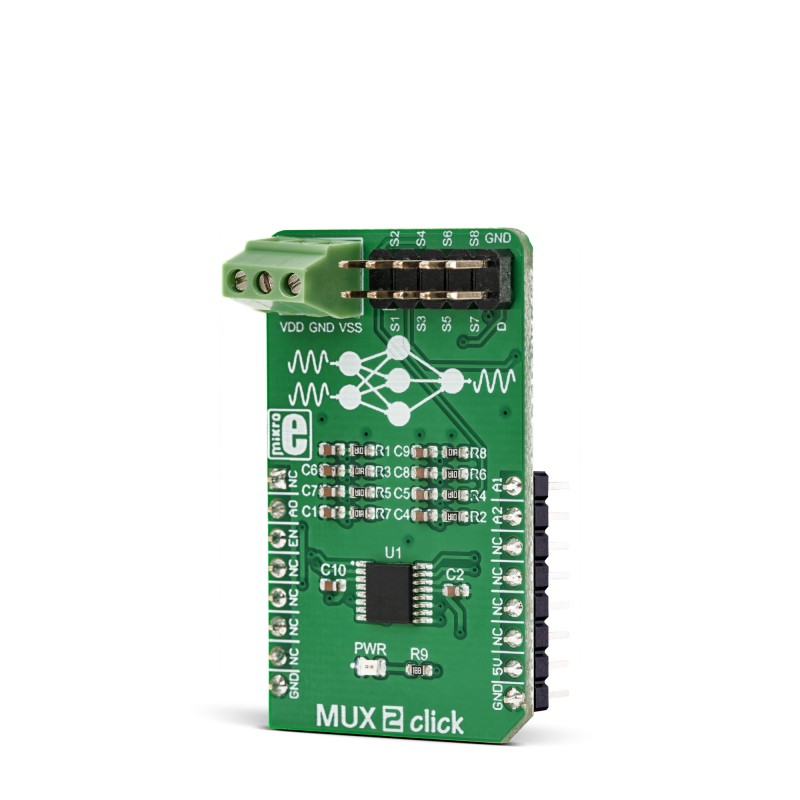

MUX 2 click is equipped with the MUX508, a precise analog multiplexing IC, produced by Texas Instruments. The MUX508 can be used with a wide range of power supplies. It can handle both dual and single power supplies, as well as the symmetrical and non-symmetrical ones. This allows it to be used in a very wide range of different applications. Four control pins are used to switch one of eight inputs to a single output. Control pins labeled as A0, A1, and A2 are routed to the mikroBUS™ and can be operated by both 3.3V and 5V MCUs. The fourth control pin is labeled as EN pin, and it is used to enable the internal multiplexing switches of the IC, when is set to a HIGH logic level (it is active HIGH). A0, A1, and A2 pins are routed to RST, PWM, and INT pins of the mikroBUS™ respectively, while the EN pin is routed to the CS pin on the mikroBUS™.

The MUX508 IC is targeted towards working with both bipolar and unipolar single-ended inputs. Each input is labeled as S1 to S8. When a specific channel is selected by using the A0 to A2 pins, it will be switched to the output pin, labeled as D. For the improved stability, each pin is equipped with the 100nF parallel capacitor and 100? series resistance. The input and the output signal pins are routed to the standard 2.54mm pitch 2x5 pins header on the Click board™.

The ultra-low leakage current ensures that there is no signal interference from the inputs that are not selected by the A0, A1, and A2 pins. A low crosstalk also ensures that the signal on one channel remains clean of interferences caused by other channels. To prevent any two inputs to be switched at the output at the same time, a break-before-make switching action is utilized. This ensures a reliable operation of the IC and the Click board™ itself.

MUX 2 click does not use the power from the mikroBUS™ power rails, except for the LED indicator. Instead, a three-pole screw terminal is used to connect an external power supply. Having in mind the minimum input voltage of 10V or ±5V, a power supply should be connected to this terminal before operating the Click board™. The input and output signals can be connected via the 2x5 pins header. As mentioned before, the MUX508 IC supports rail-to-rail operation. Independent power supply input allows the user to work with a wide range of signal amplitudes, depending on the application requirements, as long as the power supply stays within the limits.

More information about the MUX508 can be found in the attached datasheet. However, the Click board™ comes equipped with a library that contains easy to use functions and a usage example that may be used as a reference for the development.

Specifications

Pinout diagram

This table shows how the pinout on MUX 2 Click corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).

Notes	Pin					Pin	Notes
	NC	1	AN	PWM	16	A1	Control pin 1
Control pin 0	A0	2	RST	INT	15	A2	Control pin 2
Chip Enable	EN	3	CS	RX	14	NC
	NC	4	SCK	TX	13	NC
	NC	5	MISO	SCL	12	NC
	NC	6	MOSI	SDA	11	NC
	NC	7	3.3V	5V	10	5V	Power Supply
Ground	GND	8	GND	GND	9	GND	Ground

Onboard settings and indicators

MUX 2 click electrical specifications

Software support

We provide a library for the MUX 2 click on our LibStock page, as well as a demo application (example), developed using MikroElektronika compilers. The demo can run on all the main MikroElektronika development boards.

Library Description

The library includes function for set current active mux channel and function for enable or disble mux device.

Key functions:

• void mux2_activeMuxChannel(uint8_t ch) - Functions for set active MUX channel

• void mux2_deviceEnable() - Functions for enable MUX device

Examples description

The application is composed of the three sections :

• System Initialization - Sets RST pin, CS pin, PWM pin and INT pin as OUTPUT
• Application Initialization - Initialization driver init end enable device
• Application Task - (code snippet) - Sets the current active channel. Changes the channel every 5 sec.

void applicationTask()
{
mux2_activeMuxChannel(_MUX2_CHANNEL_S1);
Delay_ms( 5000 );
mux2_activeMuxChannel(_MUX2_CHANNEL_S2);
Delay_ms( 5000 );
mux2_activeMuxChannel(_MUX2_CHANNEL_S3);
Delay_ms( 5000 );
mux2_activeMuxChannel(_MUX2_CHANNEL_S4);
Delay_ms( 5000 );
mux2_activeMuxChannel(_MUX2_CHANNEL_S5);
Delay_ms( 5000 );
mux2_activeMuxChannel(_MUX2_CHANNEL_S6);
Delay_ms( 5000 );
mux2_activeMuxChannel(_MUX2_CHANNEL_S7);
Delay_ms( 5000 );
mux2_activeMuxChannel(_MUX2_CHANNEL_S8);
Delay_ms( 5000 );

}

The full application code, and ready to use projects can be found on our LibStock page.

Other mikroE Libraries used in the example:

• GPIO

Additional notes and information

Depending on the development board you are using, you may need USB UART click, USB UART 2 click or RS232 click to connect to your PC, for development systems with no UART to USB interface available on the board. The terminal available in all MikroElektronika compilers, or any other terminal application of your choice, can be used to read the message.
