SigFox 2 Click (NA & Asia)

SigFox 2 Click (NA & Asia)


Regular price Rs. 2,629.00
Regular price Sale price Rs. 2,629.00
Sale Sold out
Tax included.

Out of stock

Activate your Sigfox 2 click by using the ID and PAC numbers which you can find on the package box of your SigFox Click board™.

How does it work?

The Sigfox network is a star topology network, specifically designed for the Internet of Things (IoT) applications. It uses an ultra-narrow frequency band, able to penetrate through the objects and cover large distances, making it a perfect choice for various industry-specific applications, such as the sensors networking in agriculture.

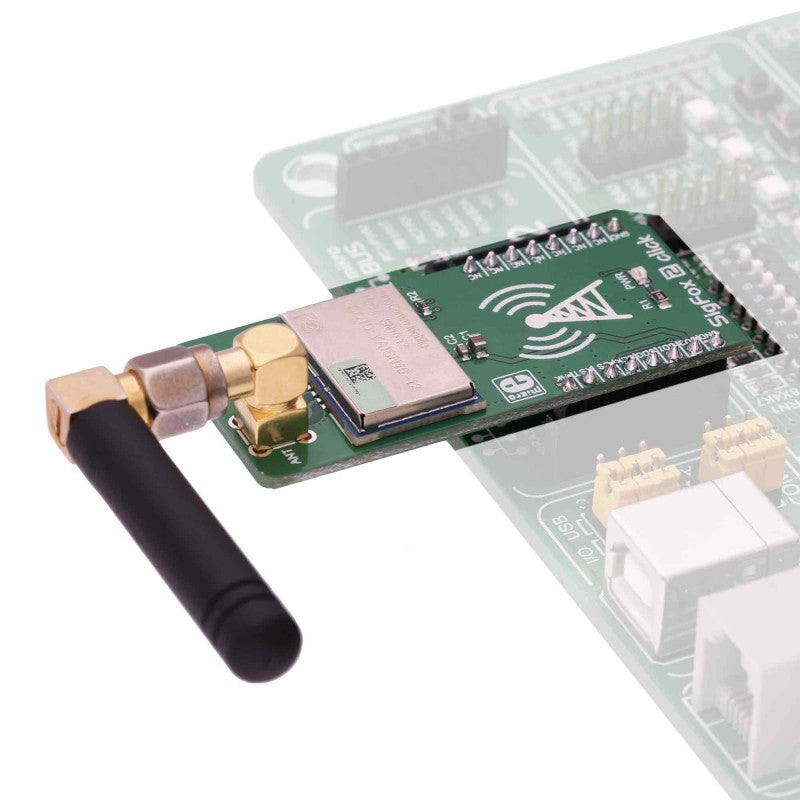

This Click board™ offers all that is needed to integrate a Sigfox network connectivity into a design. Besides the SN10-12 module itself, it offers the industry-standard SPI communication protocol and an onboard SMA connector, used to connect the appropriate 868MHz antenna. With its low power consumption, SigFox 2 click can be used on a battery-operated platform for a very long time, without replacing the battery.

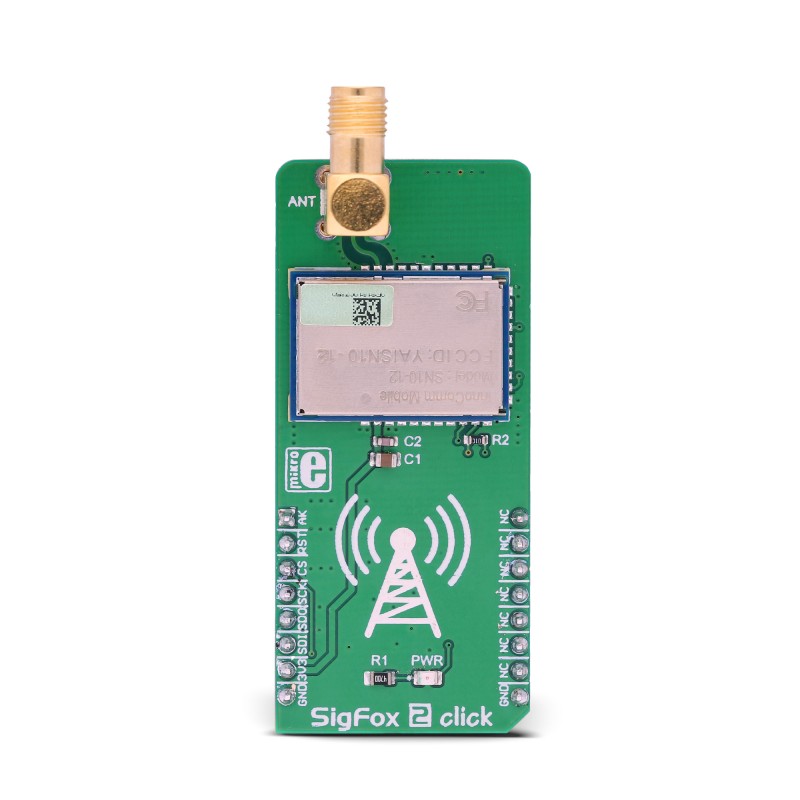

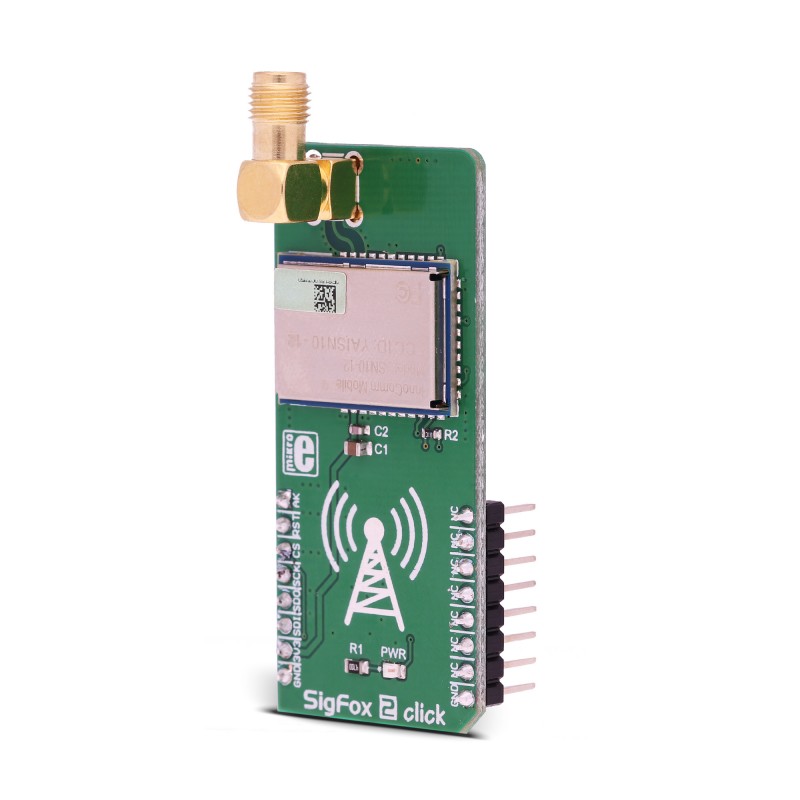

The SigFox 2 click is equipped with the SN10-12 Sigfox™ certified module, manufactured by InnoComm Mobile Technology Corporation. The hearth of this module is the OL2385, a sub-GHz wireless transceiver System-on-Chip (SoC). The communication between the module and the host MCU is performed over the SPI. An additional AK pin is used to signal the command acknowledgment. There is a number of commands available, which are all sent in a specific format. Each data packet transferred via the SPI bus contains the number of bytes to be sent, the command itself, and the data payload (if there is one). Upon the successful command, the AK pin will indicate the response. This pin is routed to the mikroBUS™ AN pin.

In addition, commands return the status over the SPI. If a command is successful, a status of 0 is returned, for example. Different status responses have different meaning. Some commands may return various error codes, indicating a certain condition of the signal chain. For example, a command might get accepted by the module, but refused by the remote base station (station not reachable, and similar). All the commands are a part of the firmware API offered by the module, over the SPI interface. However, the library which comes with the SigFox click contains functions that encapsulate all the necessary commands and handle the responses, offering simplified programming interface, in the familiar MikroElektronika compilers environment.

The module can be reset over the RST pin of the mikroBUS™. This pin is pulled to a HIGH logic level internally. Setting it to a LOW logic level will perform a hardware reset of the SN10-11 module.

The Sigfox network operates using a public frequency bandwidth, defined by the regional radio regulations, such as the FCC regulations for the North American region, carrying the FCC ID: YAISN10-12T. In the RCZ2 region, the Sigfox network operates at 902.1375MHz to 904.6625MHz, and in the RCZ4, it operates at 920.1375MHz to 922.6625MHz This network is a star topology type of network and requires a base station which collects the data from the connected nodes and sends it to the Sigfox cloud for further processing and distribution.

The nodes can be as far as 1000m from the base station, depending on the regional Sigfox network frequency (the official information about the network coverage can be found on the Sigfox site). Node objects can be various temperature and humidity sensors, parking lot sensors, etc. The node objects communicate with the base using the Differential Phase Shift Keying (DPSK) communication method. Small messages with the data payload as low as 12 bytes are transmitted several times per day, allowing conservative power consumption. The ultra-narrow frequency band allows the TX power to stay really low, saving even more power and allowing batteries to last a few years. This is very well suited for various industrial applications, such as the agriculture industry, where many sensor nodes are often scattered over a wide area and are hard to reach for a frequent battery replacement.

Once it collects the data, a base station will decode it and send it to the Sigfox cloud. The data is processed and pushed back to the user application. While the uplink (information transfer from the node to the cloud) is performed using the more robust and efficient DPSK communication method, the downlink (information transfer from the cloud to the application) uses the Frequency Shift Keying (FSK), which is less robust than the DFSK and uses broader frequency range. Typically, the interference is not a big concern for the downlink. The key difference between similar, cellular network based IoT network solutions, is that all stations in range will pick up the node signal and forward it to the cloud, not just a single station.

The Sigfox cloud is unique and all the base stations are connected to it. This type of centralized approach can have some inherited benefits. For example, it is possible to track goods, by accessing data sent by another station in a different part of the country, or even a different country. With its global Low Power Wide Area network, Sigfox is a true Internet of Things.


Type RF Sub 1GHz
Applications SigFox 2 click offers connectivity to the SigFox network. It can be used for a wide range of IoT applications, which require large area coverage, such as the agriculture industry applications, parking lot applications, goods tracking applications, and similar
On-board modules SN 10-12 Sigfox certified module, by InnoComm
Key Features Official Sigfox network certified module onboard, simplified software functions allow rapid development, robust IoT networking with very wide area coverage, Sigfox cloud allows access to distant base stations and nodes, and more
Interface SPI
Input Voltage 3.3V
Click board size L (57.15 x 25.4 mm)

Pinout diagram

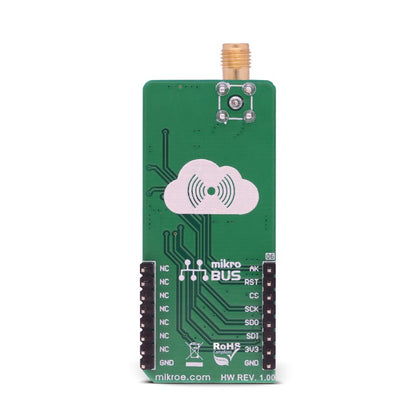

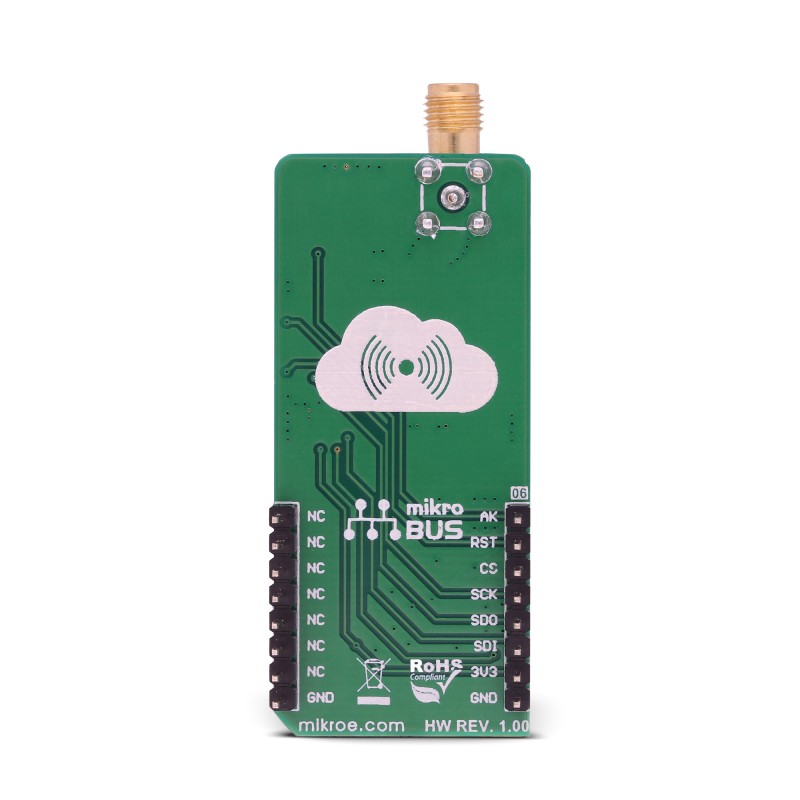

This table shows how the pinout on SigFox 2 click corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).

Notes Pin Mikrobus logo.png Pin Notes
Reset RST 2 RST INT 15 NC
Chip Select CS 3 CS RX 14 NC
SPI Clock SCK 4 SCK TX 13 NC
Power supply 3.3V 7 3.3V 5V 10 NC
Ground GND 8 GND GND 9 GND Ground

Onboard connectors and indicators

Label Name Description
PWR PWR Power LED indicator
ANT ANT SMA antenna connector

Software support

We provide a demo application for SigFox 2 Click on our Libstock page, as well as a demo application (example), developed using MikroElektronika compilers. The demo can run on all the main MikroElektronika development boards.

Library Description

The library contains basic functions for controlling the click board.

Key functions:

  • int32_t sigfox2_init() - Function for initializing the sensor.
  • int32_t sigfox2_wakeUp() - Function for waking up the sensor from the sleep mode.
  • int32_t sigfox2_sleep() - Function for placing sigfox to the low power mode.

Example description

Click board wakes up from sleep. Some tests are performed. After the tests and after the data has been sent and received from the network the click board is placed into the sleep mode to its low power mode. All events that are executed inside of the application task are printed to the serial port.

void applicationTask()
char spiFrameACK = 0;
char rData[20];
uint8_t sendPayload[12] = "Test msg";

_status = sigfox2_wakeUp();
if(_status == _SIGFOX2_STATUS_SUCCESS)
mikrobus_logWrite("Wakeup succesfull",_LOG_LINE);
_status = sigfox2_testSpicon(&spiFrameACK);
if(spiFrameACK == 1)
mikrobus_logWrite("SPI test finished succesfully",_LOG_LINE);
mikrobus_logWrite("Sending data to sigfox network",_LOG_LINE);
_status = sigfox2_receiveMessage(&sendPayload[0],&rData[0]);
if(_status == _SIGFOX2_STATUS_SUCCESS)
mikrobus_logWrite("Data received",_LOG_LINE);
mikrobus_logWrite("Network error",_LOG_LINE);
mikrobus_logWrite("Error in echo frame",_LOG_LINE);
mikrobus_logWrite("Error in wakeup",_LOG_LINE);
_status = sigfox2_sleep();
if(_status == _SIGFOX2_STATUS_SUCCESS)
mikrobus_logWrite("Sleep entered",_LOG_LINE);
mikrobus_logWrite("Error entering sleep",_LOG_LINE);

The full application code, and ready to use projects can be found on our Libstock page.

Other MikroElektronika libraries used in the example:

  • SPI Library
  • UART Library
  • Conversions Library
  • C_String Library

Additional notes and information

Depending on the development board you are using, you may need USB UART click, USB UART 2 click or RS232 click to connect to your PC, for development systems with no UART to USB interface available on the board. The terminal available in all MikroElektronika compilers, or any other terminal application of your choice, can be used to read the message.


This click board is supported with mikroSDK - MikroElektronika Software Development Kit. To ensure proper operation of mikroSDK compliant click board demo applications, mikroSDK should be downloaded from the LibStock and installed for the compiler you are using.
