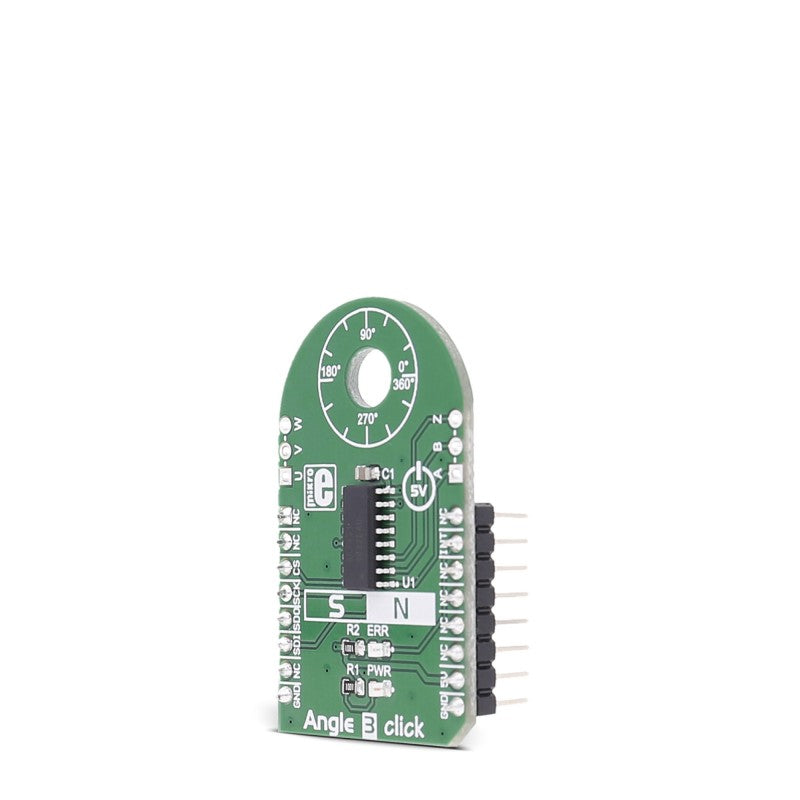

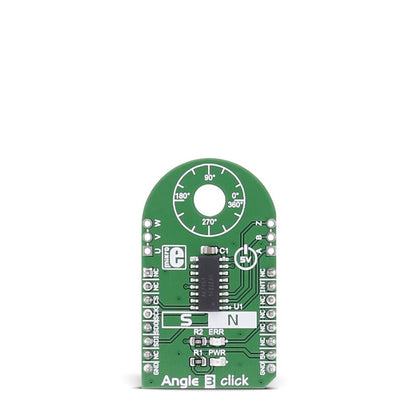

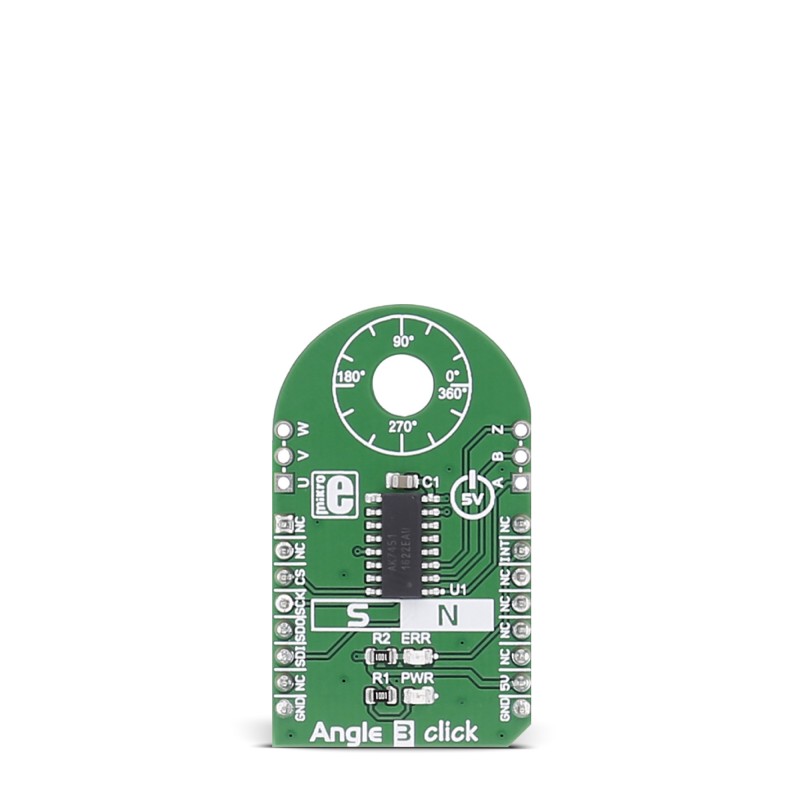

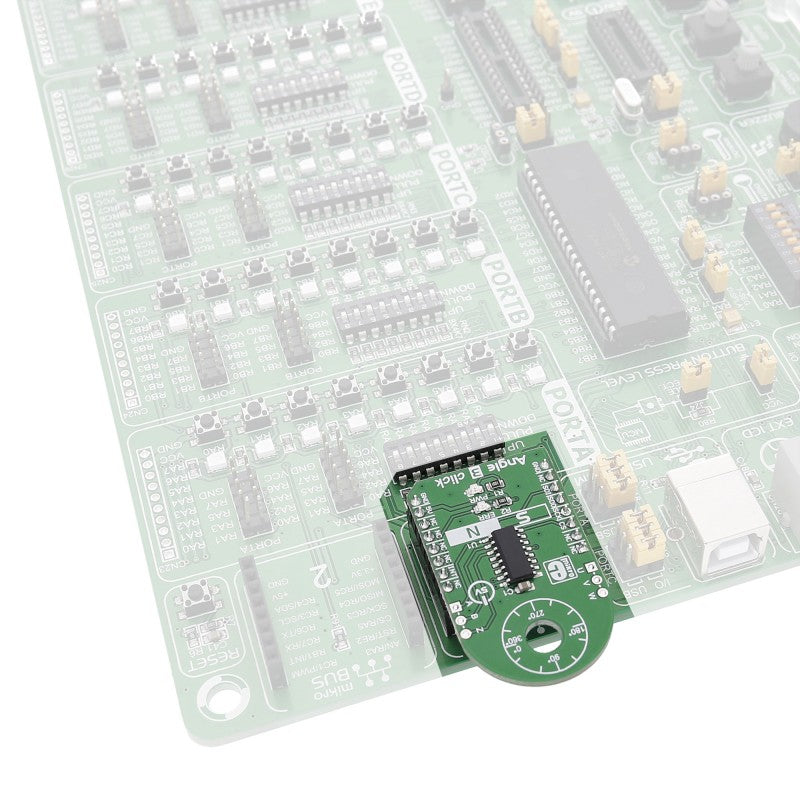

Angle 3 click

Angle 3 click carries the AK7451, a magnetic rotational angle sensor. The click is designed to run on a 5V power supply. It communicates with the target microcontroller over SPI interface, with additional functionality provided by the INT pin on the mikroBUS™ line.

Angle 3 click can be used for non-contact rotation angle measurement.

AK7451 features

The AK7451 is a magnetic rotational angle sensor with a built-in Hall element.

By detecting the magnetic field vector parallel to the IC surface, the AK7451 outputs the absolute angular position of the magnet and the relative angular position.

Through the transverse magnetic field detection method, using a magnetic flux concentrator, the AK7451 has excellent axial misalignment immunity.

How the click works

The host microcontroller sends the request for measuring the angle rotation via the SPI interface. The AK7451 sensor responds with the measured data.

There are 3 output pins on board (A, B, Z) where the IC outputs pulses for the encoder feature and the 3 output pins (U, V, W) where the IC outputs pulses for the BLDC motor drive.

Specifications

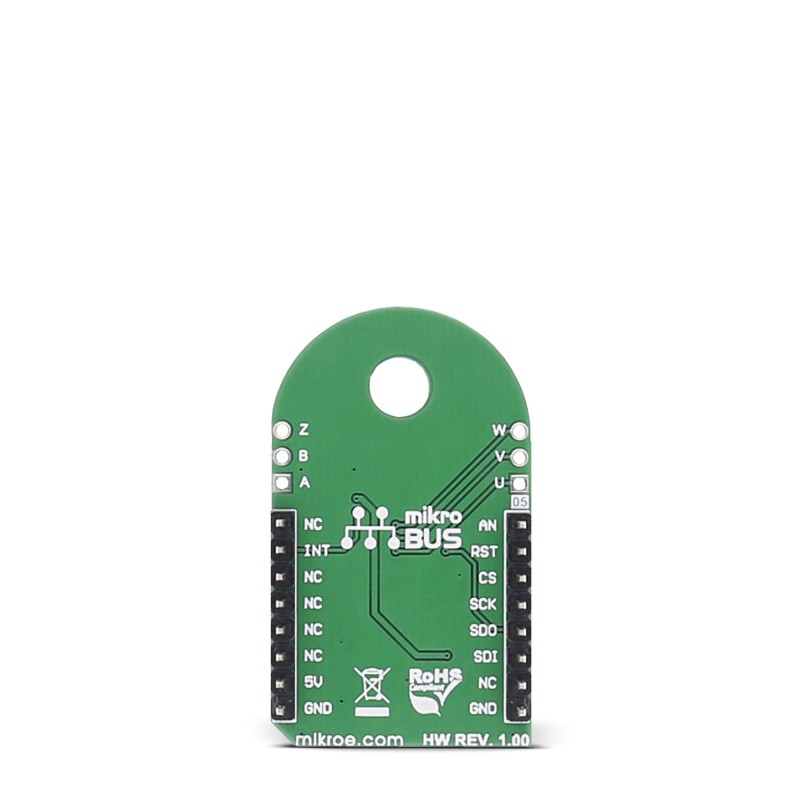

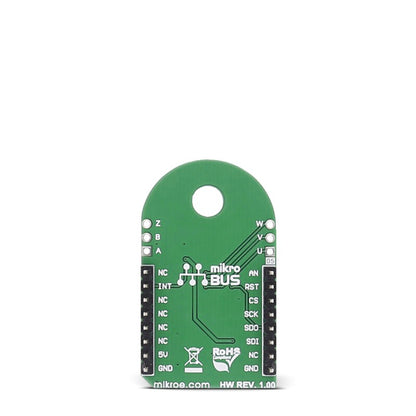

Pinout diagram

This table shows how the pinout on Angle 3 click corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).

Notes	Pin					Pin	Notes
	NC	1	AN	PWM	16	NC
	NC	2	RST	INT	15	INT	Interrupt
Chip select	CS	3	CS	TX	14	NC
SPI clock	SCK	4	SCK	RX	13	NC
Slave data out for SPI	SDO	5	MISO	SCL	12	NC
Slave data in for SPI	SDI	6	MOSI	SDA	11	NC
	NC	7	3.3V	5V	10	+5V	Power supply
Ground	GND	8	GND	GND	9	GND	Ground

Programming

Code examples for Angle 3 click, written for MikroElektronika hardware and compilers are available on Libstock.

Code snippet

This code demonstrates the usage of the Angle 3 click driver on an STM ARM board. After the initialization, data from the click is being read, converted, and displayed via UART, in a loop.

01 // Main function.
02 void main()
03 {
04 uint16_t angleData; // Angle data read from Angle3.
05 uint16_t angleDataDegrees; // Angle data converted to degrees.
06 uint8_t buffer[20]; // Buffer for characters to send via UART.
07
08 // Initialize the system.
09 systemInit();
10
11 // First write to UART.
12 UART1_Write_Text("Start");
13 UART1_Write(13);
14 UART1_Write(10);
15
16 // Main loop.
17 while( 1 )
18 {
19 // Some delay.
20 Delay_ms(1000);
21
22 // Read angle data and convert.
23 angleData = ANGLE3_readAngleData();
24
25 // Check the error bit.
26 if ((angleData & _ANGLE3_ERR_BITMASK) == 0)
27 {
28 // Send error message via UART.
29 UART1_Write_Text(" error");
30
31 // Continue with next loop iteration.
32 continue;
33 }
34
35 // Convert angle data to degrees.
36 angleData &= 0x0FFF; // Actual data is in the lower 12 bits.
37 angleDataDegrees = ANGLE3_calculateDegrees(angleData);
38
39 // Send angle data via UART.
40 IntToStr(angleDataDegrees, buffer);
41 UART1_Write_Text(buffer);
42 }
43 }
