DC MOTOR 5 click

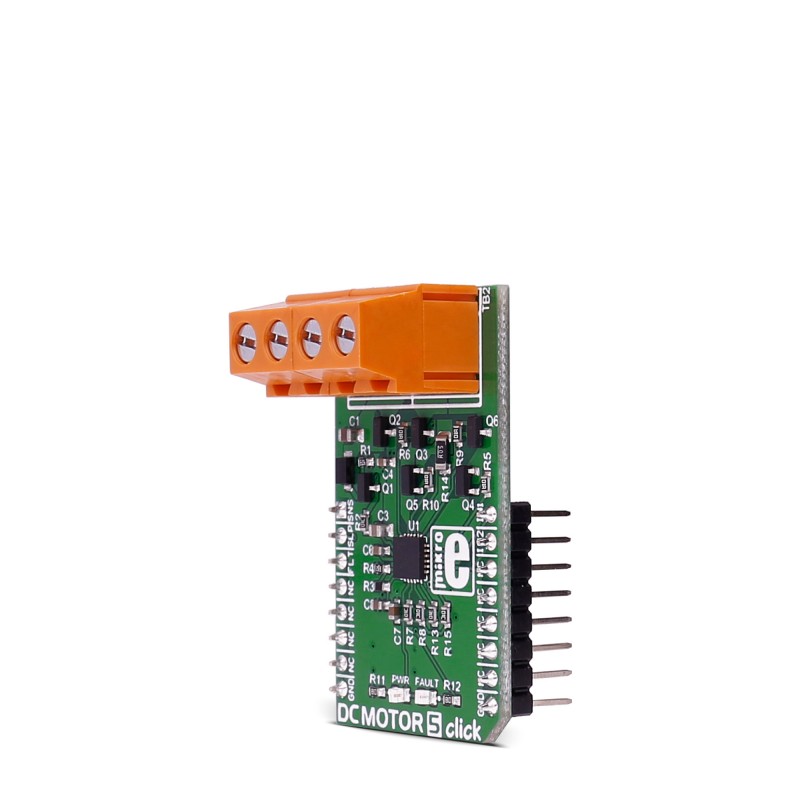

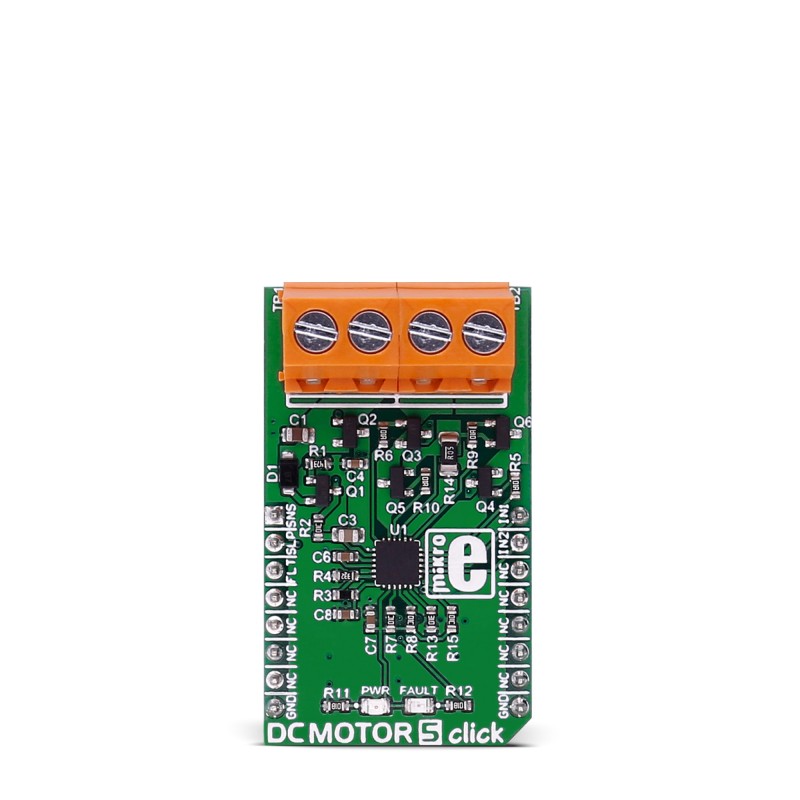

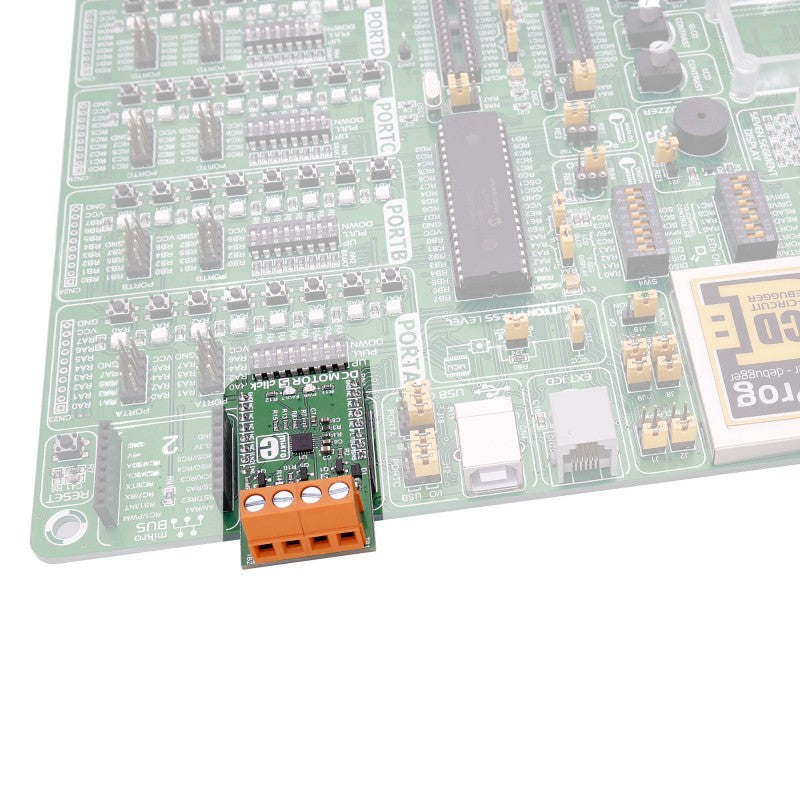

DC MOTOR 5 click carries the DRV8701 brushed DC motor gate driver from Texas Instruments. The click is designed to run on an external power supply. It communicates with the target MCU over the following pins on the mikroBUS™ line: AN, RST, CS, PWM, and INT.

DRV8701 driver features

The DRV8701 is an H-bridge gate driver (also called a pre-driver or controller). The device integrates FET gate drivers in order to control four external NMOS FETs. The device can be powered with a supply voltage between 5.9V and 45V.

Internal protection functions are provided: under-voltage lockout, charge pump faults, overcurrent shutdown, short-circuit protection, pre-driver faults, and overtemperature.

How the click works

The motor's velocity and direction can be adjusted with two PWM input signal's.

Specifications

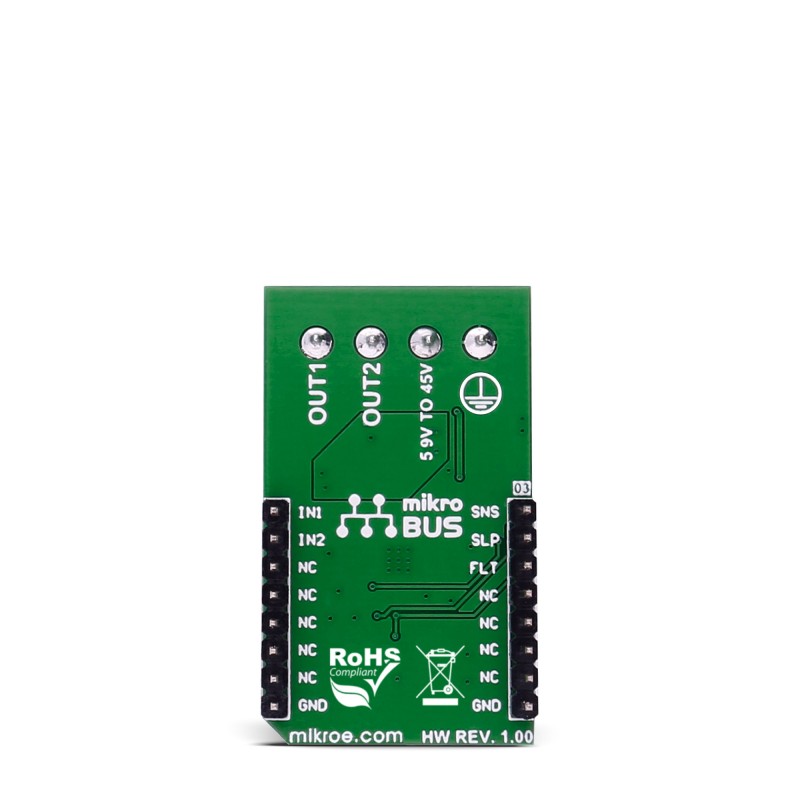

Pinout diagram

This table shows how the pinout on DC MOTOR 5 click corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).

Notes	Pin					Pin	Notes
Sense comparator output	SNSO	1	AN	PWM	16	IN1	Input signal 1
Device sleep mode	SLEEP	2	RST	INT	15	IN2	Input signal 2
Fault indication pin	FAULT	3	CS	TX	14	NC
	NC	4	SCK	RX	13	NC
	NC	5	MISO	SCL	12	NC
	NC	6	MOSI	SDA	11	NC
	NC	7	3.3V	5V	10	NC
Ground	GND	8	GND	GND	9	GND	Ground

Buttons and LEDs

Maximum ratings

Programming

Code examples for DC MOTOR 5 click, written for MikroElektronika hardware and compilers are available on Libstock.

Code snippet

The following code snippet shows an example of DC motor 5 click usage. It will detect button press, and change the state of the control pins, putting the motor into one of the 4 possible states.

01 void main()
02 {
03 systemInit();
04
05 while (1)
06 {
07 // Coast
08 if (Button(&GPIOD_IDR, 1, 1, 1))
09 {
10 IN1_PIN = 0;
11 IN2_PIN = 0;
12 }
13
14 // Reverse
15 if (Button(&GPIOD_IDR, 2, 1, 1))
16 {
17 IN1_PIN = 0;
18 IN2_PIN = 1;
19 }
20
21 // Brake
22 if (Button(&GPIOD_IDR, 3, 1, 1))
23 {
24 IN1_PIN = 1;
25 IN2_PIN = 1;
26 }
27
28 // Forward
29 if (Button(&GPIOD_IDR, 4, 1, 1))
30 {
31 IN1_PIN = 1;
32 IN2_PIN = 0;
33 }
34
35 }
36 }
