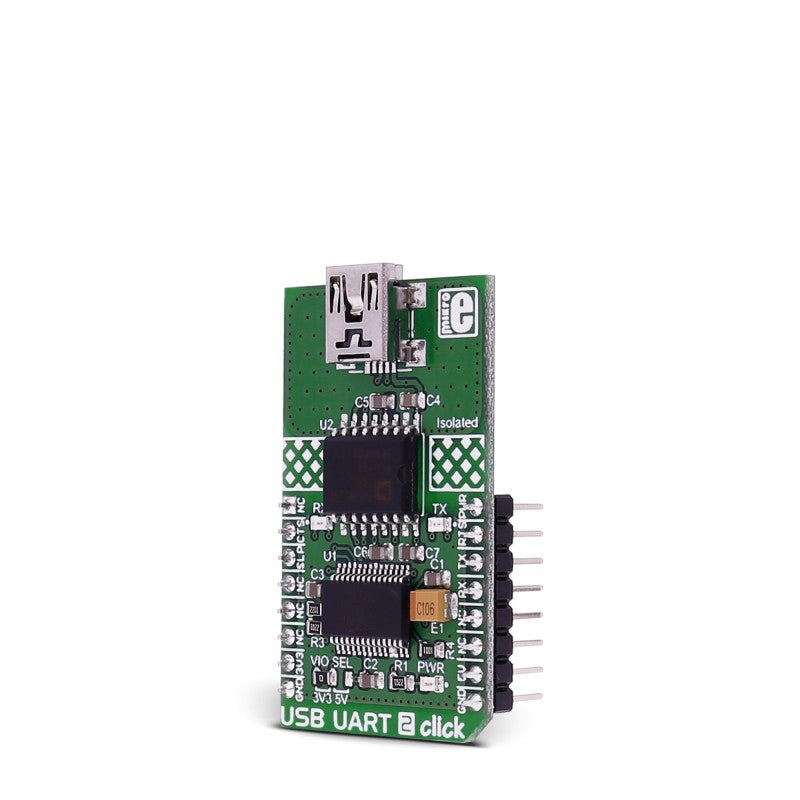

USB UART 2 Click

ADUM4160BRWZ features

ADUM4160BRWZ is a USB port isolator, based on Analog Devices, Inc., iCoupler® technology. Combining high-speed CMOS and monolithic air core transformer technology, these isolation components provide outstanding performance characteristics and are easily integrated with low and full speed USB-compatible peripheral devices.

The ADUM4160BRWZ uses the edge detection based iCoupler technology in conjunction with internal logic to implement a transparent, easily configured, upstream facing port isolator. Isolating an upstream facing port provides several advantages in simplicity, power management, and robust operation.

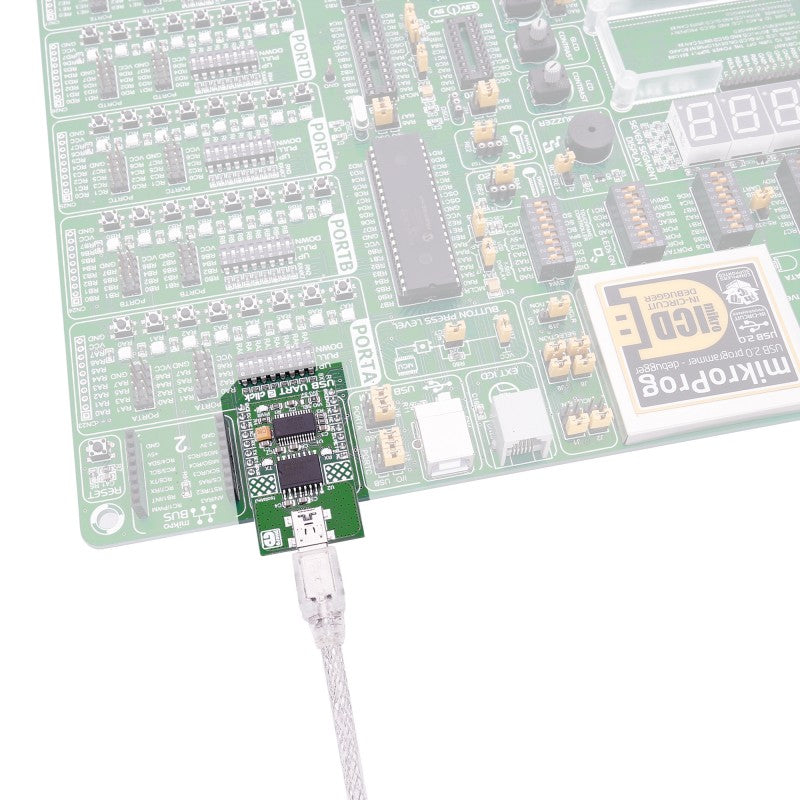

How the click works

The click takes power both from the development system and from the USB, so both sides of the isolator can function.

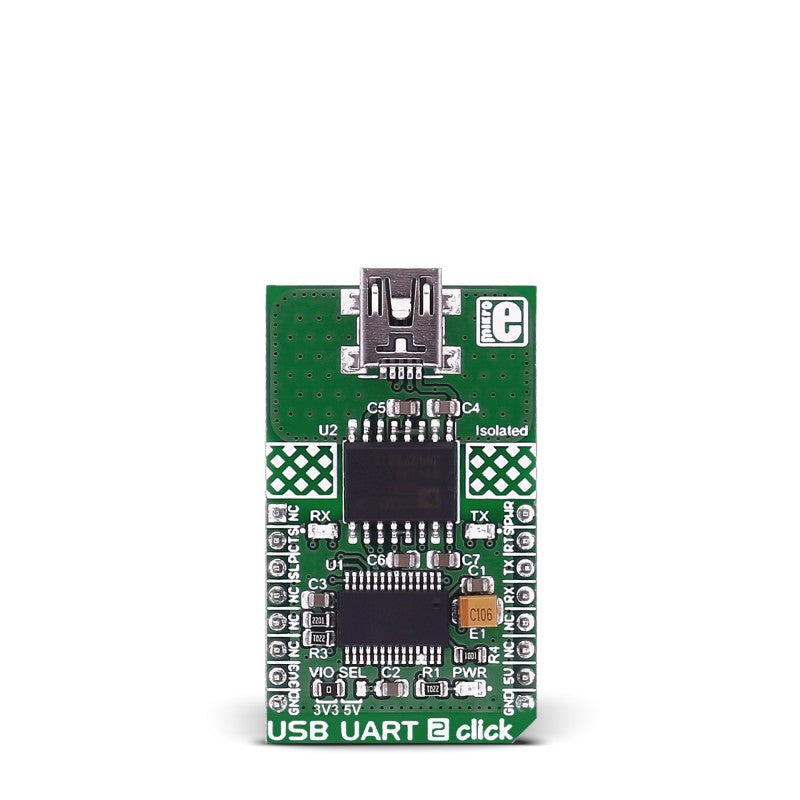

The FT232RL chip on board to act as a USB-UART converter.

Specifications

Pinout diagram

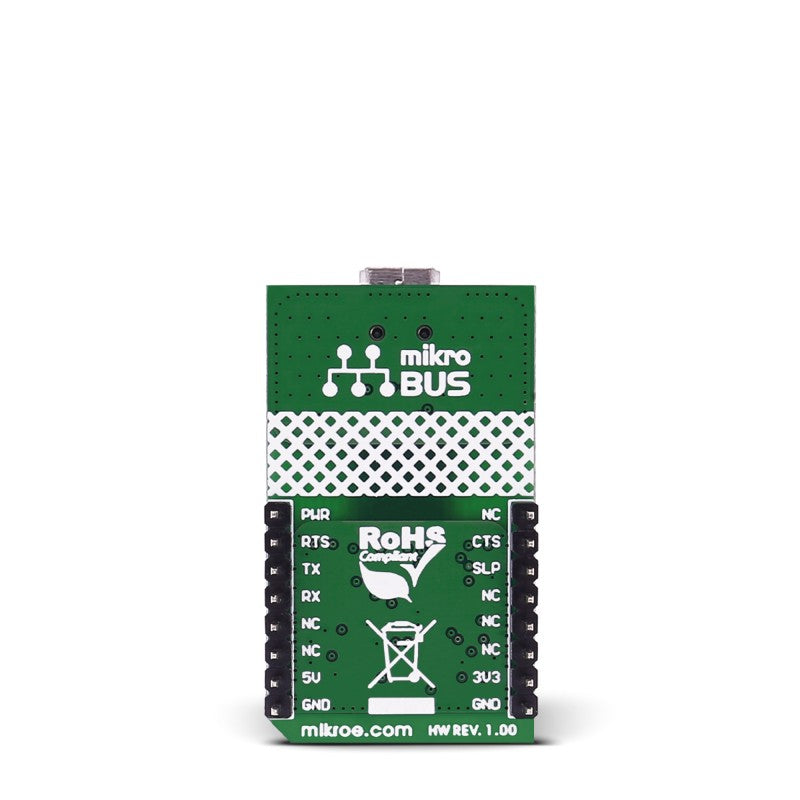

This table shows how the pinout on USB UART 2 click corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).

Notes	Pin					Pin	Notes
	NC	1	AN	PWM	16	CBUS3	Factory PWR EN
Clear to send	CTS	2	RST	INT	15	RTS	Request to send
Factory Sleep	CBUS4	3	CS	TX	14	TXD	UART transmit data
	NC	4	SCK	RX	13	RXD	UART receive data
	NC	5	MISO	SCL	12	NC
	NC	6	MOSI	SDA	11	NC
Power supply	+3.3V	7	3.3V	5V	10	+5V	Power supply
Ground	GND	8	GND	GND	9	GND	Ground

Jumpers and settings

LEDs and buttons

Downloads

USB UART 2 click schematic
