TouchKey 2 click

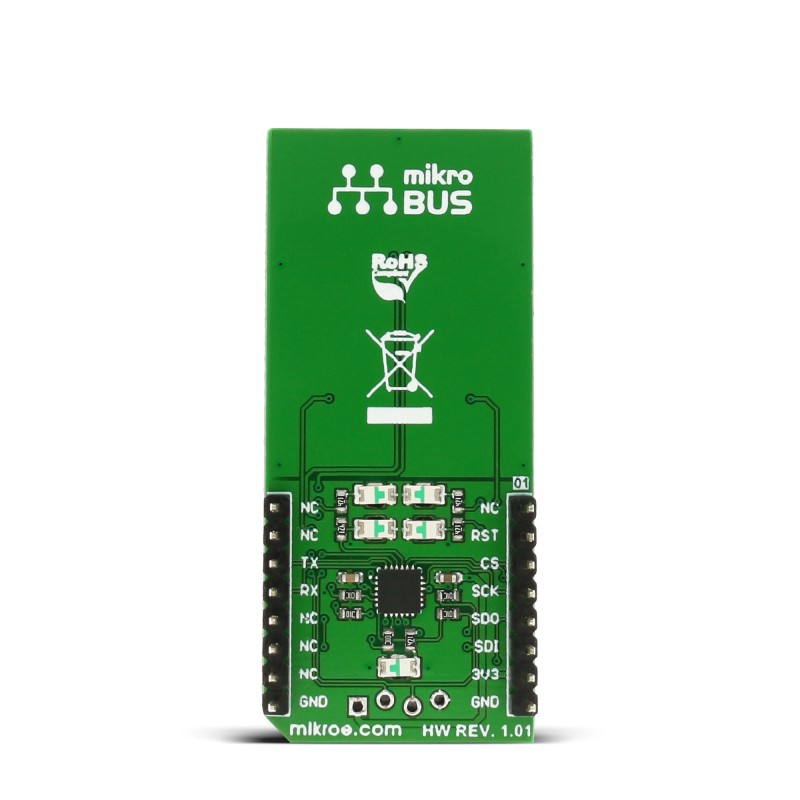

TouchKey 2 click has four capacitive pads powered by Microchip's ATtiny817 which has an integrated touch QTouch® controller. The click is designed to run on a 3.3V power supply. The four LEDs onboard the click indicate when the Key (Pad) is pressed. TouchKey 2 click communicates with the target microcontroller over UART interface (SPI interface is optional).

High moisture tolerance

You can use TouchKey 2 click in all kinds of conditions, without fearing something will happen to it due to moisture and water droplets falling on it.

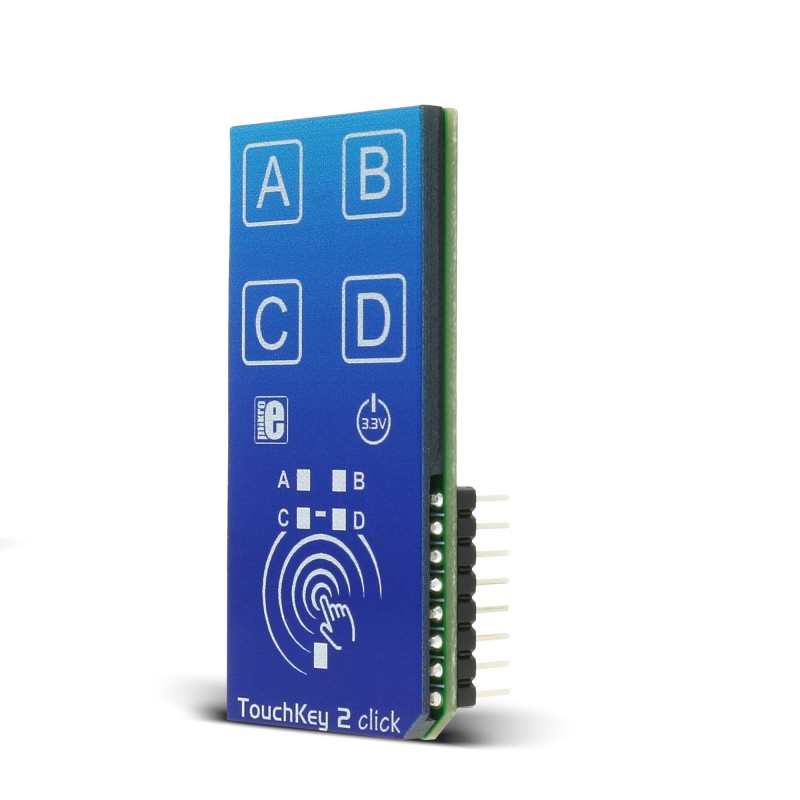

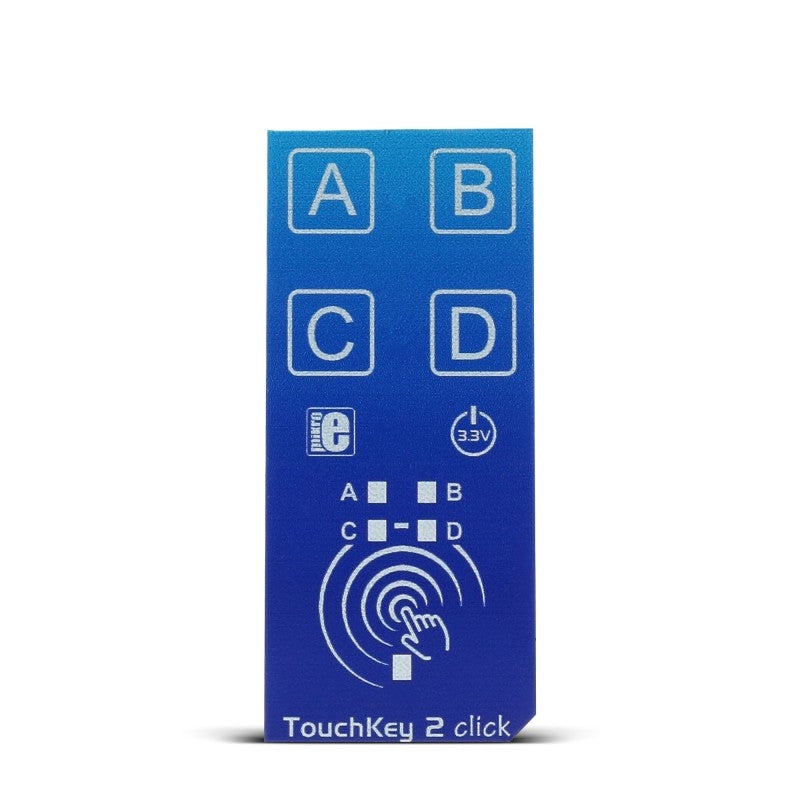

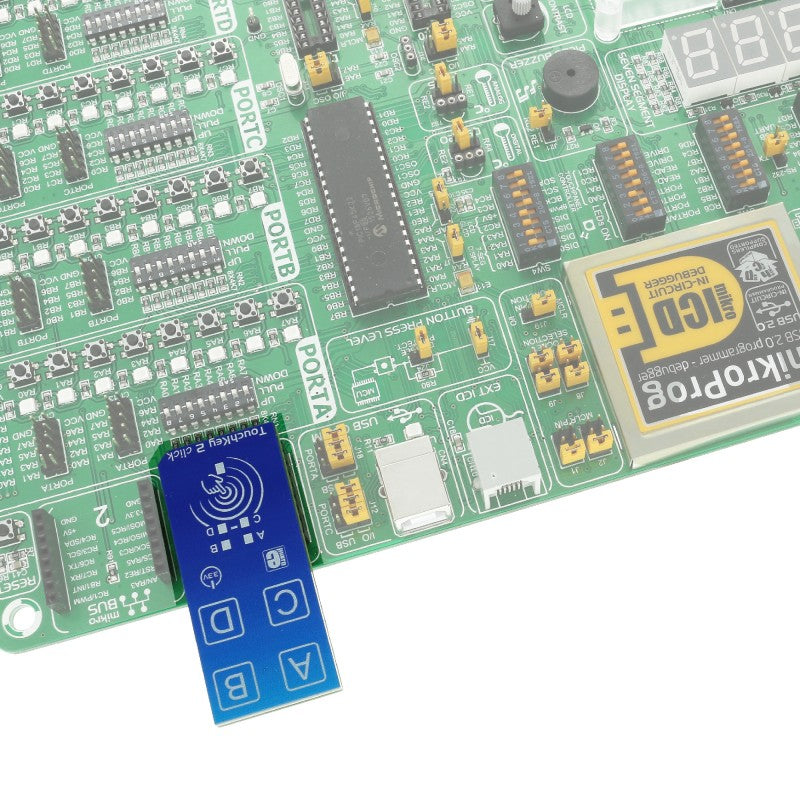

The plastic overlay on the TouchKey 2 click protects the board from moisture. Thanks to this feature the electronic components are safe. The ATtiny817 has a driven shield for improved moisture and noise handling performance.

ATtiny817 features

Microchip's ATtiny817 is a microcontroller that uses an 8-bit AVR® processor with hardware multiplier, running at up to 20MHz and with up to 8KB Flash, 512 bytes of SRAM and 128 bytes of EEPROM.

ATtiny817 uses the latest technologies from Microchip with a flexible and low power architecture including Event System and SleepWalking, accurate analog features and advanced peripherals.

Capacitive touch interfaces with proximity sensing and driven shield are supported with the integrated QTouch® peripheral touch controller.

The module supports wake-up on touch from power-save sleep mode.

Button features

Capacitive buttons can be toggled even when placed under a layer of glass or paper.

How it works

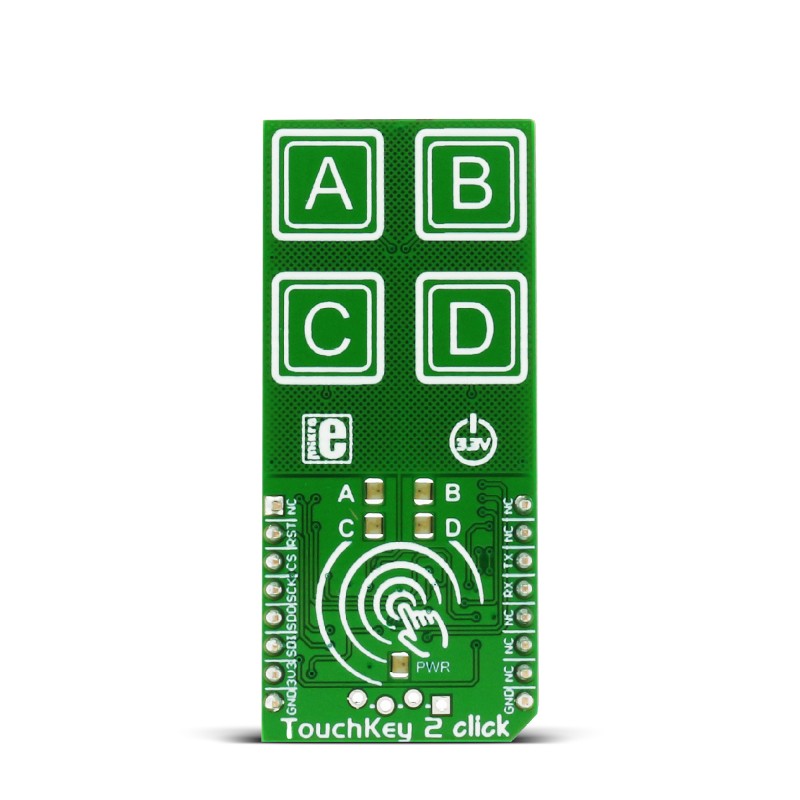

There are four LEDs for four touch keys. If key A is pressed LED_A is ON, etc. In addition, there is UART communication between ATtiny817 and main MCU.

Note: The header onboard the TouchKey 2 click can be used for device programming. Current firmware sends data packets via UART (on which the demo example in our library is based). SPI communication is possible with firmware modifications.

Specifications

Pinout diagram

This table shows how the pinout on TouchKey 2 click corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).

Notes	Pin					Pin	Notes
	NC	1	AN	PWM	16	NC
Reset	PC5_TARGET_RESET	2	RST	INT	15	NC
SPI Chip Select	PC3_SPI_SS	3	CS	TX	14	PA1_UART_TXD	UART transmit
SPI Clock	PC0_SPI_SCK	4	SCK	RX	13	PA2_UART_TXD	UART receive
SPI Master Input Slave Output	PC1_SPI_MISO	5	MISO	SCL	12	NC
SPI Master Output Slave Input	PC2_SPI_MOSI	6	MOSI	SDA	11	NC
Power supply	+3.3V	7	3.3V	5V	10	NC
Ground	GND	8	GND	GND	9	GND	Ground

Buttons and LEDs

Maximum ratings

Programming

Code examples for TouchKey 2 click, written for MikroElektronika hardware and compilers are available on Libstock.

This code snippet initializes the MCU and display, and in an endless loop recognizes which key is being pressed. The key that was touched last is shown on the display.

01 void main( void )
02 {
03 system_init();
04 display_init();
05
06 TFT_Set_Font( &HandelGothic_BT21x22_Regular, CL_RED, FO_HORIZONTAL );
07 TFT_Write_Text( "Press Any On-board Key", 50, 120 );
08
09 while( true )
10 {
11 // Key A has been pressed
12 if( key_A_pressed && old_key != KEY_A )
13 {
14 display_key( "A", CL_RED );
15 key_A_pressed = false;
16 old_key = KEY_A;
17 }
18 // Key B has been pressed
19 else if( key_B_pressed && old_key != KEY_B )
20 {
21 display_key( "B", CL_GREEN );
22 key_B_pressed = false;
23 old_key = KEY_B;
24 }
25 // Key C has been pressed
26 else if( key_C_pressed && old_key != KEY_C )
27 {
28 display_key( "C", CL_BLUE );
29 key_C_pressed = false;
30 old_key = KEY_C;
31 }
32 // Key D has been pressed
33 else if( key_D_pressed && old_key != KEY_D )
34 {
35 display_key( "D", CL_PURPLE );
36 key_D_pressed = false;
37 old_key = KEY_D;
38 }
39 }
40 }
