MikroElektronika
MINI-M4 for Kinetis
MINI-M4 for Kinetis
SKU:MIKROE-2445
Regular price
Rs. 3,049.00
Regular price
Sale price
Rs. 3,049.00
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Share

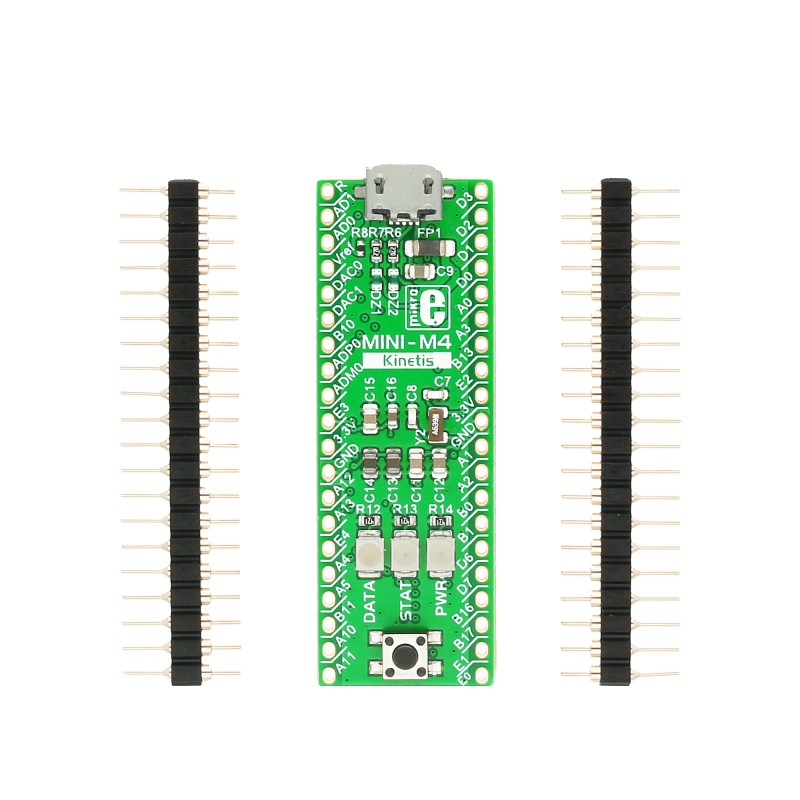

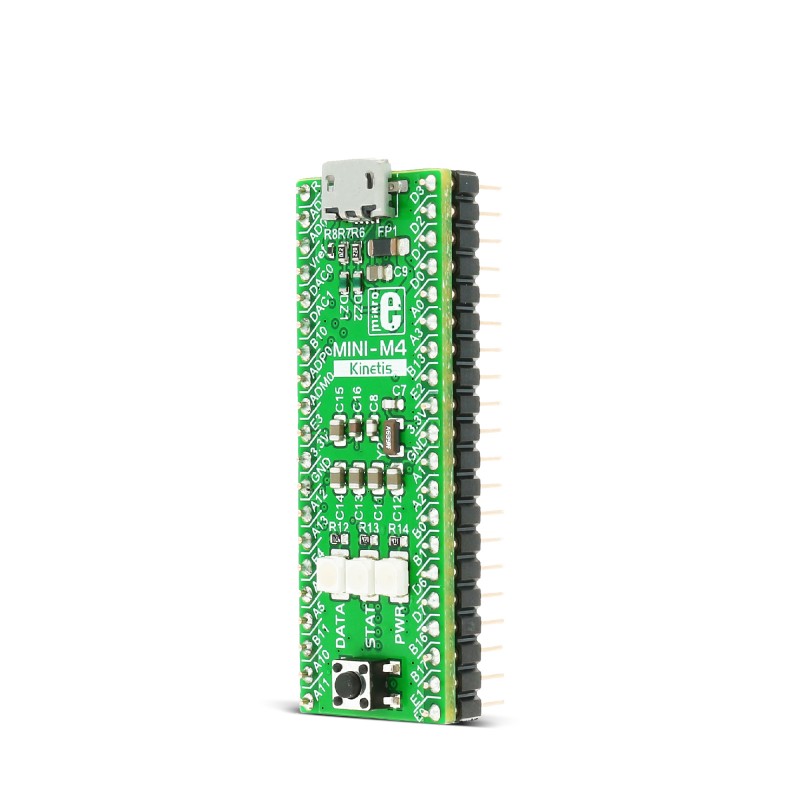

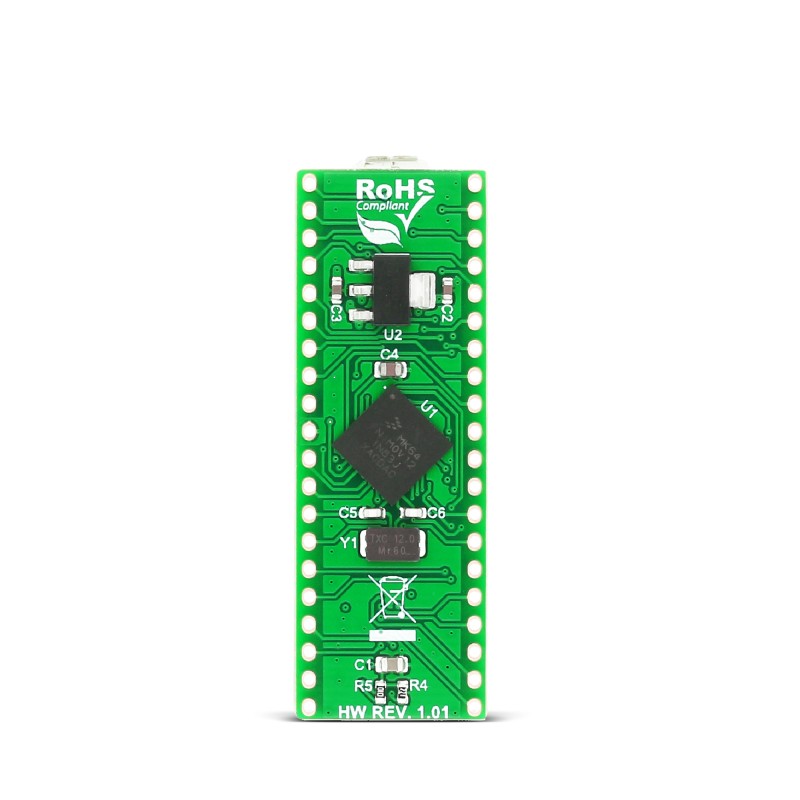

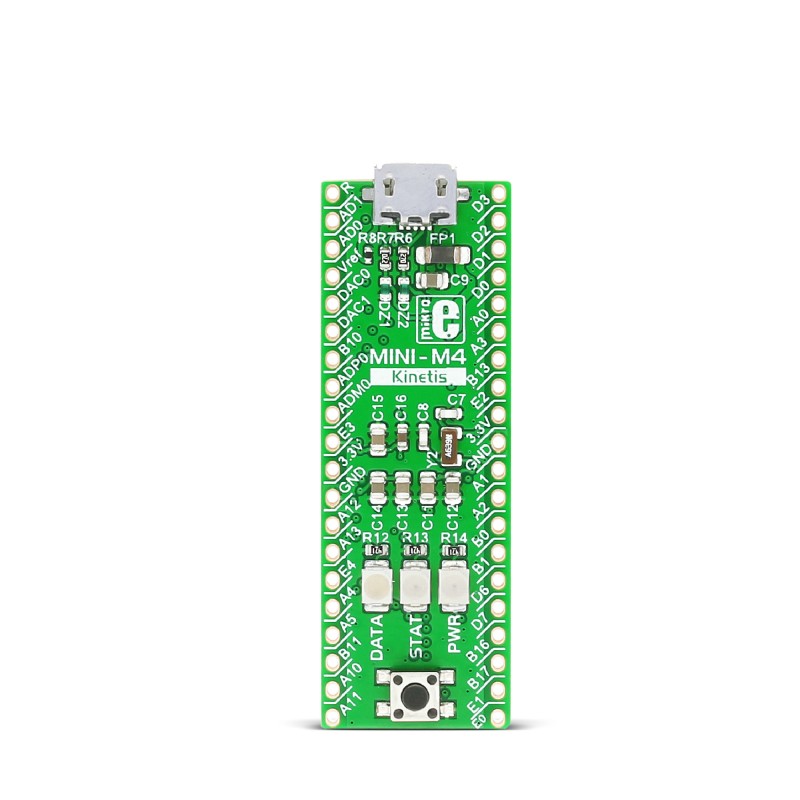

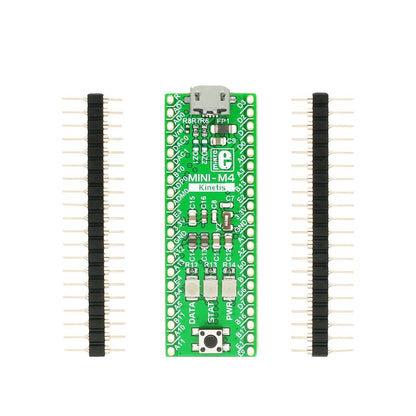

MINI-M4 for Kinetis is an ARM® Cortex™-M4 development board containing MK64FN1M0VDC12 microcontroller. This compact and powerful development board is designed to work as a standalone device or as an MCU card in DIP40 socket.
MINI-M4 for Kinetis operates on a 3.3V power supply. The onboard voltage regulator allows the board to be powered directly from USB cable.
The board is equipped with a 12MHz crystal oscillator and 32.768kHz crystal which can be used for internal RTCC module.
USB HID bootloader
MINI-M4 for STM32 is pre-programmed with USB HID bootloader so it is not necessary to have an external programmer.
External programmers
In case you need an external programmer, like the mikroProg™, attach MINI-M4 for Kinetis via the following pins on the board: PTA0 (TCK/SWC), PTA3 (TMS/SWD), PTA2 (TDO) and PTA1 (TDI).
Key features
- MK64FN1M0VDC12 MCU
- 1MB of Flash, 256KB of SRAM
- ARM® Cortex®-M4 core
- USB connector
- 3.3V power supply
Specification
Type | ARM |
MCU | MK64FN1M0VDC12 |
MCU speed | 120 MHz |
MCU Memory | 1MB of Flash, 256KB of SRAM |
On-board modules | 3 x LEDs, 1 x Reset Button, USB connector |
Programming | Comes preprogrammed with USB HID bootloader |
Input Voltage | 5V (via USB) or 3.3V (via external source) |
