MikroElektronika

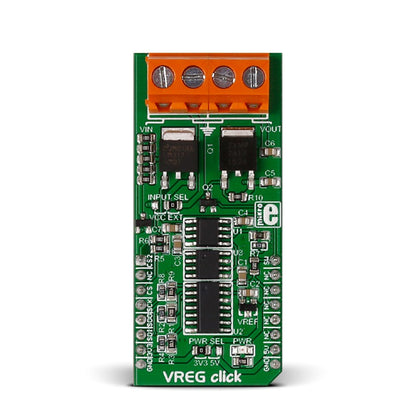

VREG click

VREG click

SKU:MIKROE-2443

Regular price Rs. 2,519.00
Regular price Sale price Rs. 2,519.00
Sale Sold out
Tax included.

1 in stock

The LM317 IC is a reliable regulator with typical line regulation of 0.01% and load regulation of 0.1%. It also has internal short-circuit current limiting and thermal overload protection.

The circuit regulates voltage by turning all input/output difference into heat (effectively dissipating all the excess power). If it gets too hot it may damage the board or cause unexpected behaviour.

Because of that, the board’s operating range is defined by two factors. 1) maximum input voltage and current (should not exceed 20V/1A); and 2) maximum wattage arising from current and I/O voltage difference (should not exceed 2W, measured as I x (Input V - Output V).

The board also carries a MOSFET chip to toggle the output on and off.

VReg click communicates with the target board MCU through the SPI interface (CS, SCK, MISO, MOSI). The board can use either a 3.3V or a 5V power supply.

It is also possible to use the board’s power supply as the Input, by resoldering the onboard INPUT SEL jumper.

Specification

Type Linear
Applications Regulating linear power supplies for a wide variety of devices
On-board modules LM317, MCP4921 12-bit DAC, MCP3204 12-bit ADC, ZXMP7A17K MOSFET, LMx58 Low-Power, Dual-Operational Amplifier
Key Features Input Output screw terminals
Key Benefits Digital control, Possible to use board’s power supply as input
Interface GPIO,SPI
Input Voltage 3.3V or 5V
Compatibility mikroBUS
Click board size L (57.15 x 25.4 mm)

Programming

The following code snippet shows how to send temperature readings from VReg click to a TFT display.

 1 while(1)
2 {
3 if(output < set_value)
4 {
5 value = value + 1;
6 if(value>4095) {value = 4095;}
7 }
8
9 if(output > set_value)
10 {
11 value = value - 1;
12 if(value<1) {value = 2;}
13 }
14
15 DAC_Output(value);
16 output = getADC(1)/1.82;
17 ProcessValue(output,2); // Writes measured value to Lcd
18 Delay_ms(10); // Wait 10ms
19
20 }

Code examples that demonstrate the usage of VReg click with MikroElektronika hardware, written for mikroC for ARM, AVR, dsPIC, FT90x, PIC and PIC32 are available on [Libstock].
