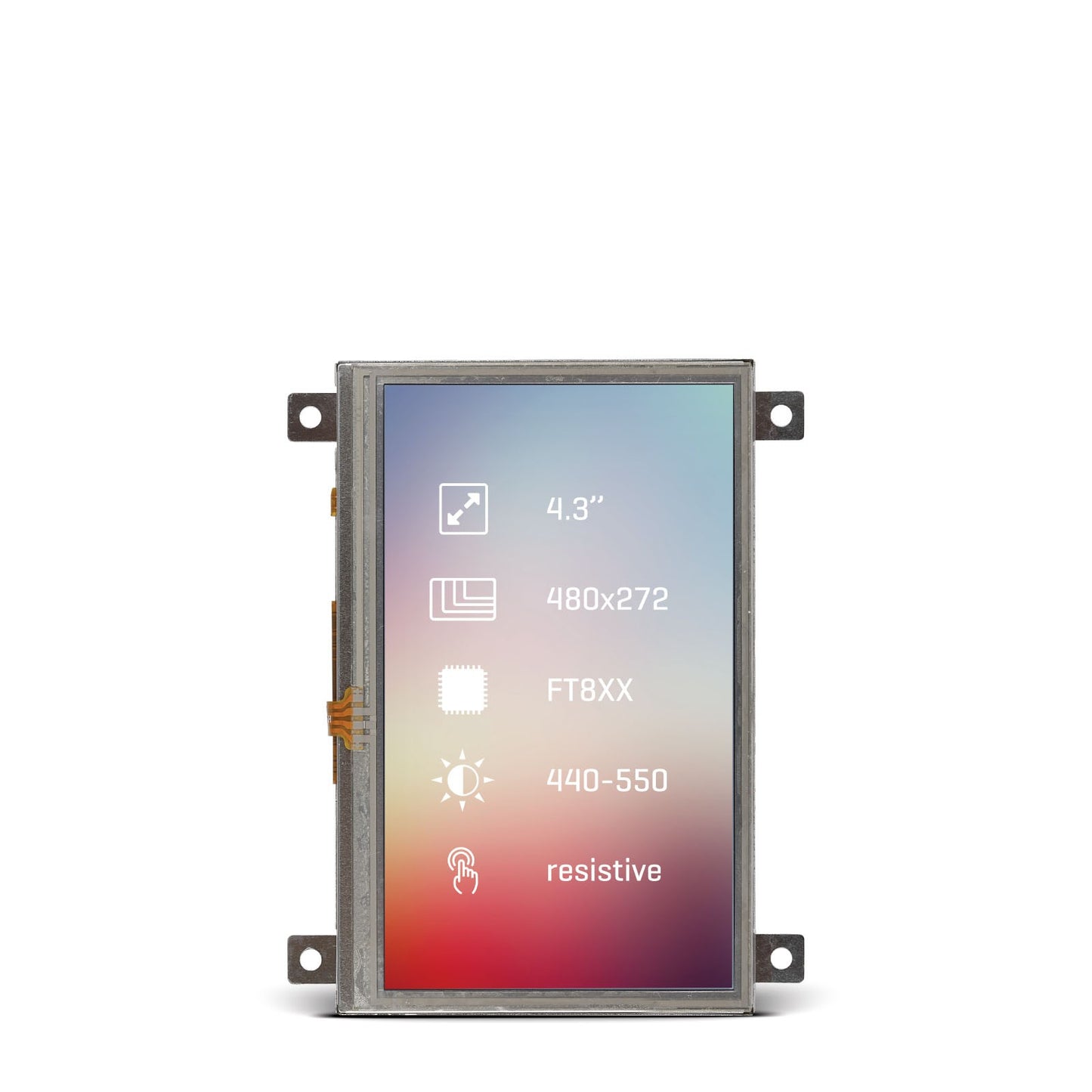

Riverdi Display 4.3" Res

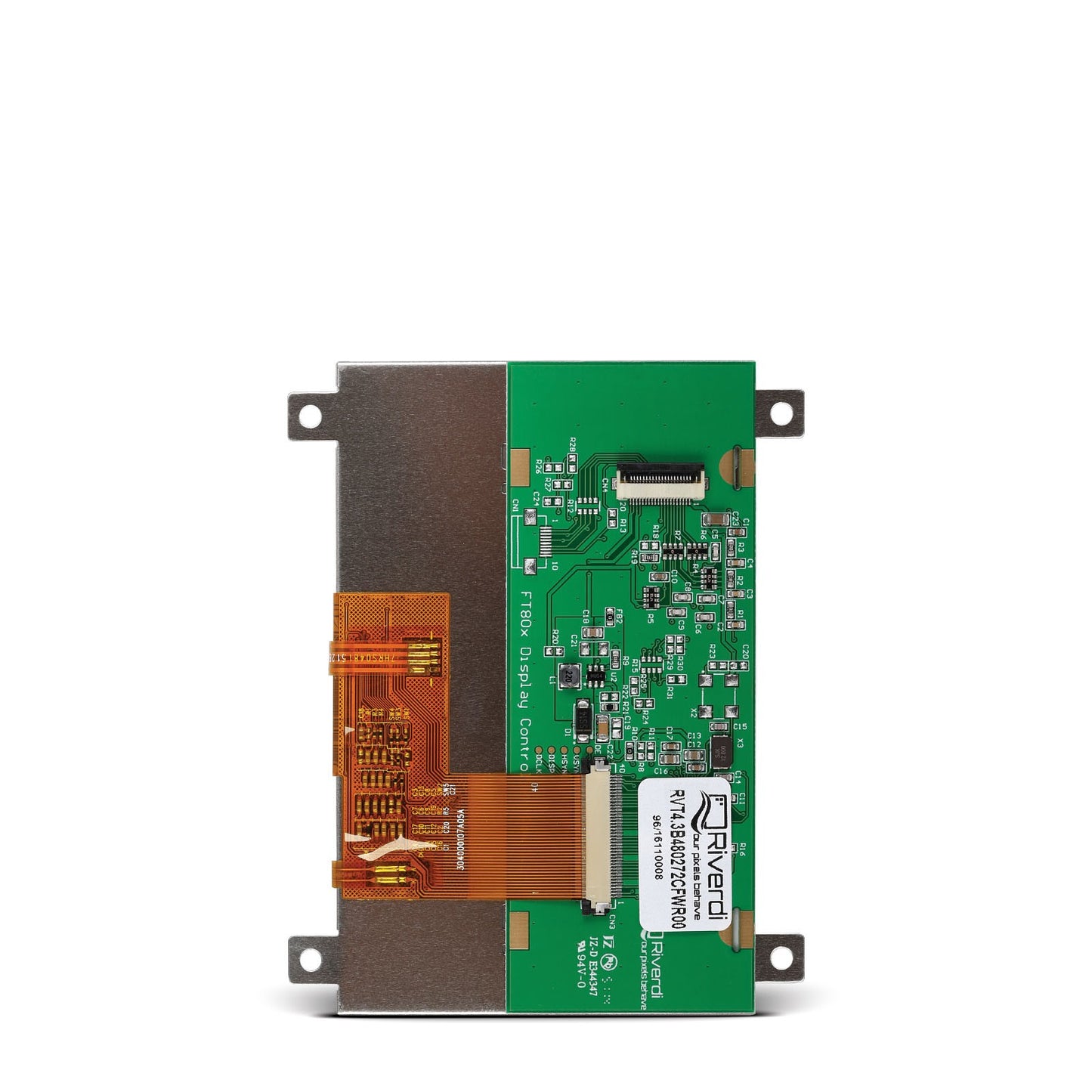

The 480x272px screen is driven by an FT800 graphic controller which is supported in Visual TFT, the GUI design tool for rapid development of user interfaces.

Resistive touchscreens have a higher resistance to dust and water compared to capacitive screens. They can also be used with a gloved finger. Those two features make them a better option for applications where a more robust user interface is required.

The connector uses an I2C/SPI interface. To use it with various MikroElektronika hardware, a Riverdi click adapter board is available (interface between the connector on the display and a mikroBUS™ socket).

Specification
