MikroElektronika
Button G click
SKU:
MIKROE-2040
Rs. 1,039.00
Taxes included.
Shipping calculated at checkout.
Description

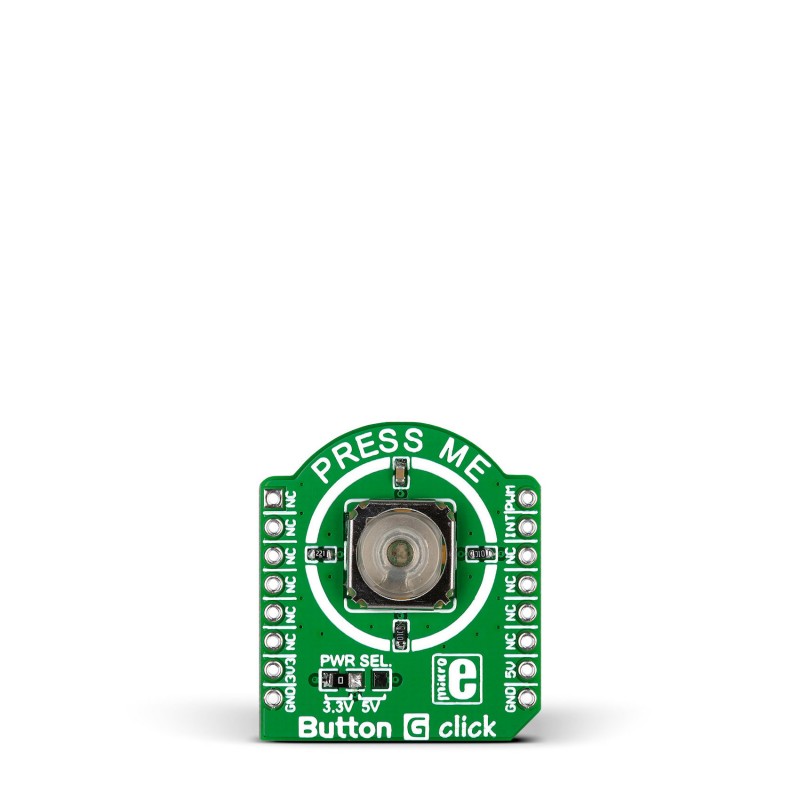

Button G click is the simplest solution for adding a single pushbutton to your design. The button itself is transparent, 6.8mm in diameter and has a green LED backlight. When pressed, it sends an interrupt signal to the target board microcontroller. The backlight LED is controlled separately through the mikroBUS PWM pin, so you can program all kinds of patterns (varying level of light intensity or rate of blinking on subsequent button presses). The board can use either a 3.3V or a 5V power supply.
Specification
| Type | Joystick |
| Applications | When your user-interface design requires the tactile feel and feedback of a hardware pushbutton |
| On-board modules | Single pushbutton |
| Key Features | Transparent pushbutton. Green LED backlight |
| Key Benefits | Independently controlled LED (PWM). Tactile feedback |
| Interface | PWM,GPIO |
| Input Voltage | 3.3V or 5V |
| Compatibility | mikroBUS |
| Click board size | S (28.6 x 25.4 mm) |
