MikroElektronika

Button G click

Button G click

MIKROE-2040

Rs. 1,039.00
Rs. 1,039.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

Out of stock

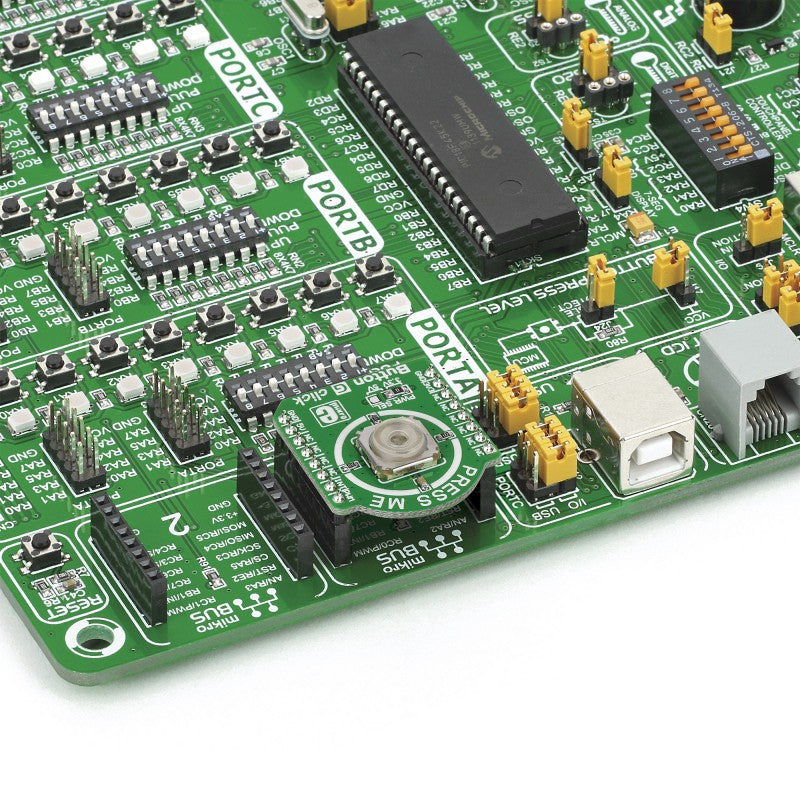

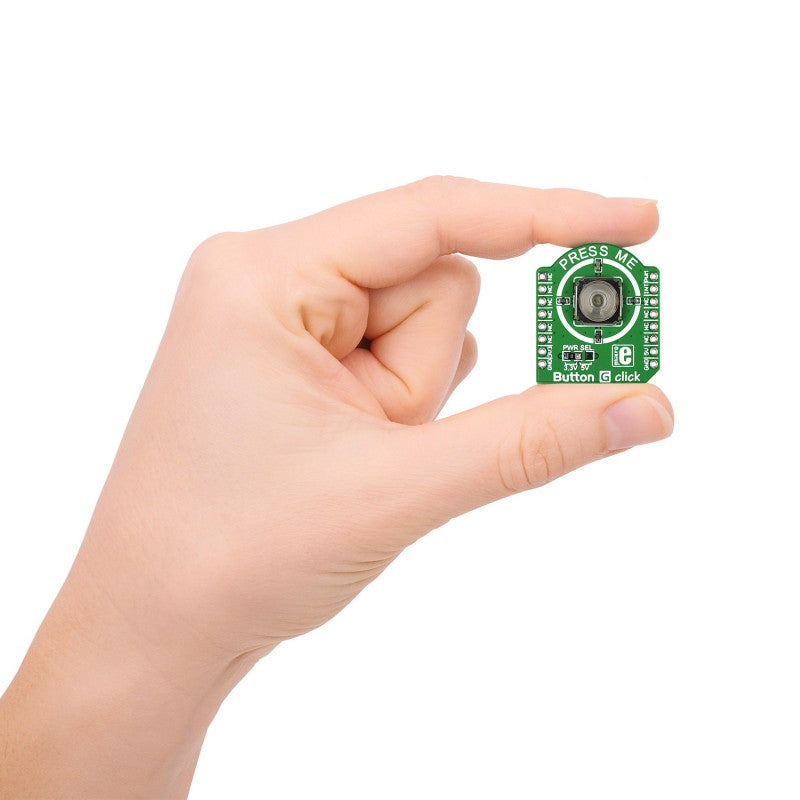

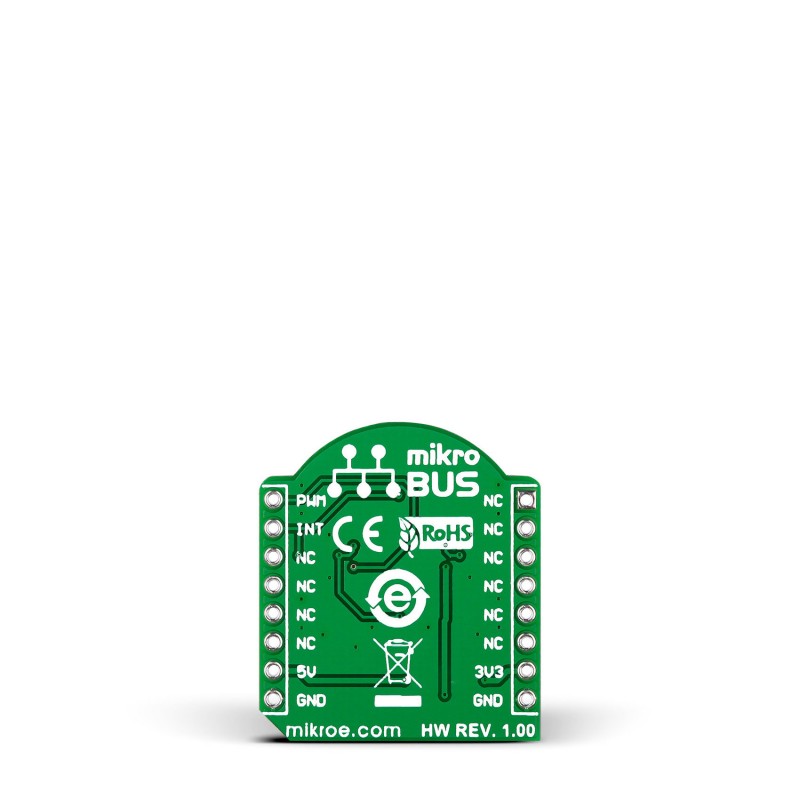

Button G click is the simplest solution for adding a single pushbutton to your design. The button itself is transparent, 6.8mm in diameter and has a green LED backlight. When pressed, it sends an interrupt signal to the target board microcontroller. The backlight LED is controlled separately through the mikroBUS PWM pin, so you can program all kinds of patterns (varying level of light intensity or rate of blinking on subsequent button presses). The board can use either a 3.3V or a 5V power supply.

Specification

Type Joystick
Applications When your user-interface design requires the tactile feel and feedback of a hardware pushbutton
On-board modules Single pushbutton
Key Features Transparent pushbutton. Green LED backlight
Key Benefits Independently controlled LED (PWM). Tactile feedback
Interface PWM,GPIO
Input Voltage 3.3V or 5V
Compatibility mikroBUS
Click board size S (28.6 x 25.4 mm)
