Line Follower click

Line Follower click

SKU:MIKROE-1999

Regular price Rs. 1,579.00
Regular price Sale price Rs. 1,579.00
Sale Sold out
Tax included.

1 in stock

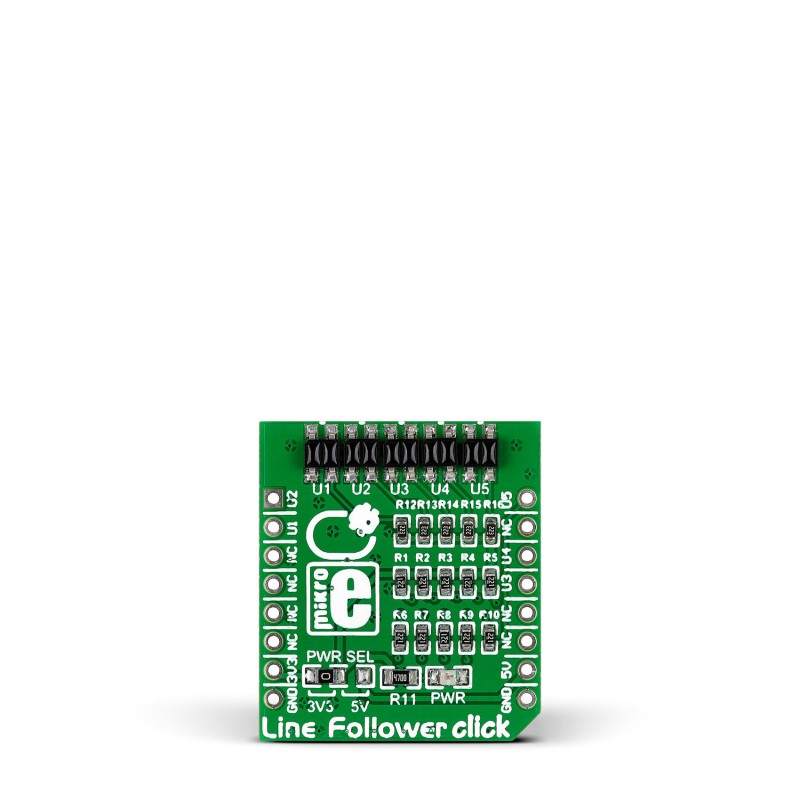

Line Follower click carries an array of five QRE1113 miniature reflective object sensors. As the name implies, Line Follower click is best used for line following robots and cars. Each one of the QRE1113 sensors consist of an infrared transmitter and infrared receiver. For communicating with the target MCU, the individual sensors have their own separate digital outputs, each one routed through a single mikroBUS™ pin: OUT1, OUT2, OUT3, OUT4 and OUT5 (in place of default mikroBUS pins RST, AN, PWM, TX and RX, respectively). Line Follower click is designed to use either a 3.3V or a 5V power supply.

Specification

Type Optical
Applications Line detection for robotic vehicles
On-board modules Five QRE1113 miniature reflective object sensors
Key Features Separate digital outputs for each sensor
Key Benefits Can be used to detect thickness of line
Interface GPIO
Input Voltage 3.3V or 5V
Compatibility mikroBUS
Click board size S (28.6 x 25.4 mm)
