MikroElektronika

TouchPad click

TouchPad click

SKU:MIKROE-1995

Regular price Rs. 1,579.00
Regular price Sale price Rs. 1,579.00
Sale Sold out
Tax included.

Out of stock

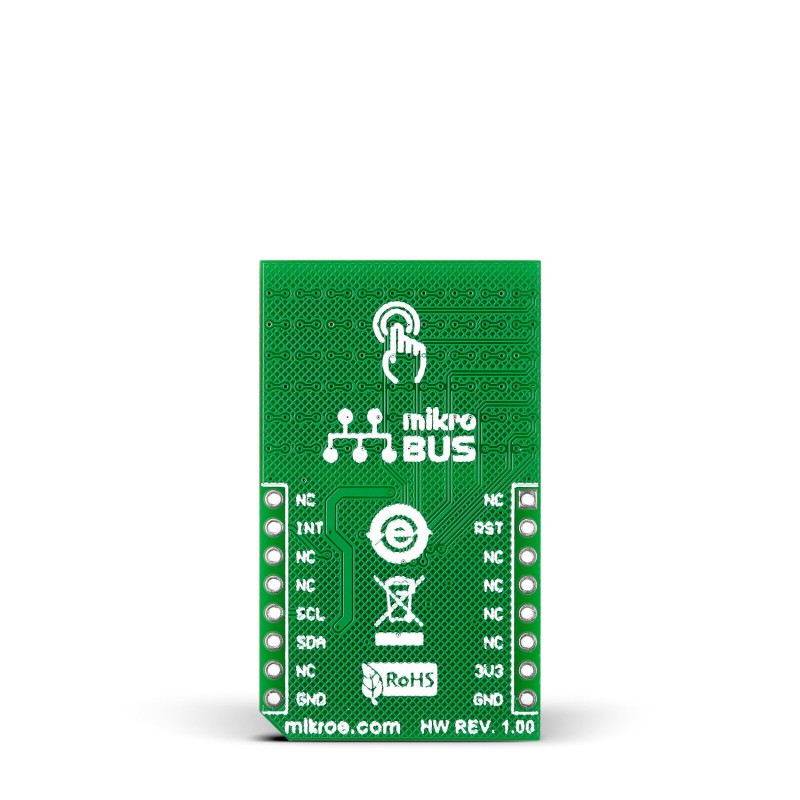

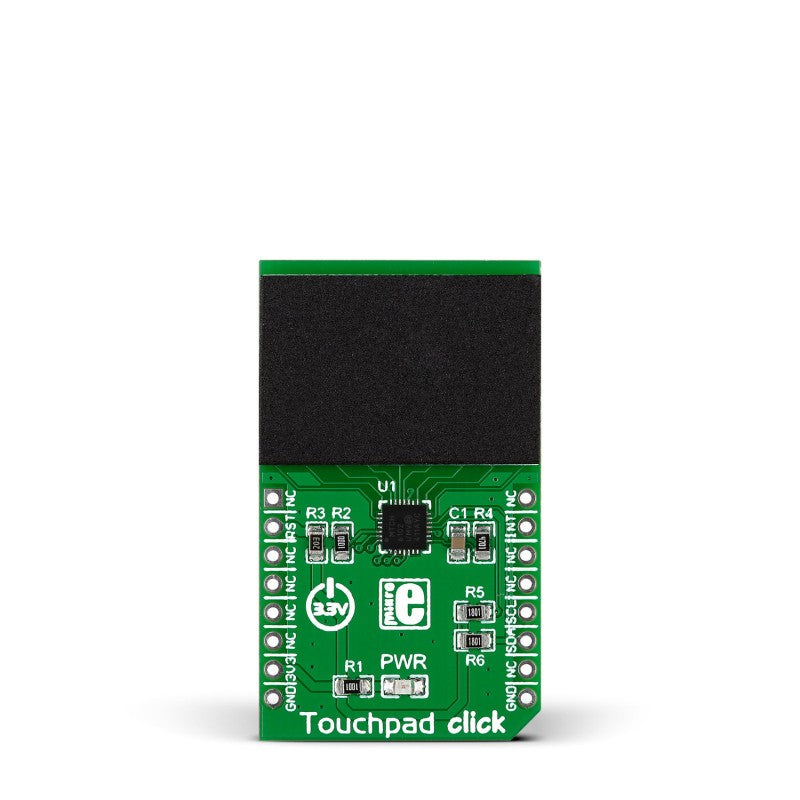

Touchpad click is a capacitive touch input device driven by Microchip’s low-powered MTCH6102 controller. The touchpad surface is covered with a sheet of black plastic to demonstrate the chip’s support for cover layers (up to 3mm for plastic, 5mm for glass) Touchpad click communicates with the target MCU through the mikroBUS I2C interface (SCL and SDA pins), with additional functionality provided by the Interrupt and RSTL pins. Designed to use a 3.3V power supply.

Specification

Type Capacitive
Applications Ideal for interfaces on size-constrained designs, such as wearables, touchpads on remote controls and similar
On-board modules Microchip’s low-powered MTCH6102 controller
Key Features Supports taps, doubletaps, swipes and scrolling gestures. Several power saving modes
Key Benefits Cover layer support. Low power consumption
Interface GPIO,I2C
Input Voltage 3.3V

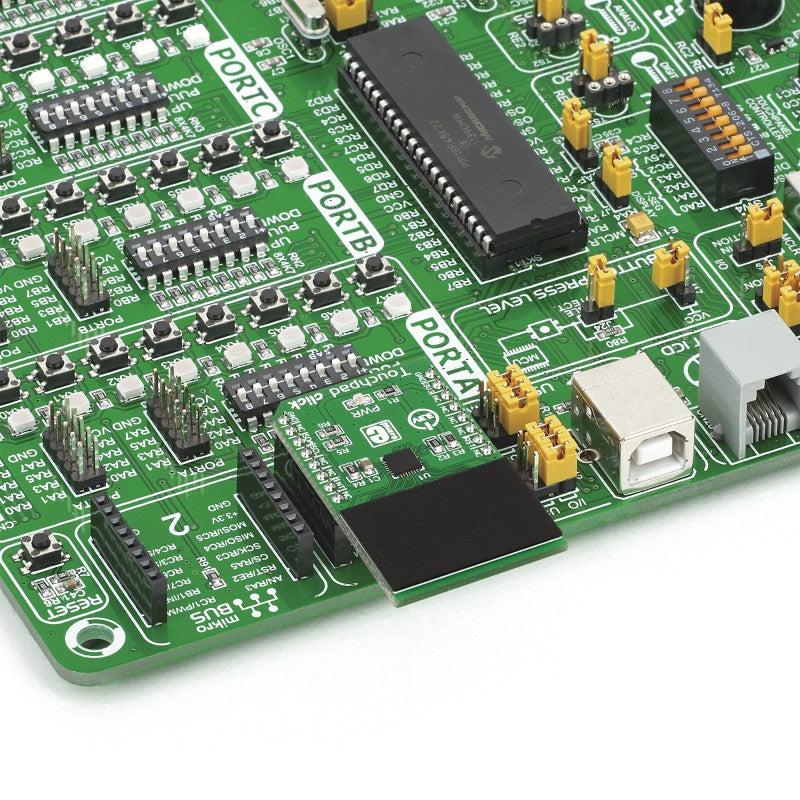

Compatibility mikroBUS

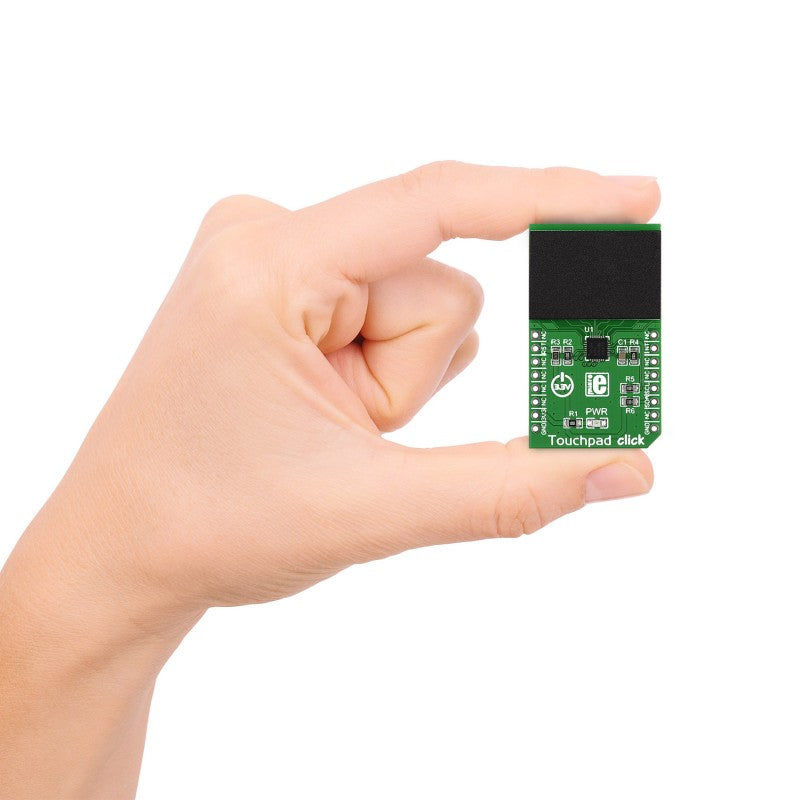

Click board size M (42.9 x 25.4 mm)
