MikroElektronika

Color 2 Click

Color 2 Click

MIKROE-1988

Rs. 1,679.00
Rs. 1,679.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

Out of stock

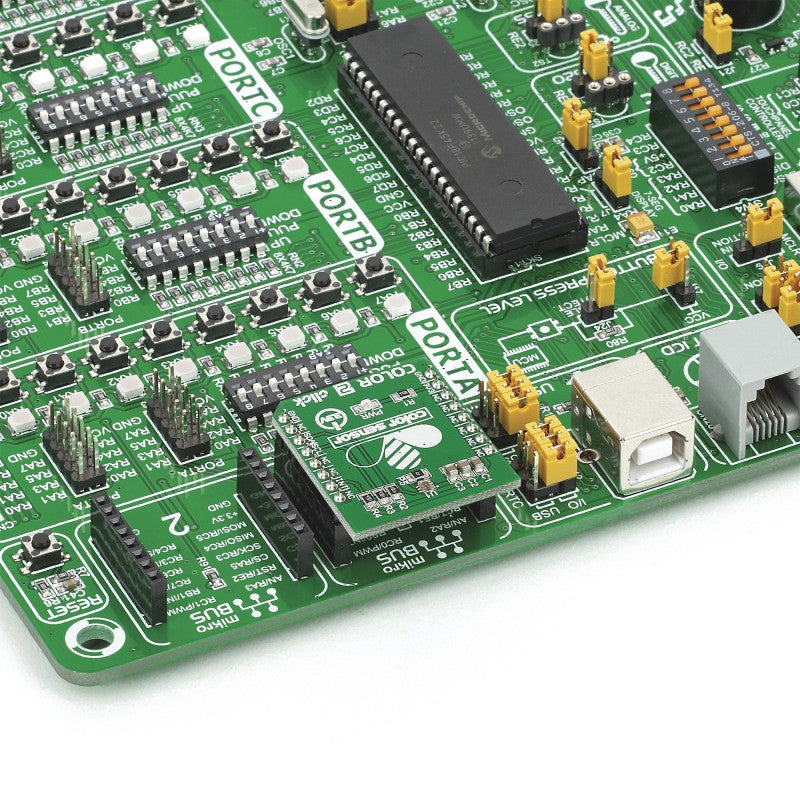

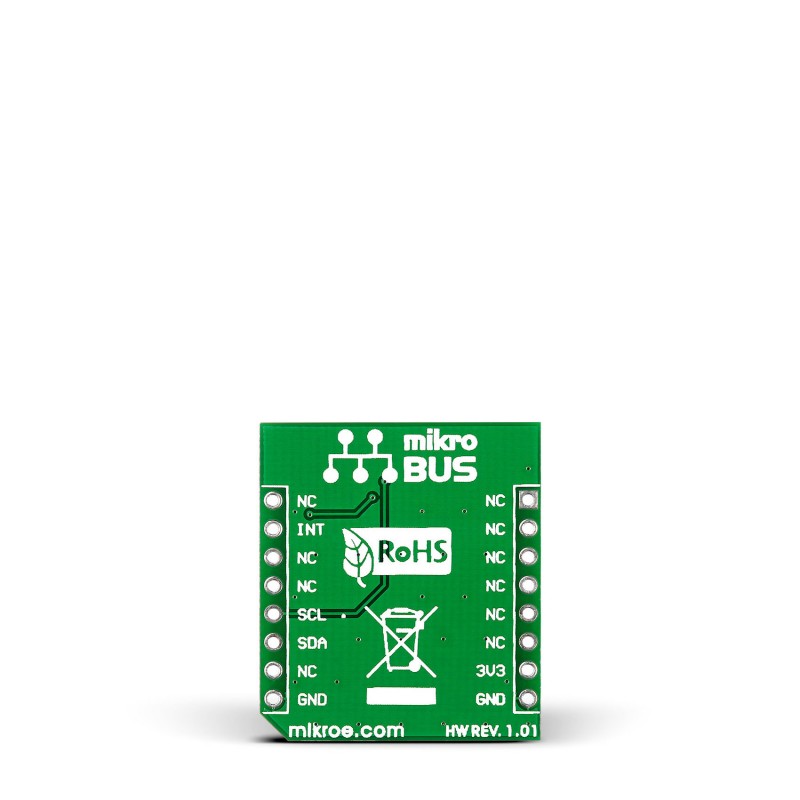

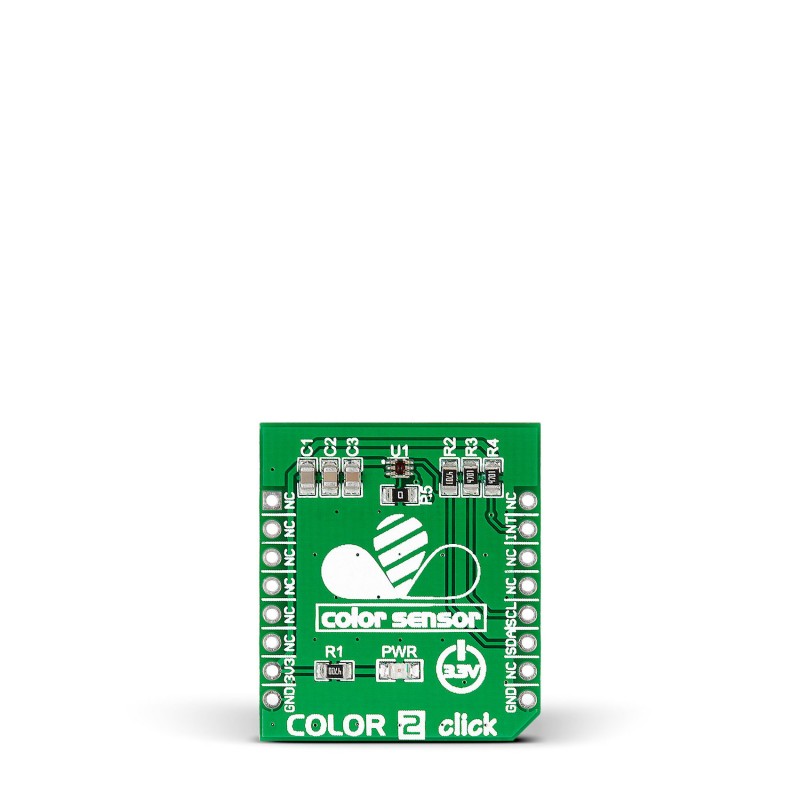

Color 2 click carries the ISL29125 RGB color light sensor. It detects red, green and blue in a variety of lighting conditions, outputting 16-bit resolution data in a measuring range from 5.7 m lux to 10,000 lux. Both the range and output resolution are selectable (narrower vs wider bandwidth, 12 vs 16 bit). The sensor also incorporates a IR blocking filter, allowing Color 2 click to work even under a dark glass cover. The integrated ADC also rejects 50Hz and 60Hz flicker from artificial light sources. The board communicates with the target MCU through the mikroBUS I2C interface (SCL and SDA pins). A programmable interrupt pin is also available. The board is designed to use a 3.3V power supply only.

Specification

Type Optical
Applications Ambient light color detector, dynamic display color balancing, OLED display aging compensation
On-board modules ISL29125 RGB color light sensor
Key Features 16 bit RGB color sensor. 5.7 m lux -10,000 lux range. IR blocking filter
Key Benefits ADC rejects 50Hz and 60Hz flicker from artificial sources. Selectable resolution
Interface GPIO,I2C
Input Voltage 3.3V
Compatibility mikroBUS

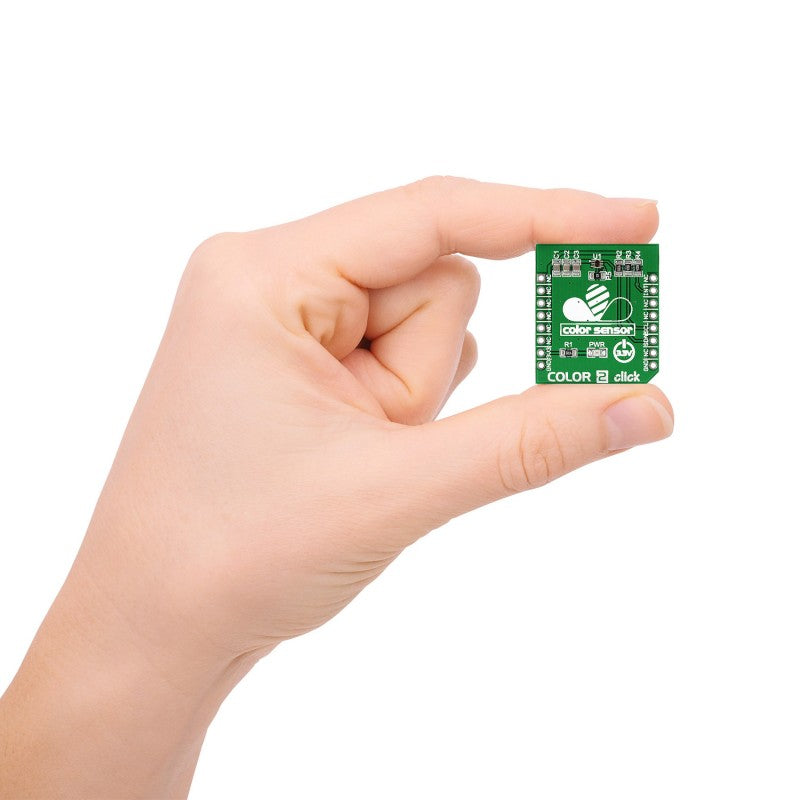

Click board size S (28.6 x 25.4 mm)
