MikroElektronika

3D Hall Click

3D Hall Click

SKU:MIKROE-1987

Regular price Rs. 2,629.00
Regular price Sale price Rs. 2,629.00
Sale Sold out
Tax included.

Out of stock

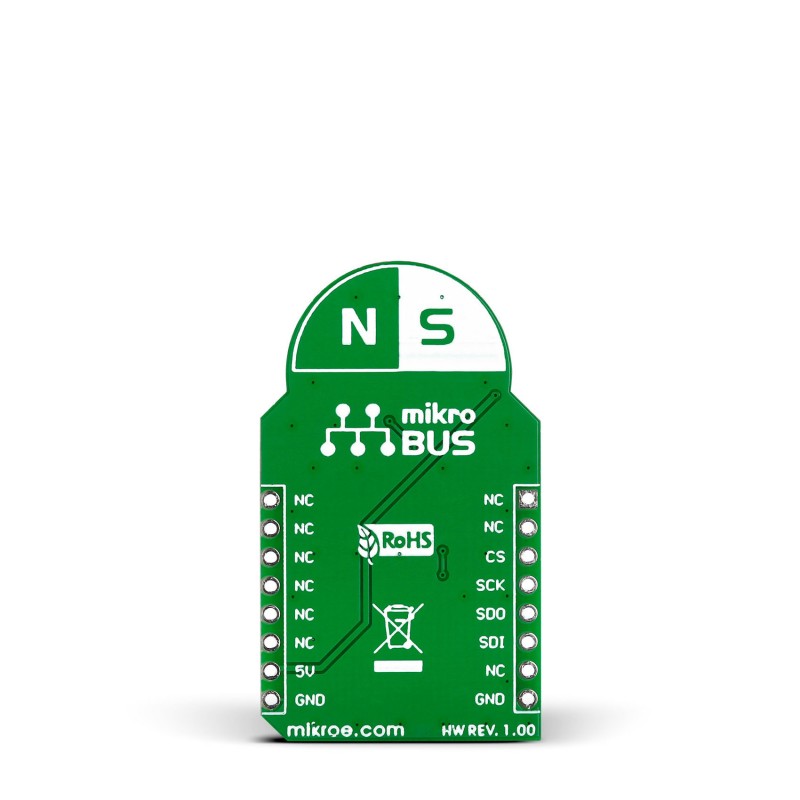

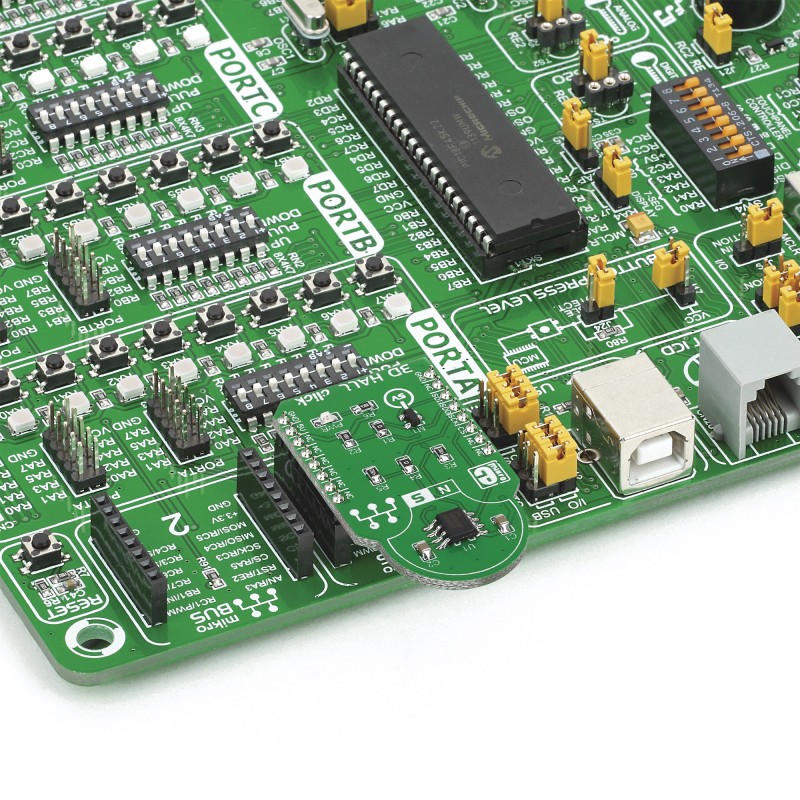

3D Hall click carries the MLX90333 Triaxis Hall sensor, capable of detecting the position of any magnet in nearby space. It does so by being sensitive to three components of flux density (BX, BY, BZ). The chip functions as a contactless position sensor for any type of magnet, capable of measuring its rotational, linear and 3D displacement with a high degree of precision. Contactless coupling ensures resistance against wear and environmental contaminants such as dirt and dust. The on-chip signal processing circuitry simplifies integration. The board communicates with the target MCU through the mikroBUS SPI interface (CS, SCK, MISO, MOSI). The board is designed to use a 5V power supply only.

Specification

Type Hall effect,Magnetic
Applications Robust long-lasting joysticks, knobs, valves, throttles, robotic components or M2M interfaces
On-board modules MLX90333 Triaxis™ Hall sensor
Key Features Detects position of magnet in space
Key Benefits Resistant to dust and dirt
Interface SPI
Input Voltage 5V,5V
Compatibility mikroBUS

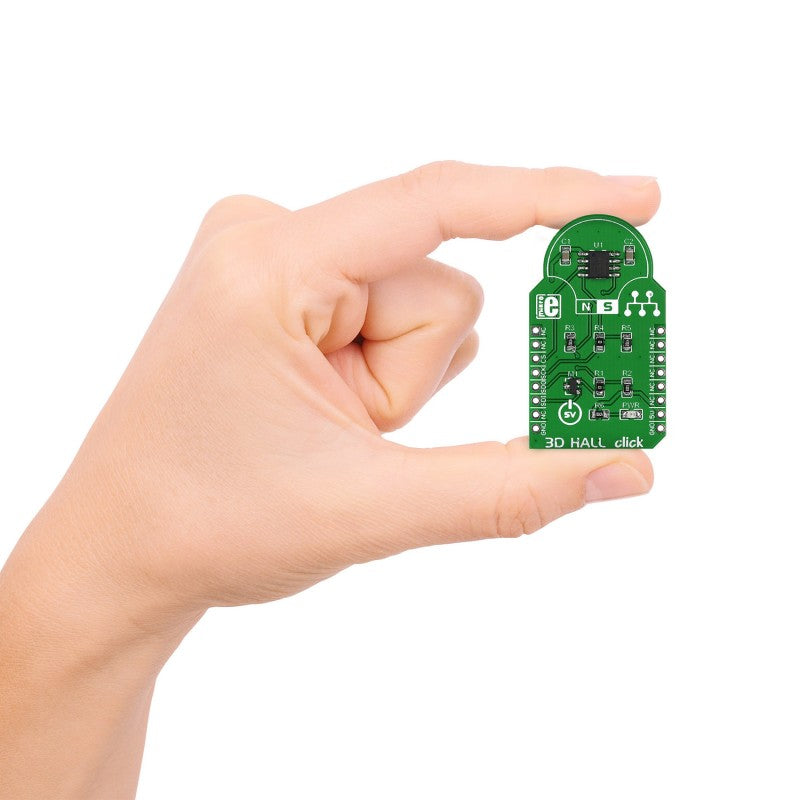

Click board size M (42.9 x 25.4 mm)
