MikroElektronika

USB I2C click

USB I2C click

SKU:MIKROE-1985

Regular price Rs. 1,459.00
Regular price Sale price Rs. 1,459.00
Sale Sold out
Tax included.

1 in stock

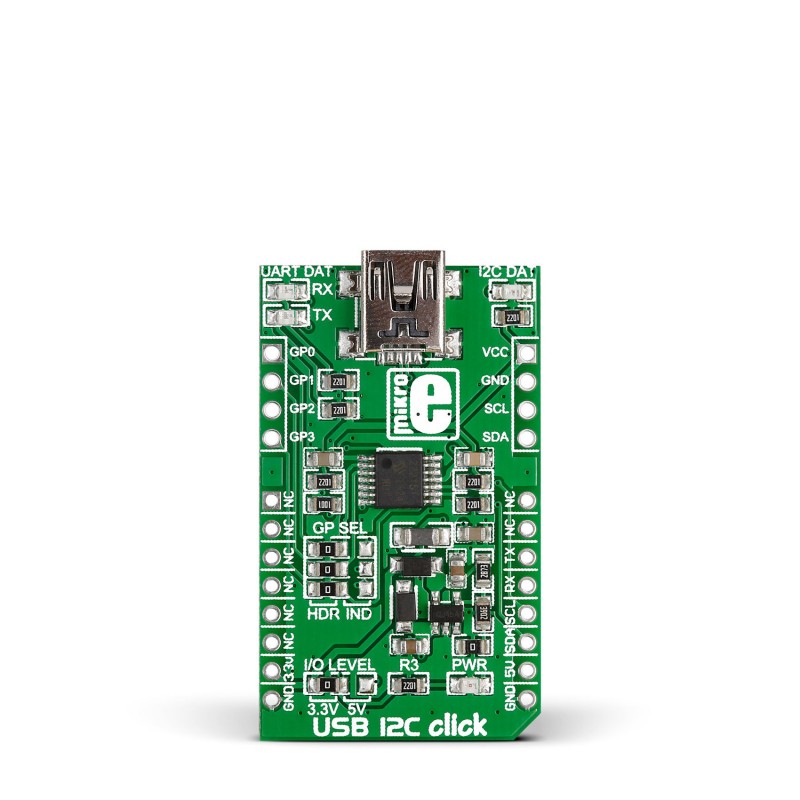

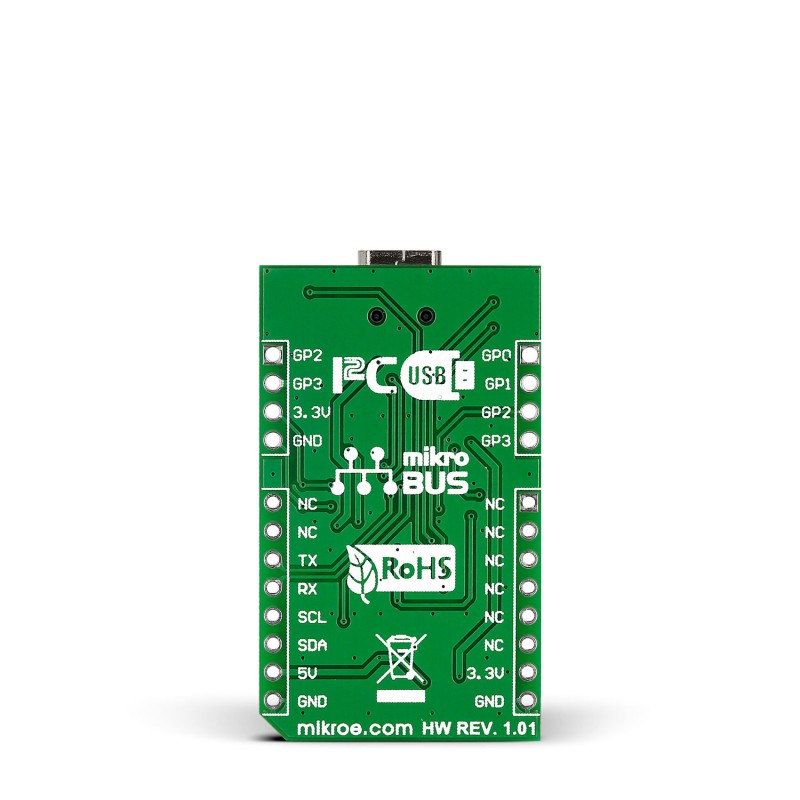

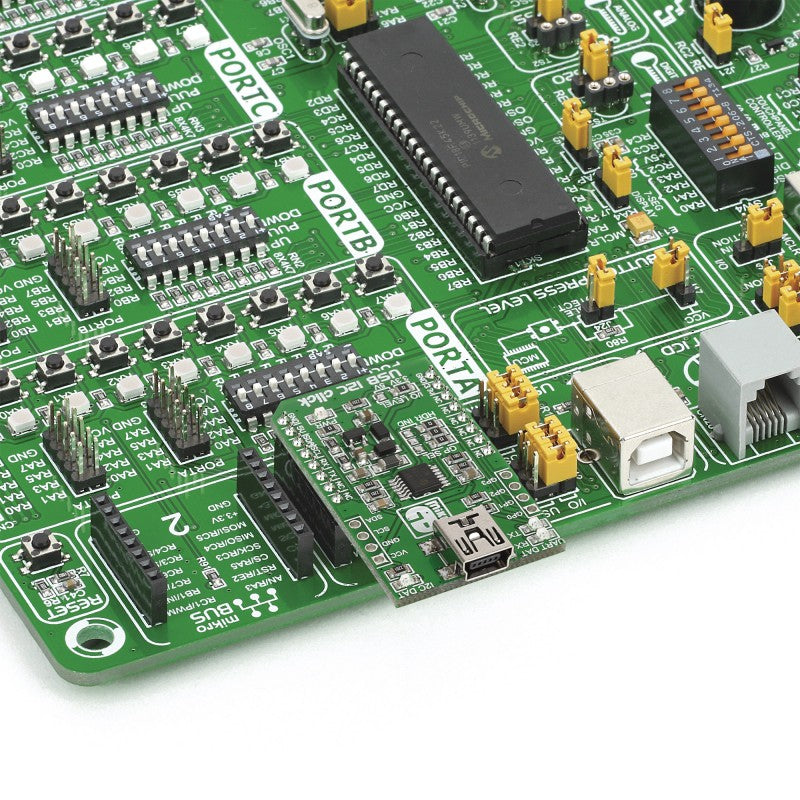

USB I2C click carries an MCP2221 USB-to-UART/I2C converter. The chip supports full-speed USB (12 Mb/s), I2C with up to 400 kHz clock rates and UART baud rates between 300 and 115200. The board communicates with the target MCU through mikroBUS UART (RX, TX) or I2C (SCL, SDA) interfaces. In addition to mikroBUS, the edges of the board are lined with additional GPIO and I2C pins. It can operate on 3.3V or 5V logic levels.

Specification

Type USB
Applications USB to I2C or UART conversion
On-board modules MCP2221 USB-to-UART/I2C converter
Key Features Full-speed USB, 400 kHz I2C, 300-115200 UART baud rates. USB has 128-byte buffer. Additional GPIO and I2C pins
Key Benefits Microchip provides software utility
Interface I2C,UART
Input Voltage 3.3V or 5V
Compatibility mikroBUS
Click board size M (42.9 x 25.4 mm)

Downloads

USB I2C click examples

USB I2C click user manual

USB I2C click schematic
