MikroElektronika

CEC1302 Clicker

CEC1302 Clicker

SKU:MIKROE-1970

Regular price Rs. 2,629.00
Regular price Sale price Rs. 2,629.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

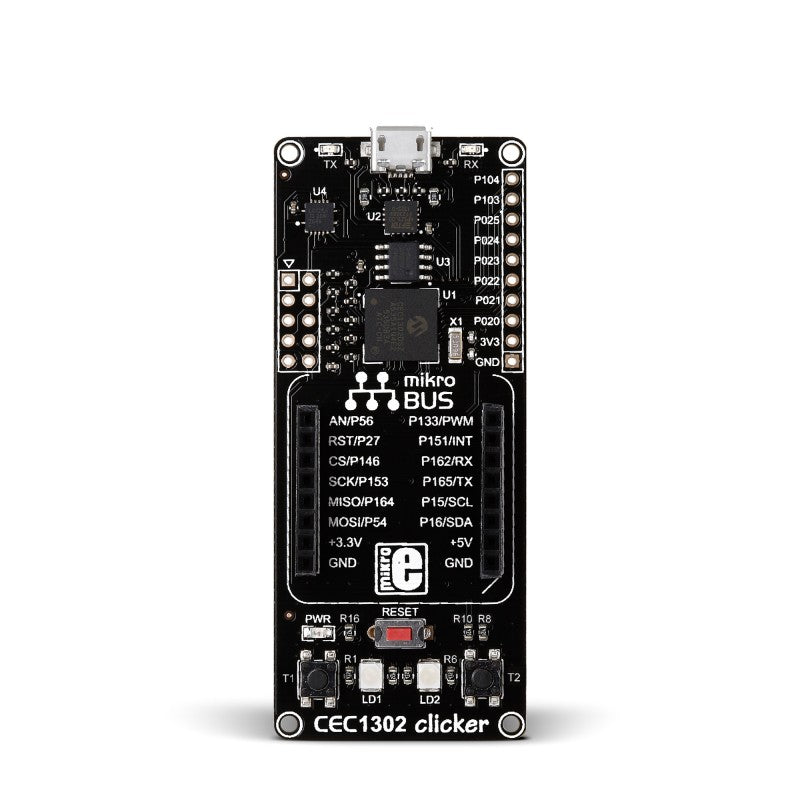

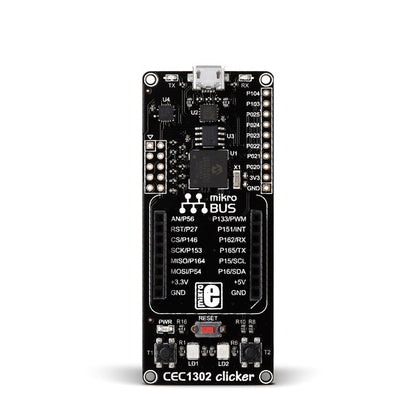

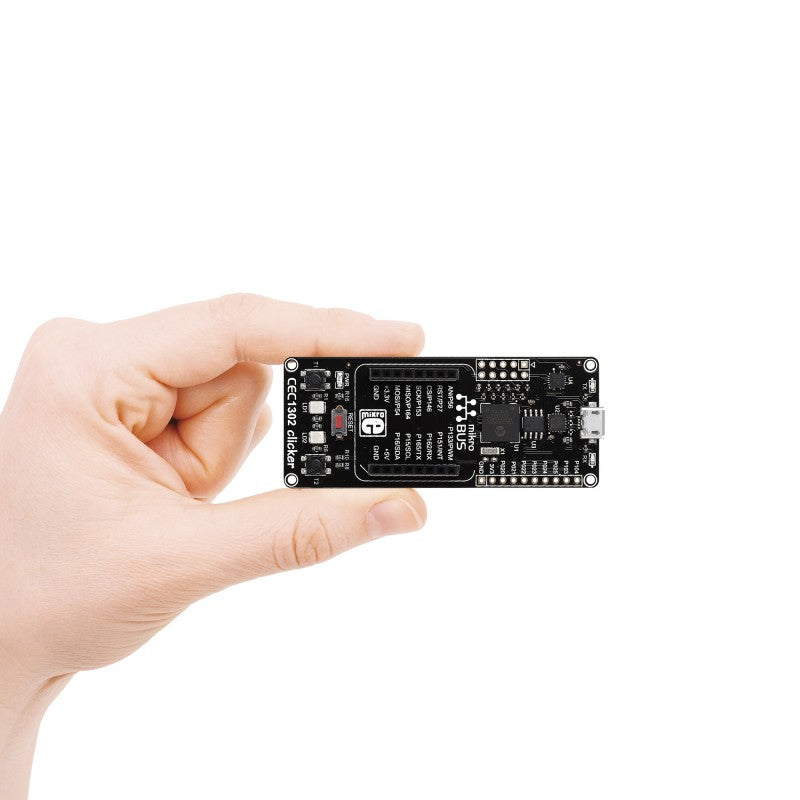

CEC1302 clicker is an amazingly compact starter development kit which brings click board™ connectivity to the 32-bit ARM® Cortex™-M4 CEC1302 microcontroller with an integrated cryptographic engine. Board features all you need to get started: 32-bit CEC1302 microcontroller, USB-UART connector, two LEDs and push buttons, reset button and headers for interfacing with external electronics.

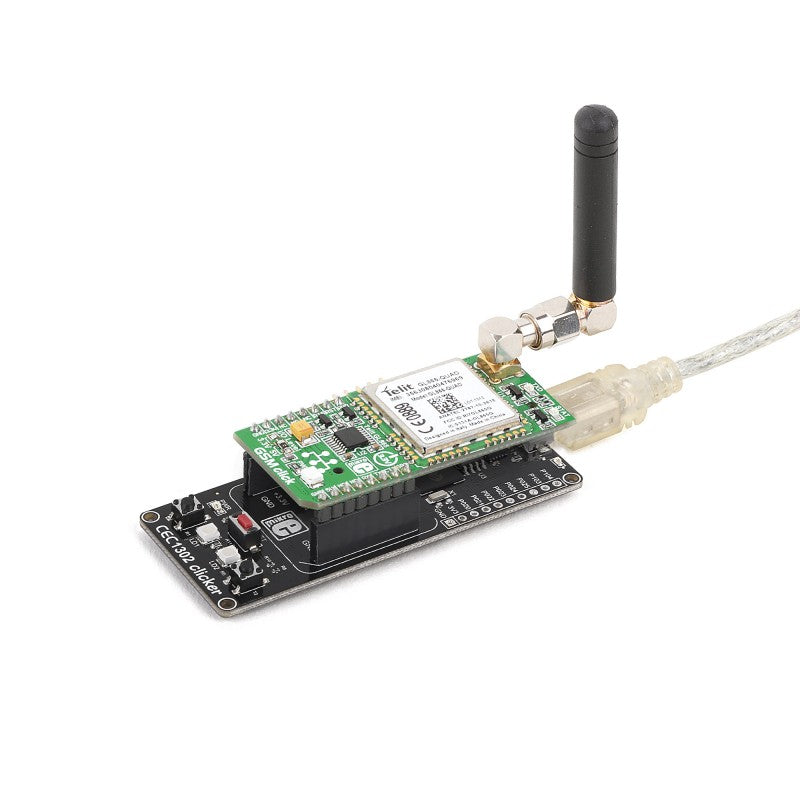

Hundreds of possibilities with click boards. With mikroBUS™ socket, you can take advantage of the huge potential of click™ boards, the constantly expanding range of over 200 add-on boards.

Programming. To make your prototyping experience as convenient as possible, CEC1302 clicker is preprogrammed with a UART bootloader. Just download our mikroBootloader application and you’re ready to upload your firmware. On-board mikroProg for CEC connector enables programming through external programmer/debugger.

Specification

Applications This compact board brings flexibility of click boards to a microcontroller with an integrated cryptographic engine, making it a perfect starter kit for trying out its features
Architecture ARM (32-bit)
MCU CEC1302
MCU speed 48MHz
MCU Memory 128kB SRAM, 32kB boot ROM
On-board modules 1 x USB MINI-B connector, 2 x LEDs, 2 x push buttons, 1 x reset button
Programming Preprogrammed with UART bootloader. Also features mikroProg for CEC connector
Input Voltage 5V (via USB)
