MikroElektronika

TouchKey click

TouchKey click

SKU:MIKROE-1906

Regular price Rs. 1,259.00
Regular price Sale price Rs. 1,259.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

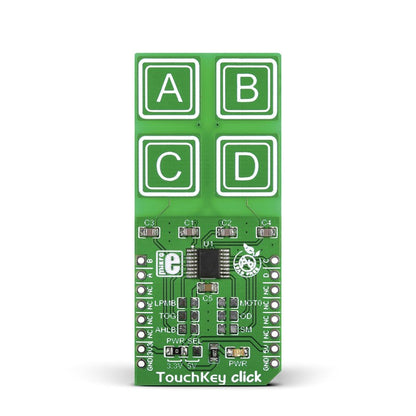

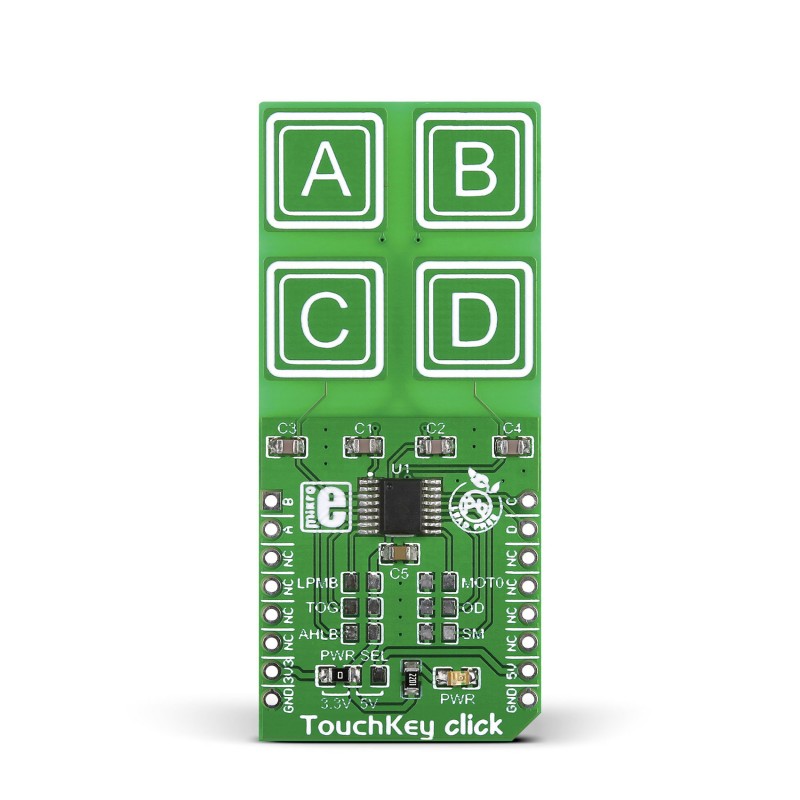

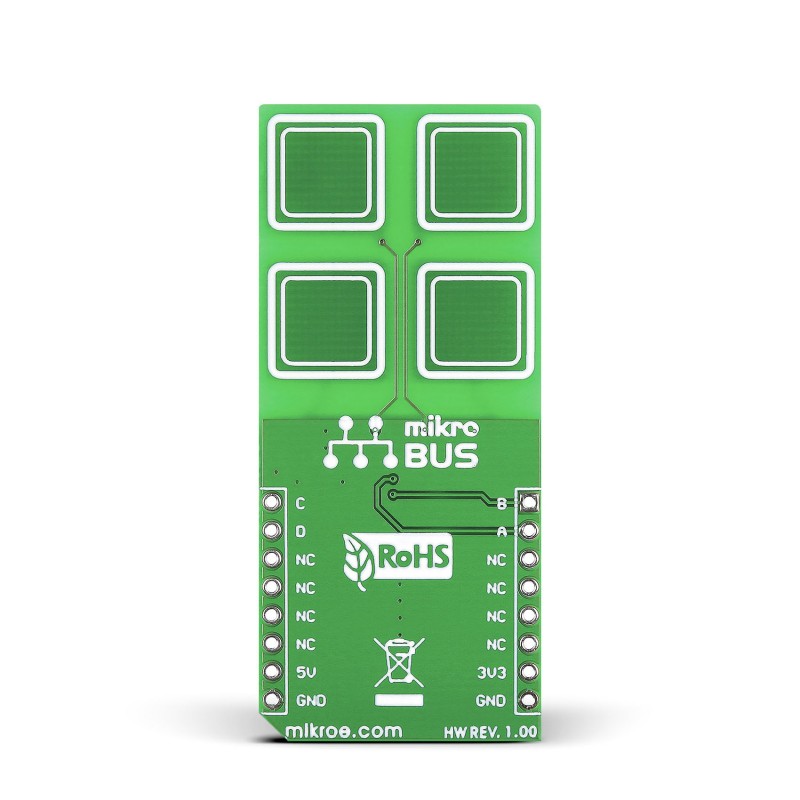

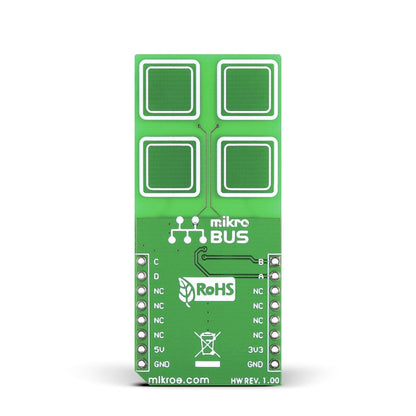

Touchkey click has four capacitive pads powered by TTP224, a touchpad detector IC. Capacitive buttons like these can be toggled even when placed under a layer of glass or paper. The board outputs an interrupt signals for each pad: OUTA, OUTB, OUTC and OUTD (in place of default mikroBUS RST, AN, PWM and INT pins, respectively). The TTP224 IC has several operating modes which are accessed through onboard jumpers. Modes include Fast or low power (the response time is just 100mS at fast mode and 200mS at low power). Single-key or multi-key, direct or toggle buttons, and so on.

Specification

Type Capacitive
Applications A replacement for mechanical buttons, it can function even when covered with a layer of glass or other material
On-board modules TTP224 touchpad detector IC
Key Features Four capacitive touch pads. Outputs four interrupt signals
Key Benefits Registers inputs even when covered by a sheet of glass. Several operating modes configurable through jumpers
Interface GPIO
Input Voltage 3.3V or 5V

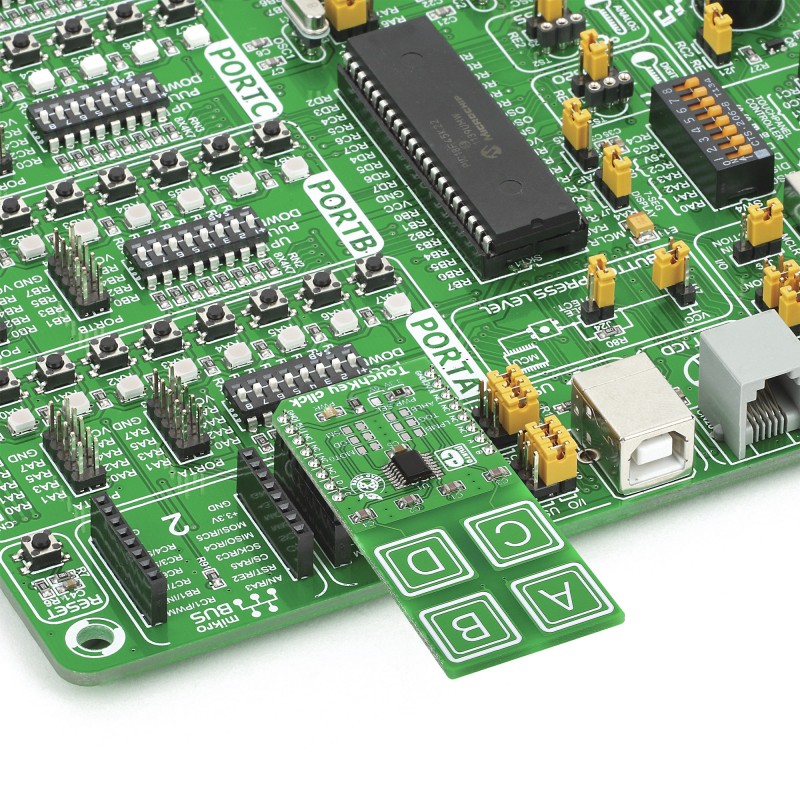

Compatibility mikroBUS

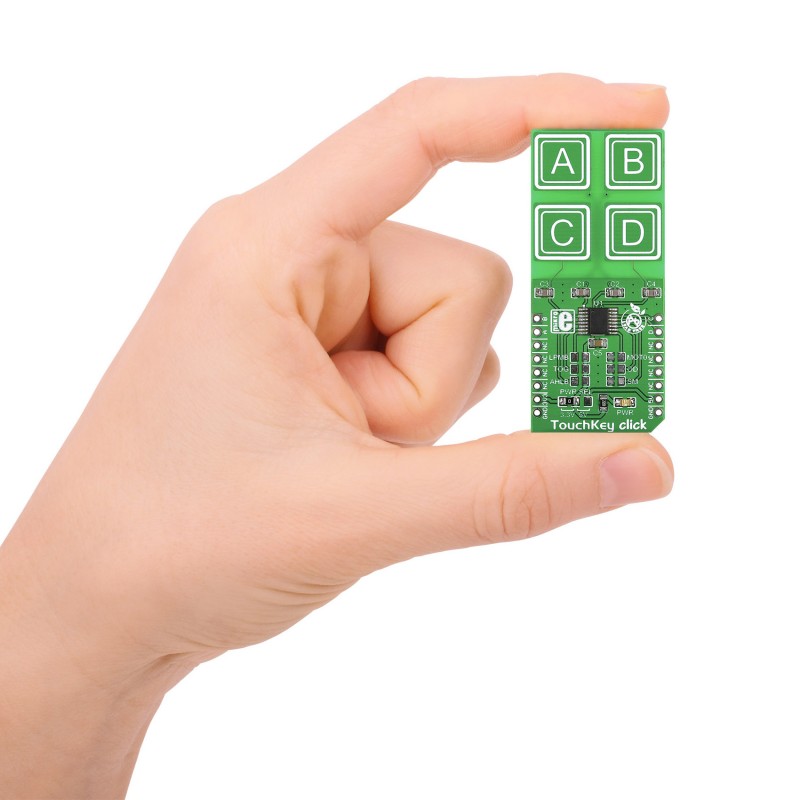

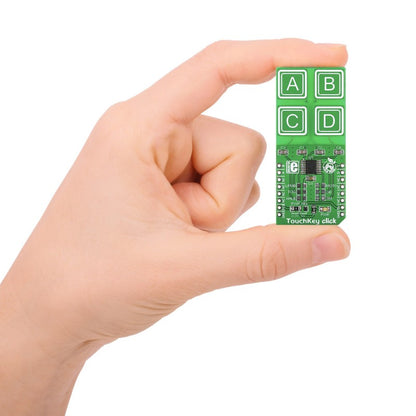

Click board size L (57.15 x 25.4 mm)
