MikroElektronika

GNSS3 click

GNSS3 click

SKU:MIKROE-1895

Regular price Rs. 4,099.00
Regular price Sale price Rs. 4,099.00
Sale Sold out
Tax included.

Out of stock

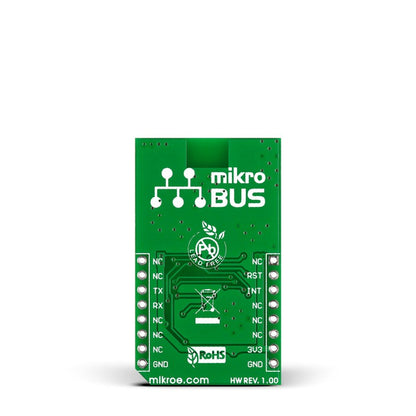

GNSS3 click carries SIMCom’s SIM33ELA standalone GNSS module with an integrated antenna (and a connector for an external one). GNSS stands for Global Navigation Satellite System, an umbrella term that describes both the United States GPS and the Russian GLONASS global positioning systems. The SIM33ELA module has MTK’s high sensitivity navigation engine. It features EPO™ orbit prediction, AGPS, SBAS ranging (WAAS, EGNOS, GAGAN, MSAS). GNSS3 click communicates with the target MCU through mikroBUS UART pins (RX, TX), with additional functionality provided through RST and INT pins. The board uses a 3.3V power supply.

Specification

Type GPS
Applications Navigation devices based on GPS and GLONASS global positioning systems
On-board modules SIMCom’s SIM33ELA with integrated antenna
Key Features MTK high sensitivity navigation engine. TTFF: 28 seconds (cold), 26s (warm), less than 1 (hot). Sensitivity: -165 dBm tracking; -160 dBm reacquisition; -146 dBm cold start
Key Benefits EPO™ orbit prediction. EASY™ self-generated orbit prediction
Interface GPIO,UART
Input Voltage 3.3V
Compatibility mikroBUS
Click board size M (42.9 x 25.4 mm)
