MikroElektronika

I2C 1-Wire click

I2C 1-Wire click

SKU:MIKROE-1892

Regular price Rs. 2,939.00
Regular price Sale price Rs. 2,939.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

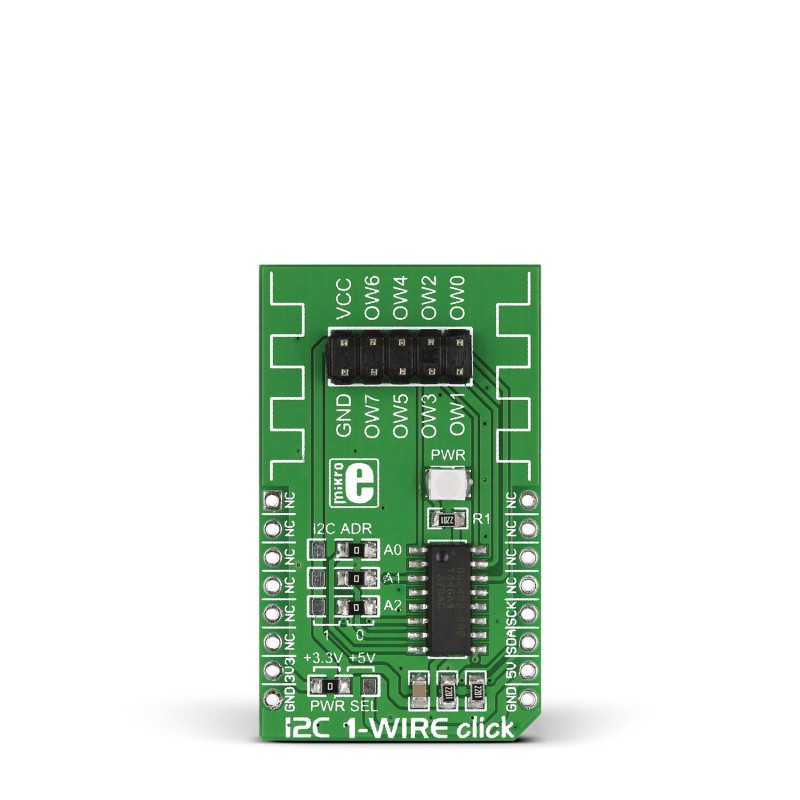

I2C 1-Wire click carries DS2482-800, a “bridge device” that performs bidirectional conversions between I2C masters and 1-Wire slave devices. These can be EEPROM chips, temperature sensors and similar devices that have momentary high source current modes. I2C 1-Wire click enables any host with I2C to generate properly timed 1-Wire waveforms to its slave devices. The I2C interface (mikroBUS SCL and SDA pins) supports both standard I2C (100kHz max) and fast (400kHz) communication speeds. In addition to the mikroBUS™ socket, I2C 1-Wire click has an 8-channel pinout (each pin an independently operated 1-Wire I/O). The board is designed to use either a 3.3V or 5V power supply.

Specification

Type 1-wire
Applications Controlling up to eight 1-Wire devices through a single I2C interface
On-board modules DS2482-800
Key Features 8 independent 1-Wire I/O pins
Key Benefits Supports both standard and fast I2C speeds (100 kHz max and400 kHz max, respectivelly)
Interface I2C
Input Voltage 3.3V or 5V
Compatibility mikroBUS
Click board size M (42.9 x 25.4 mm)

Downloads

I2C 1 Wire click Example

I2C 1 Wire click User Manual
