MikroElektronika

RTC4 click

RTC4 click

SKU:MIKROE-1891

Regular price Rs. 2,209.00
Regular price Sale price Rs. 2,209.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

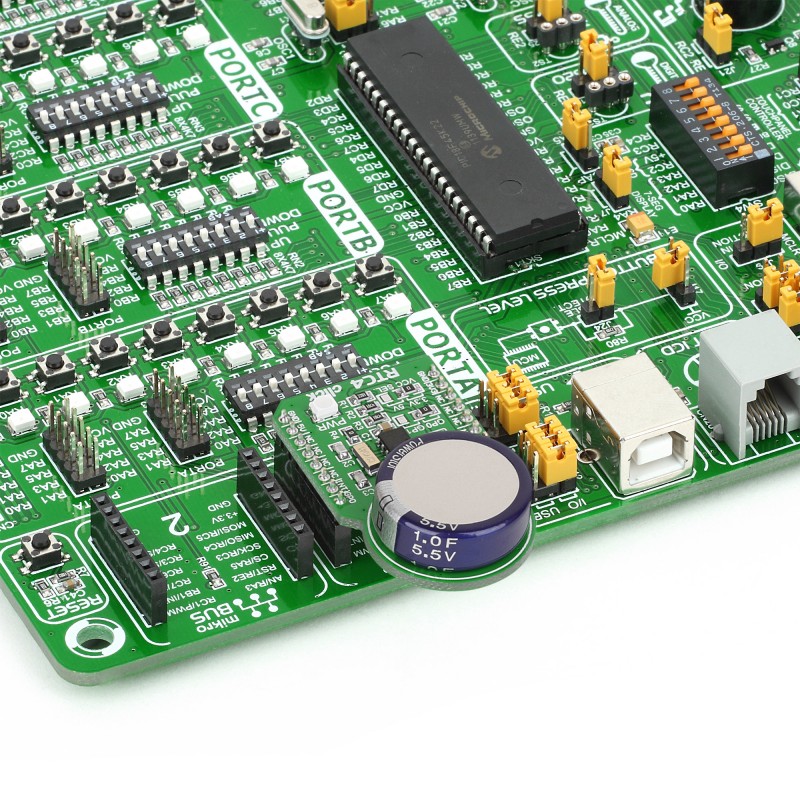

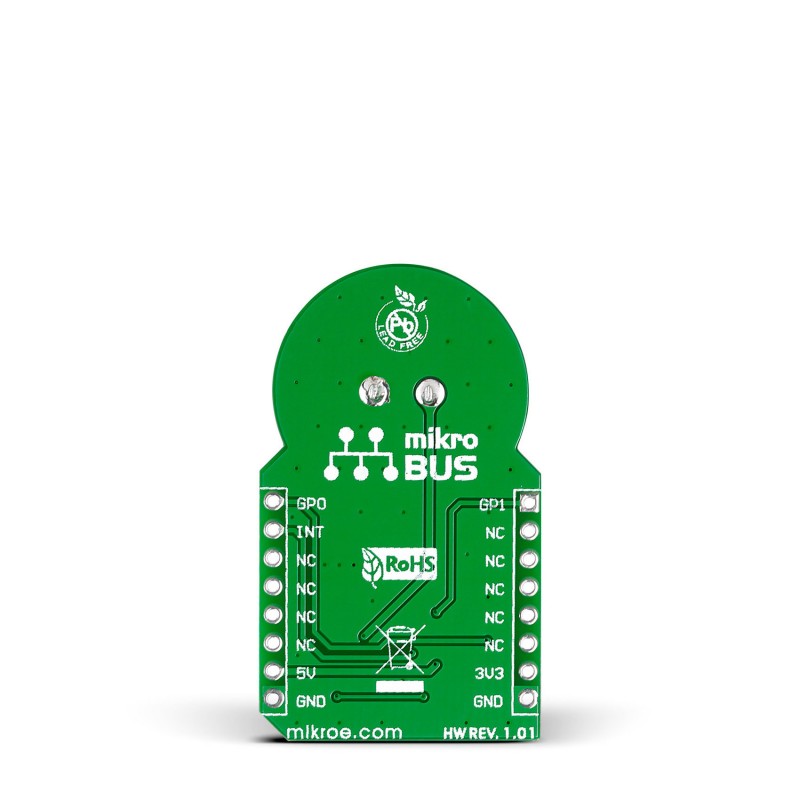

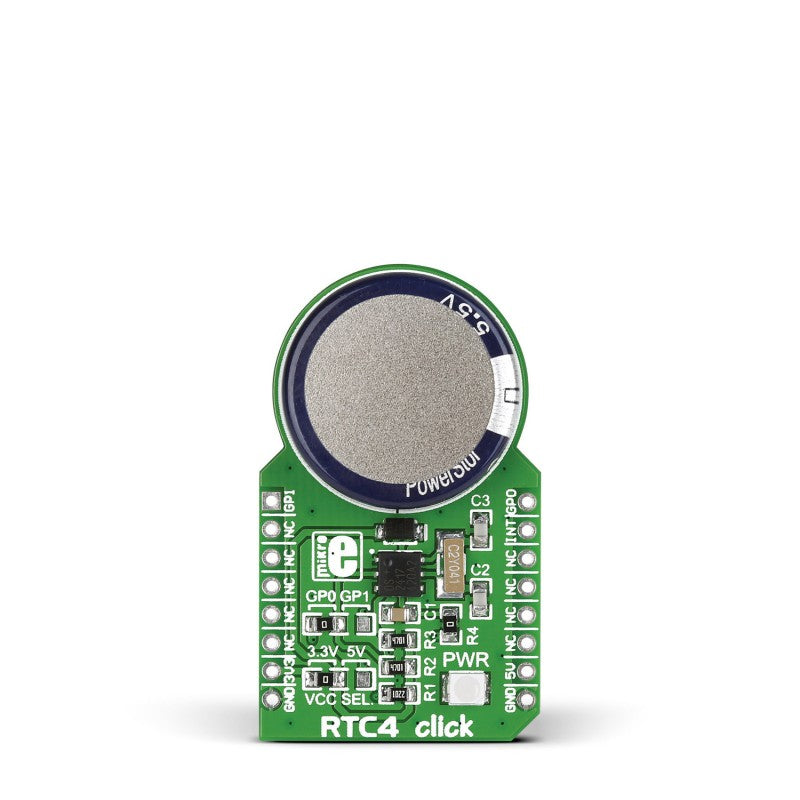

RTC4 click carries DS2417, a real time clock/calendar with a 1-Wire MicroLAN interface and a programmable interrupt for system output. The clock frequency is derived from an onboard 32.768KHz oscillator. An integrated backup energy source maintains a charge with an onboard coin cell supercapacitor. The clock has an accuracy of +/-2 minutes per month at a 25 degrees Celsius temperature. Depending on the position of the onboard jumper, RTC4 click communicates with the target board MCU either through mikroBUS AN or PWM pin (here, GPI01, GPIO0), plus the INT pin. The board is designed to use either a 3.3V or 5V power supply.

Specification

Type 1-wire,RTC
Applications Applications which require real-time clocks, calendars and programmed alarms, all through a 1-Wire interface
On-board modules DS2417, a real time clock/calendar with a 1-Wire MicroLAN interface
Key Features 16.3 kbits per second
Key Benefits Programmable interrupt for system wakeup
Interface GPIO
Input Voltage 3.3V or 5V
Compatibility mikroBUS

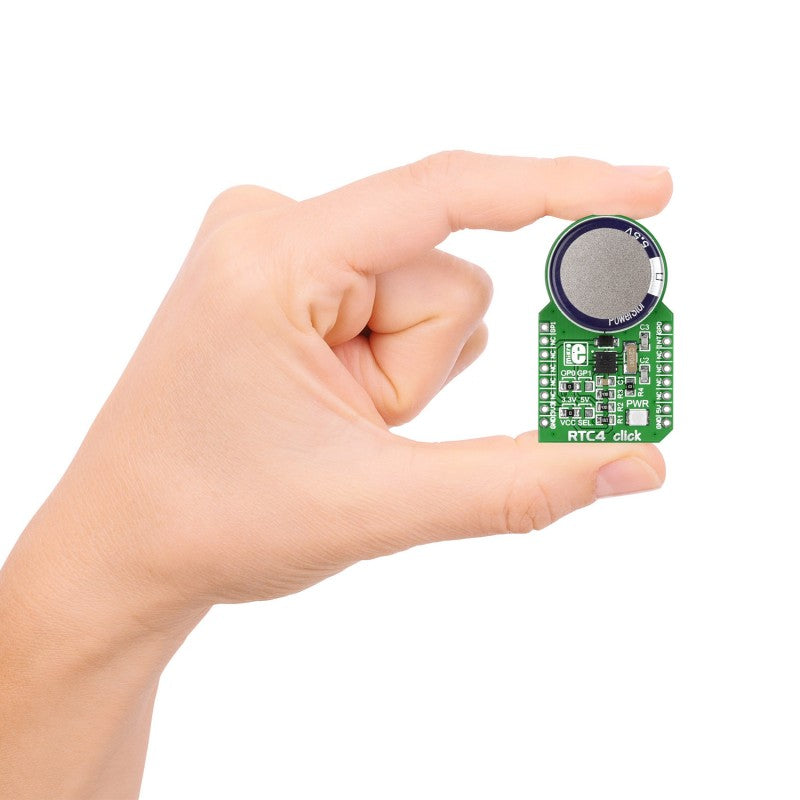

Click board size M (42.9 x 25.4 mm)
