MikroElektronika

AlphaNum R click

AlphaNum R click

SKU:MIKROE-1864

Regular price Rs. 1,579.00
Regular price Sale price Rs. 1,579.00
Sale Sold out
Tax included.

Out of stock

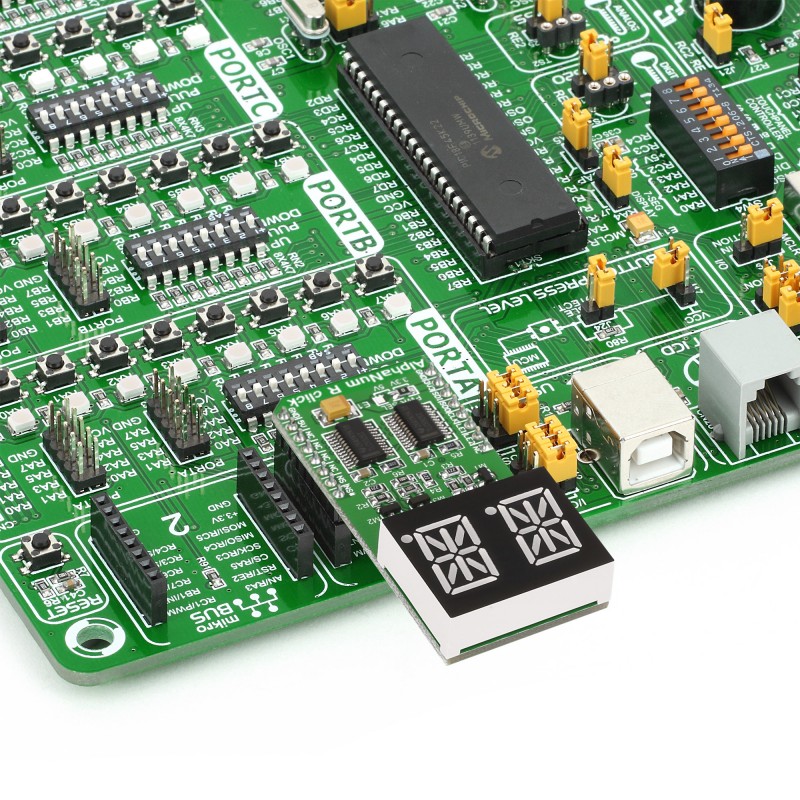

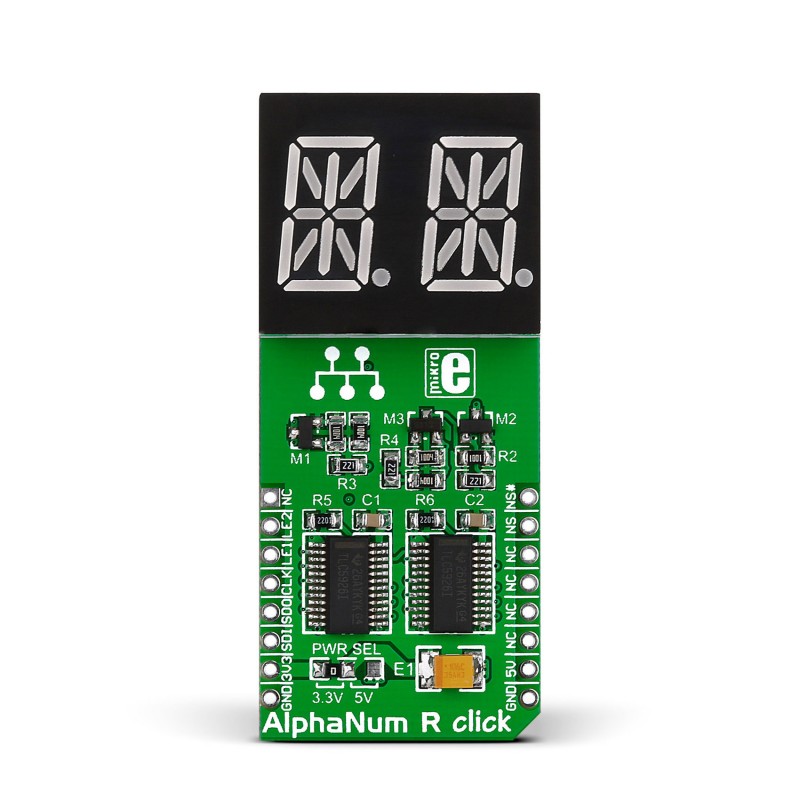

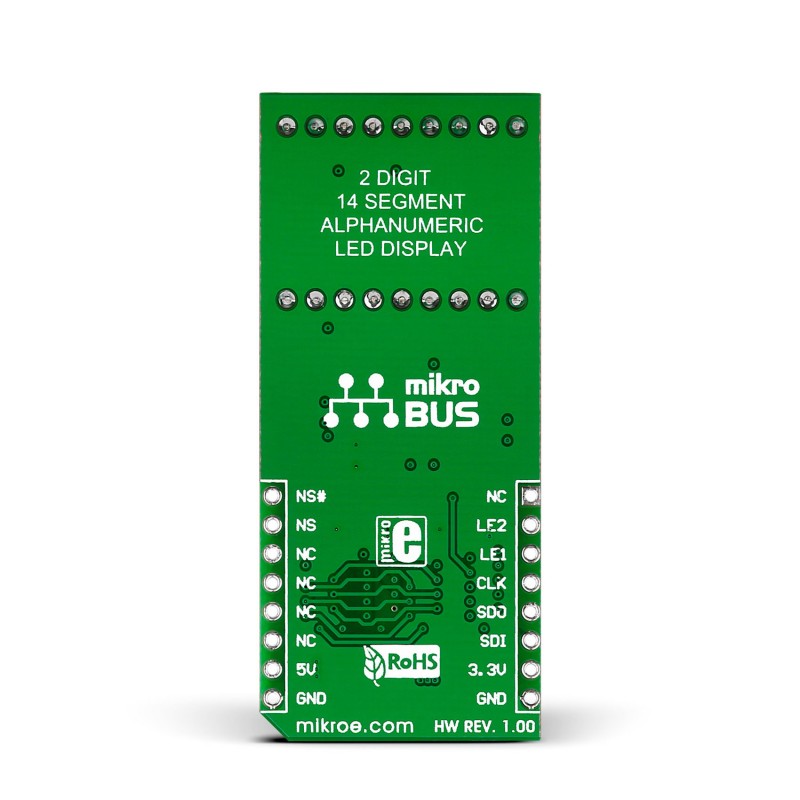

AlphaNum click is a simple solution for adding 14-segment alphanumeric display to your device. The board carries two TLC5926 16-bit Constant-Current LED sink Drivers as well as a dual character red LED 14-segment display (with two additional segments for commas). AlphaNum click communicates with the target board through mikroBUS RST, CS, SCK, MISO, MOSI, PWM and INT pins (marked here as LE2, LE1, CLK, DOUT, DIN, NUMSEL and NUMSEL# respectively). The board is designed to use either a 3.3V or 5V power supply.

Specification

Type LED Segment
Applications 14-segment displays, also known as starburst displays, are capable of legibly rendering the ISO Latin alphabet
On-board modules Two TLC5926 16-bit Constant-Current LED sink Drivers. dual character red LED 14-segment display
Key Features Two additional segments for commas
Key Benefits Suitable for displaying both letters and digits. Clear and legible LED display
Interface GPIO,SPI
Input Voltage 3.3V or 5V
Compatibility mikroBUS

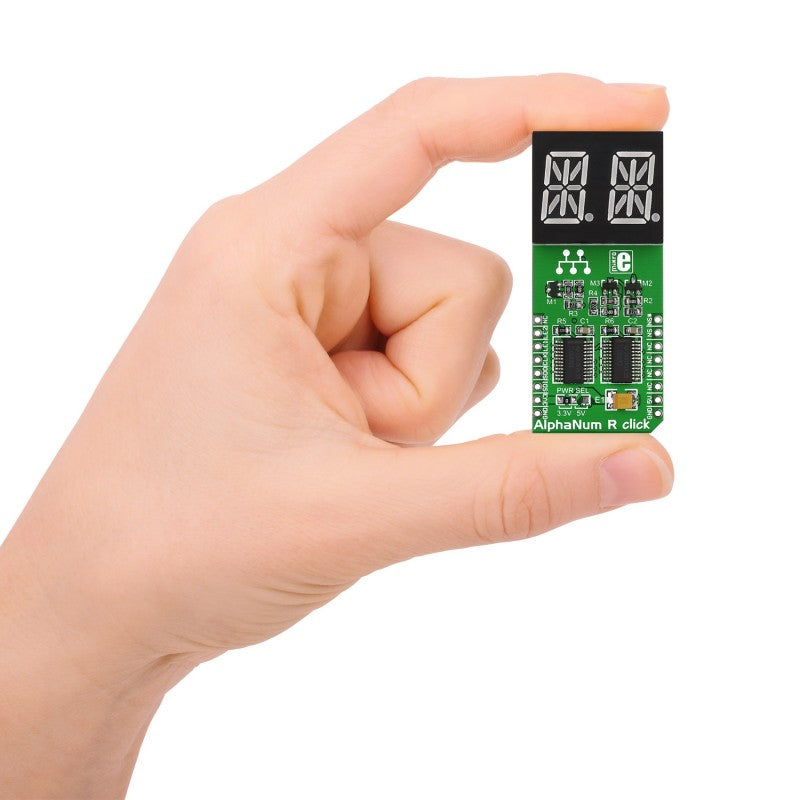

Click board size L (57.15 x 25.4 mm)
