MikroElektronika
mikroBus Cape
mikroBus Cape
SKU:MIKROE-1857
Regular price
Rs. 939.00
Regular price
Sale price
Rs. 939.00
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Share

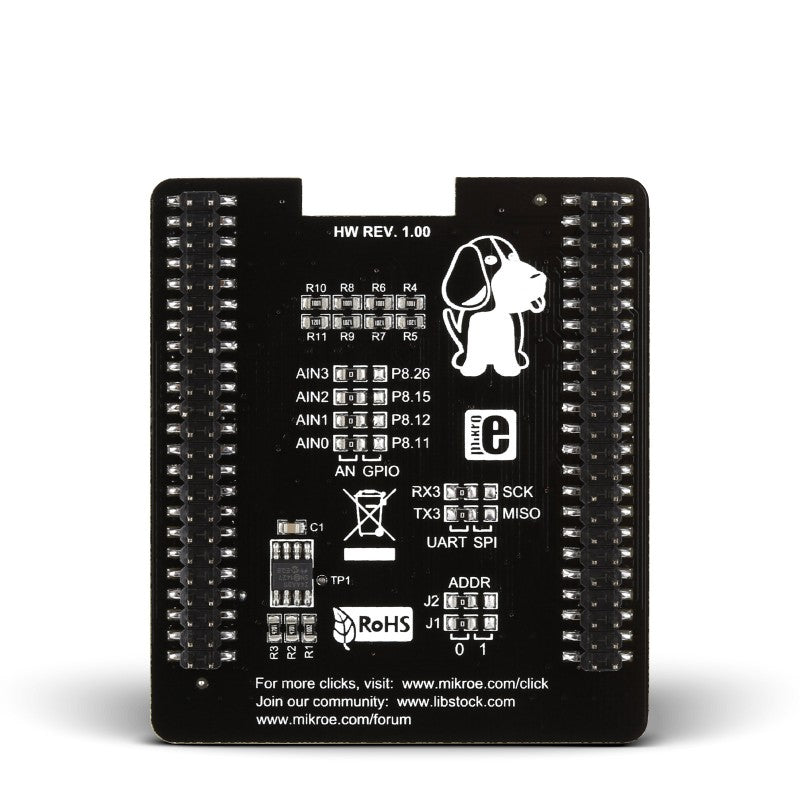

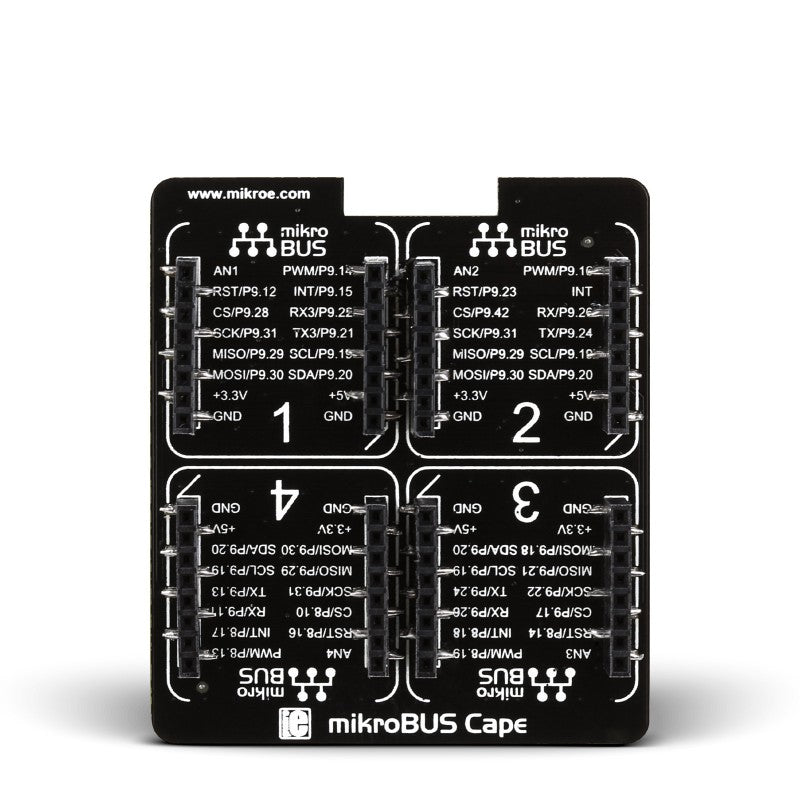

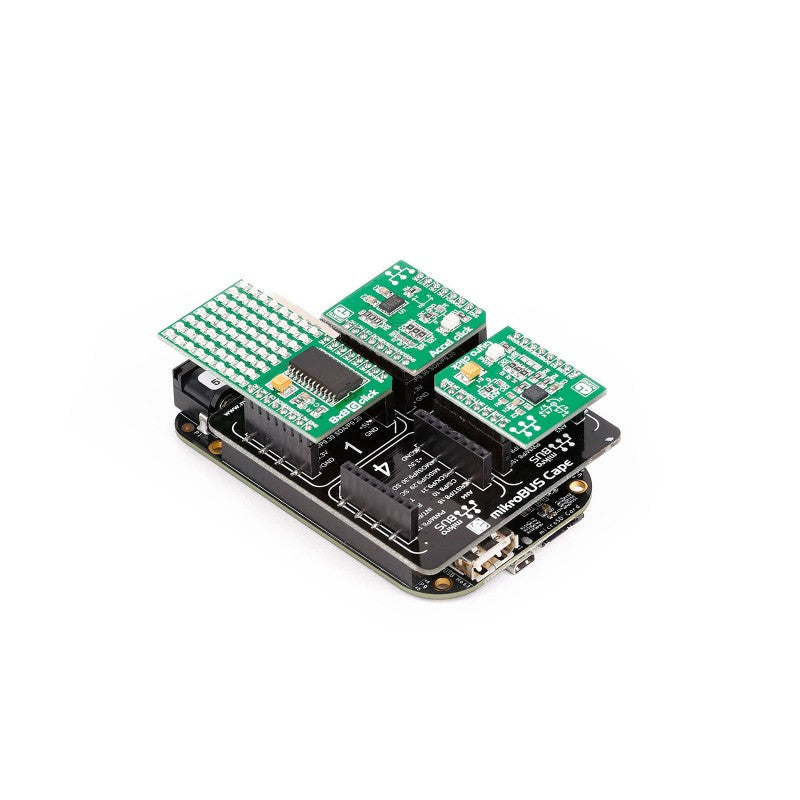

The mikroBUS cape is an extension for Beaglebone Black, the popular low-cost development platform running Linux. This simple cape has four mikroBUS sockets that allow you to connect more than 130 different types of click boards to BeagleBone. Quickly add functionalities like GSM, GPS, WiFi, ZigBee, Bluetooth, or thunder detection, proximity and color sensing, Hall current detection, speech recognition and many many other. To fully utilize Beaglebone’s pinout, two additional sets of jumpers allow you to 1) switch the AN pins to GPIO on each mikroBUS™ socket; 2) choose whether to enable UART pins on the first socket or SPI pins on the third socket.
Specification
Type | Shield |
Applications | The mikroBUS cape allows you to use click boards from MikroElektronika on your BeagleBone black |
On-board modules | Four mikroBUS sockets |
Key Features | EEPROM chip. Configurable pins |
Key Benefits | Brings click board connectivity to BeagleBone Black |
Input Voltage | 3.3V or 5V |
Compatibility | BeagleBone |
