MikroElektronika

RTC3 click

RTC3 click

SKU:MIKROE-1839

Regular price Rs. 2,209.00
Regular price Sale price Rs. 2,209.00
Sale Sold out
Tax included.

Out of stock

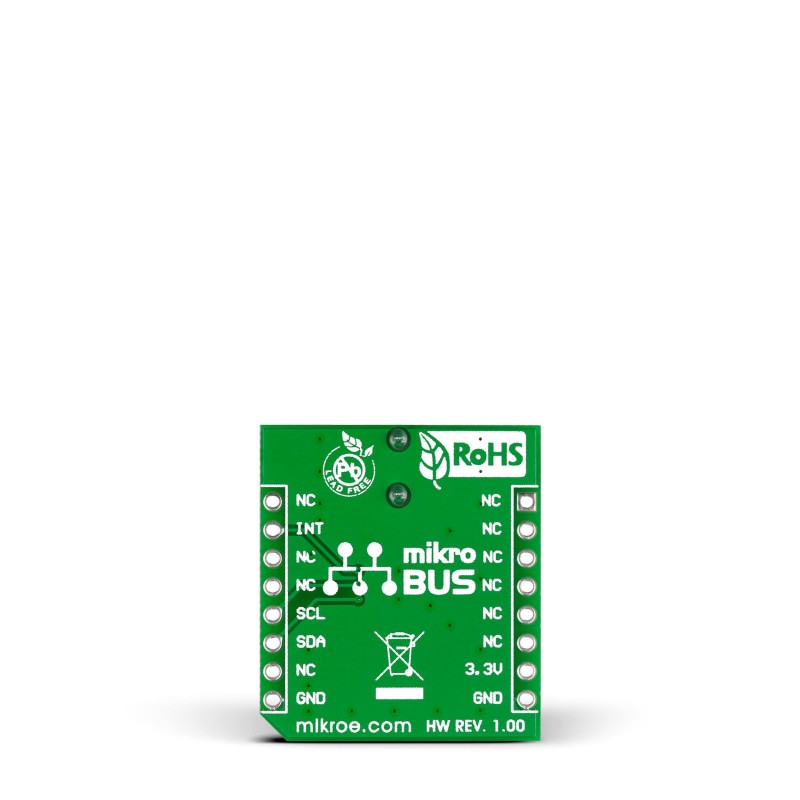

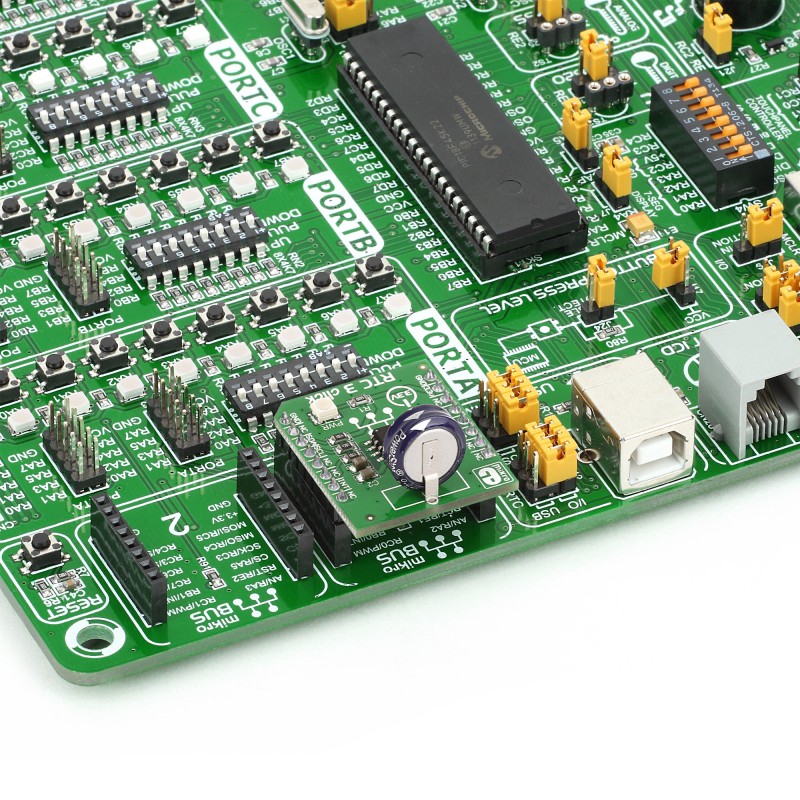

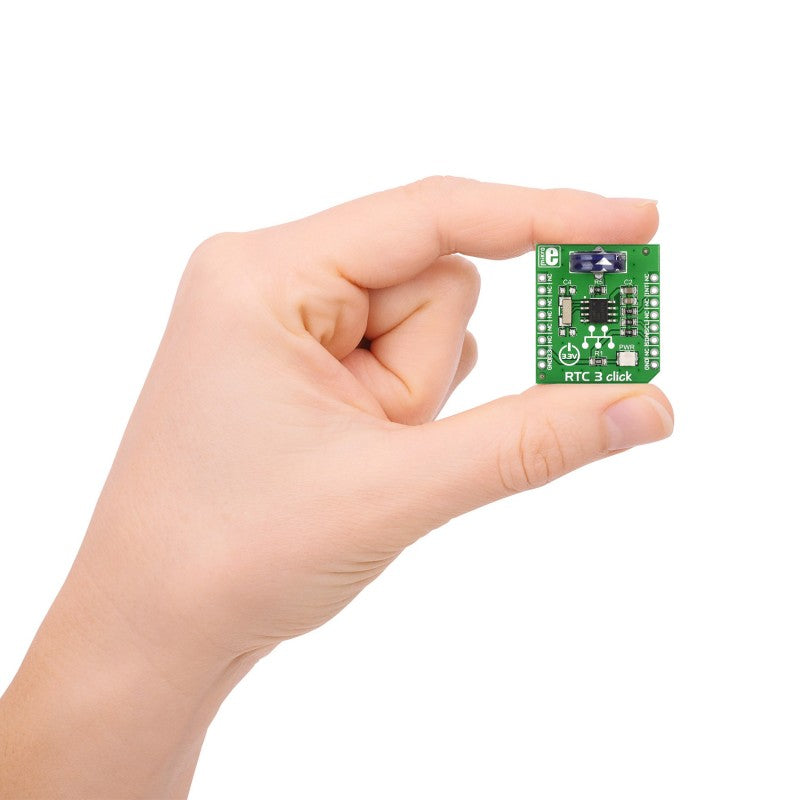

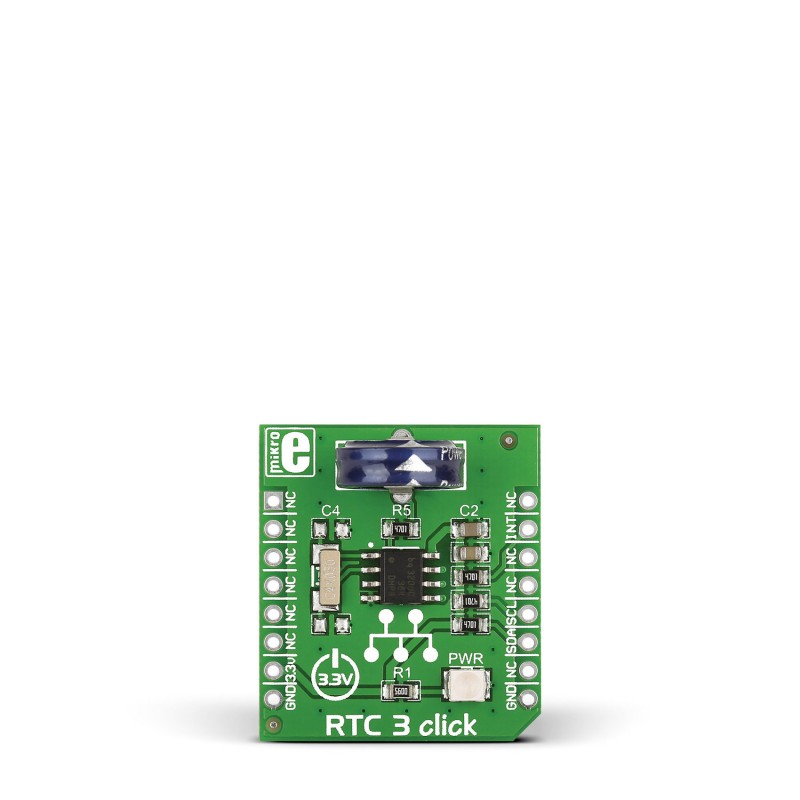

RTC3 click carries BQ32000, a real time clock with an integrated trickle charge circuit for automatic switchover to a backup power supply (the circuit maintains the backup charge with an onboard super capacitor). The clock frequency is derived from an onboard 32.768KHz oscillator. RTC3 click communicates with the target board microcontroller through mikroBUS I2C lines: SCL, SDA. In addition, the INT pin serves as a configurable interrupt output. The board is designed to use a 3.3V power supply only.

Specification

Type RTC
Applications Board is ideal for applications which require real-time clocks, calendars and programmed alarms
On-board modules BQ32000 RTC IC from Texas Instruments
Key Features Integrated trickle charge circuit. Communicates with target MCU through I2C
Key Benefits Automatic switchover to backup power supply
Interface GPIO,I2C
Input Voltage 3.3V
Compatibility mikroBUS
Click board size S (28.6 x 25.4 mm)
