MikroElektronika

ROTARY G click

ROTARY G click

SKU:MIKROE-1822

Regular price Rs. 1,259.00
Regular price Sale price Rs. 1,259.00
Sale Sold out
Tax included.

Out of stock

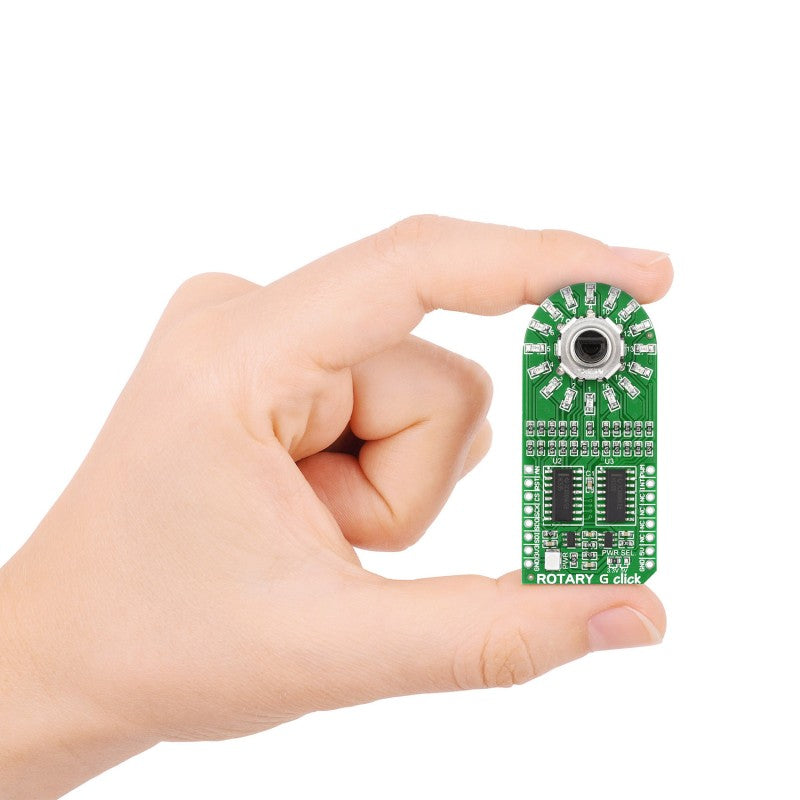

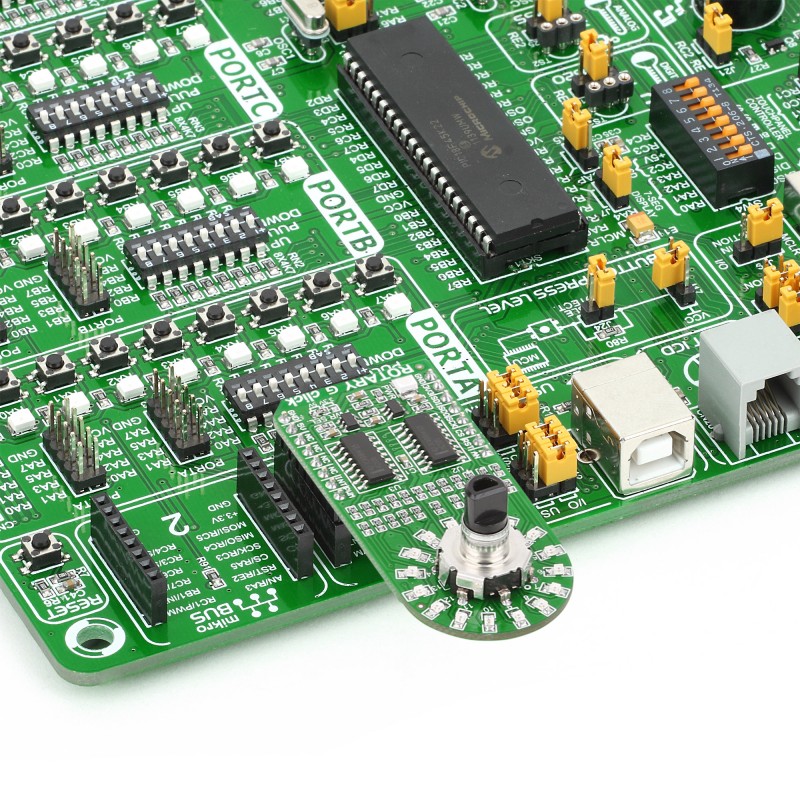

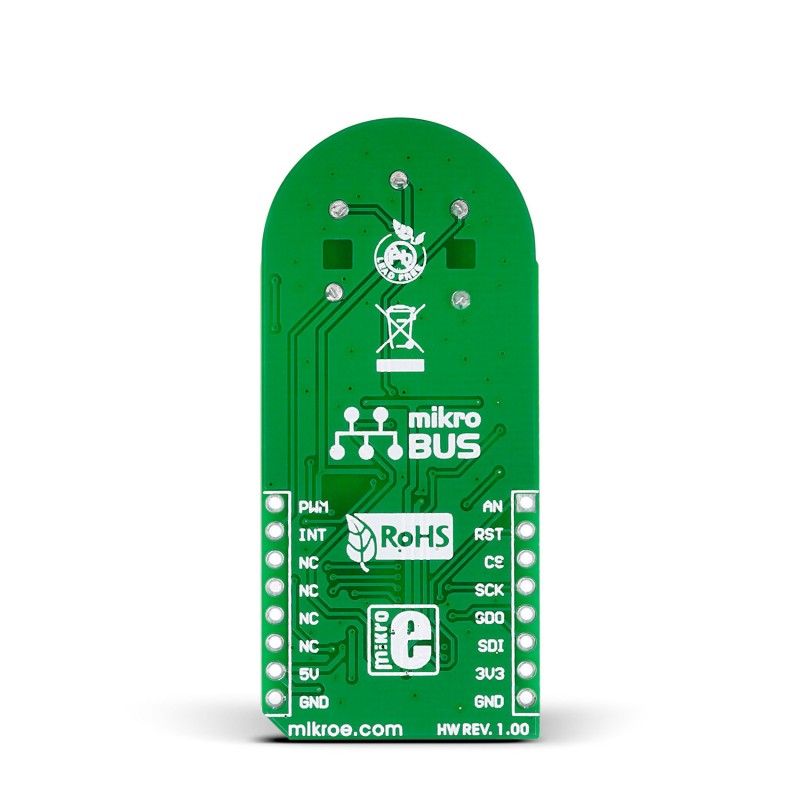

Rotary click carries a 15-pulse incremental rotary encoder with detents, surrounded by a ring of 16 green LEDs. It’s a perfect solution for adding a precision input knob to your design. The encoder outputs A and B signals (out of phase to each other); the knob also acts as a push-button which sends an interrupt to the target board MCU. The LED ring is controlled through SPI lines (CS, SCK, MISO, MOSI). Rotary click can be used with either a 3.3V or 5V power supply.

Specification

Type Rotary encoder
Applications Wheel controllers that spin infinitely are useful for controlling audio/video equipment and similar appliances
On-board modules EC12D 15-pulse rotary encoder
Key Features 30 indents (dividing the rotation into discrete increments)
Key Benefits Supported in all mikroElektronika compilers
Interface SPI,PWM,Analog,GPIO
Input Voltage 3.3V or 5V
Compatibility mikroBUS
Click board size L (57.15 x 25.4 mm)

View full details
