MikroElektronika

FLAME click

FLAME click

SKU:MIKROE-1820

Regular price Rs. 1,259.00
Regular price Sale price Rs. 1,259.00
Sale Sold out
Tax included.

1 in stock

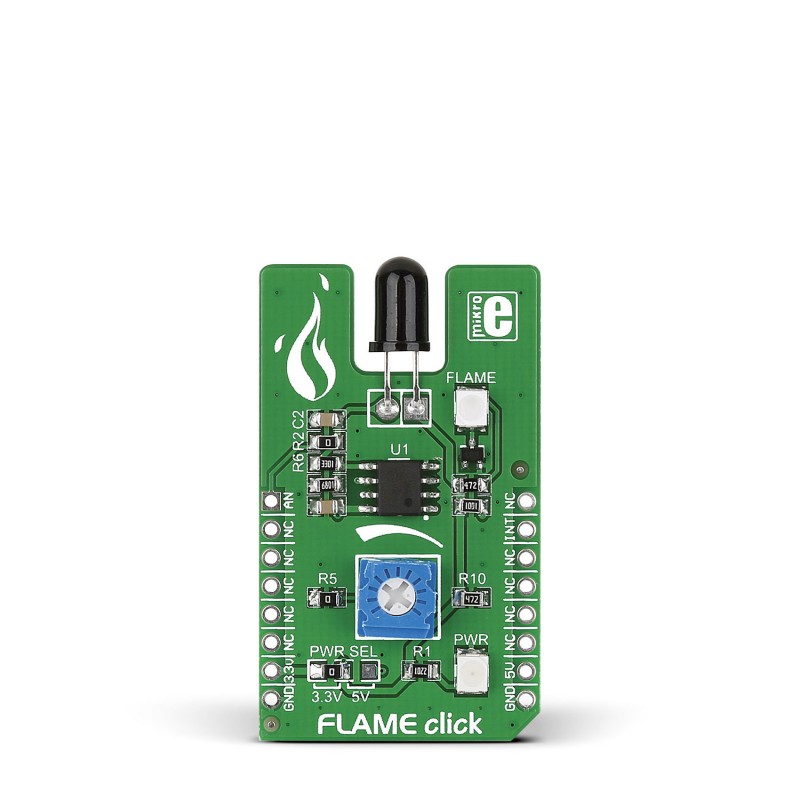

Flame click is a fire detection solution. It carries a PT334-6B silicon phototransistor that’s covered in black epoxy and therefore sensitive only to infrared light. To use it as a fire alarm, set up the exact detection threshold through the onboard potentiometer (once reached, the click will send an interrupt to the target board MCU through the mikroBUS INT pin). Othewise the sensor can also output a continuous analog signal through the mikroBUS AN pin. Flame click can use both a 3.3V or a 5V power supply.

Specification

Type Optical
Applications Properly calibrated, Flame click can be used for designing devices for a variety of security applications. Fire detectors based on phototransistors have a faster reaction time compared to smoke or heat detectors
On-board modules PT334-6B
Key Features Onboard potentiometer. Phototransistor covered in black epoxy. Uses AN and INT mikroBUS lines
Key Benefits Fast reaction time
Interface Analog,GPIO
Input Voltage 3.3V or 5V
Compatibility mikroBUS
Click board size M (42.9 x 25.4 mm)
