MikroElektronika

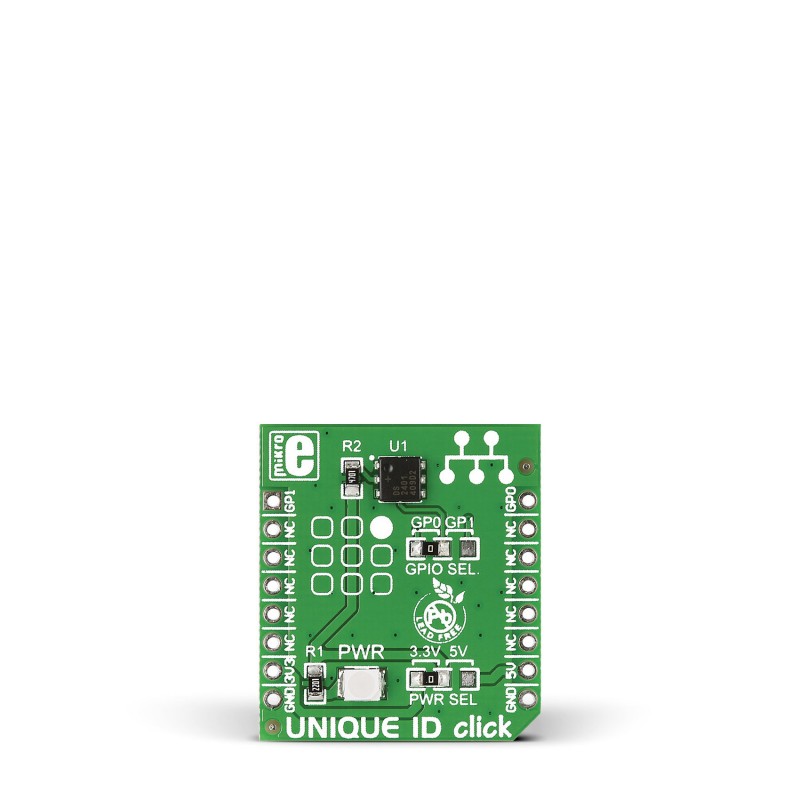

UNIQUE ID click

UNIQUE ID click

SKU:MIKROE-1819

Regular price Rs. 949.00
Regular price Sale price Rs. 949.00
Sale Sold out
Tax included.

1 in stock

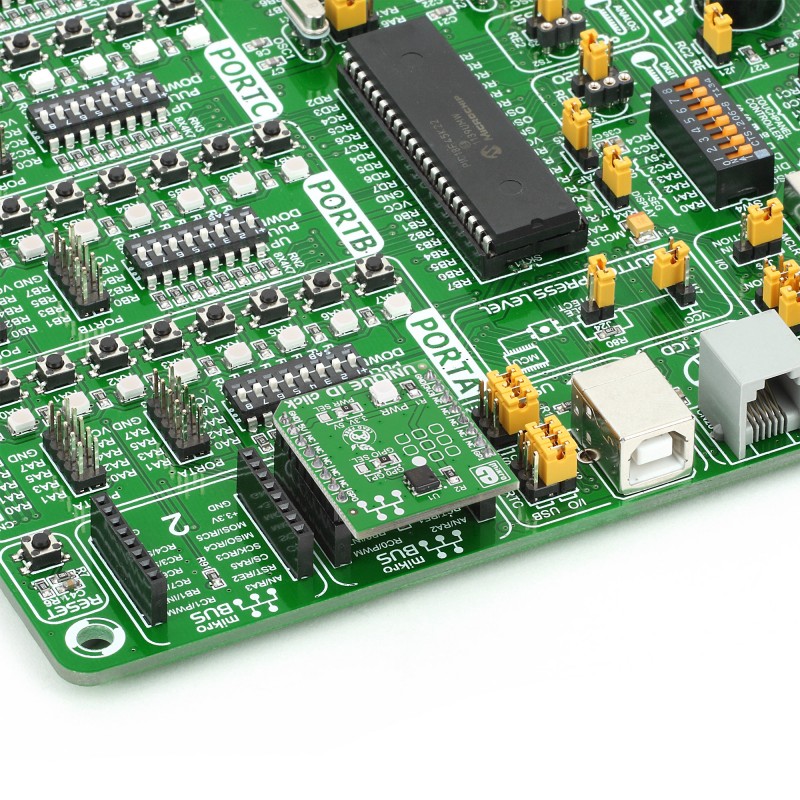

Unique ID click carries DS2401, an enhanced silicon serial number IC. It’s a low cost solution for providing a unique registration number to your design. The chip consists of a factory-lasered 64-bit ROM that includes a uniques a 48-bit serial number, an 8-bit CRC, and an 8-bit family code. It uses 1-wire communications for interfacing with the target board microcontroller, either through a GP1 or GP0 pin (here in place of the default AN and PWM mikroBUS pins). The board is designed to use either a 3.3V or 5V power supply.

Specification

Type ID
Applications PCB identification, equipment registration, network node ID
On-board modules DS2401
Key Features 1-Wire interface. Each click has a unique 48-bit serial number
Key Benefits Easiest way to provide a unique ID
Interface GPIO
Input Voltage 3.3V or 5V
Compatibility mikroBUS
Click board size S (28.6 x 25.4 mm)
