MikroElektronika

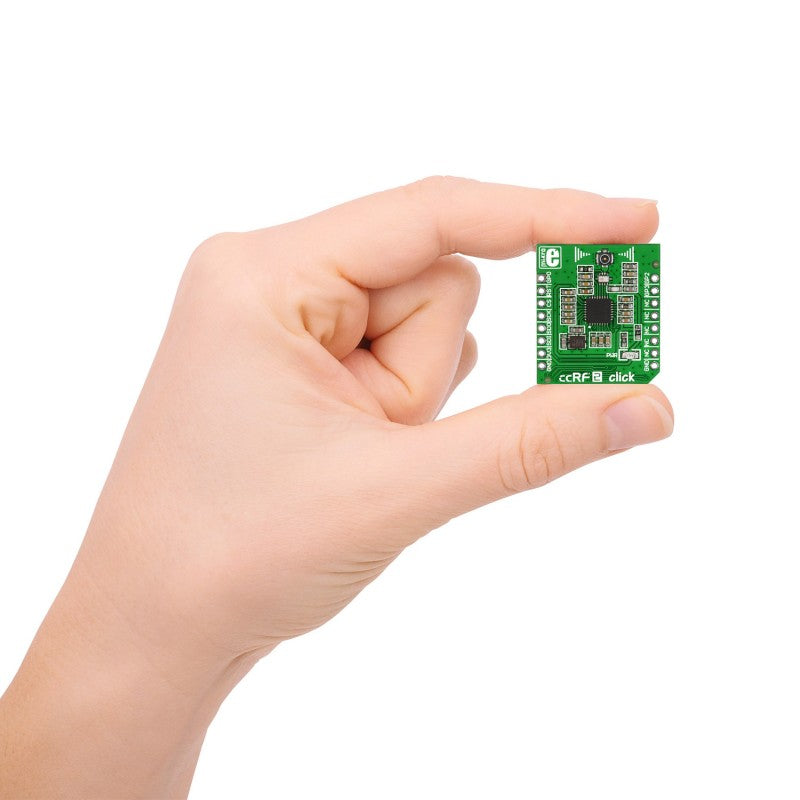

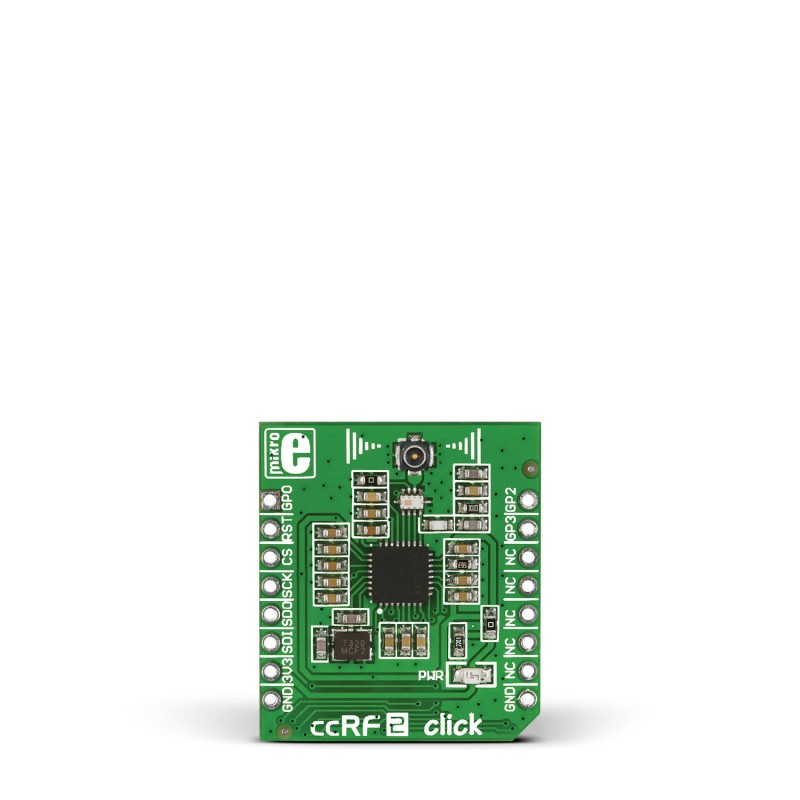

ccRF2 click
ccRF2 click
SKU:MIKROE-1716
Regular price
Rs. 3,779.00
Regular price
Sale price
Rs. 3,779.00
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Share

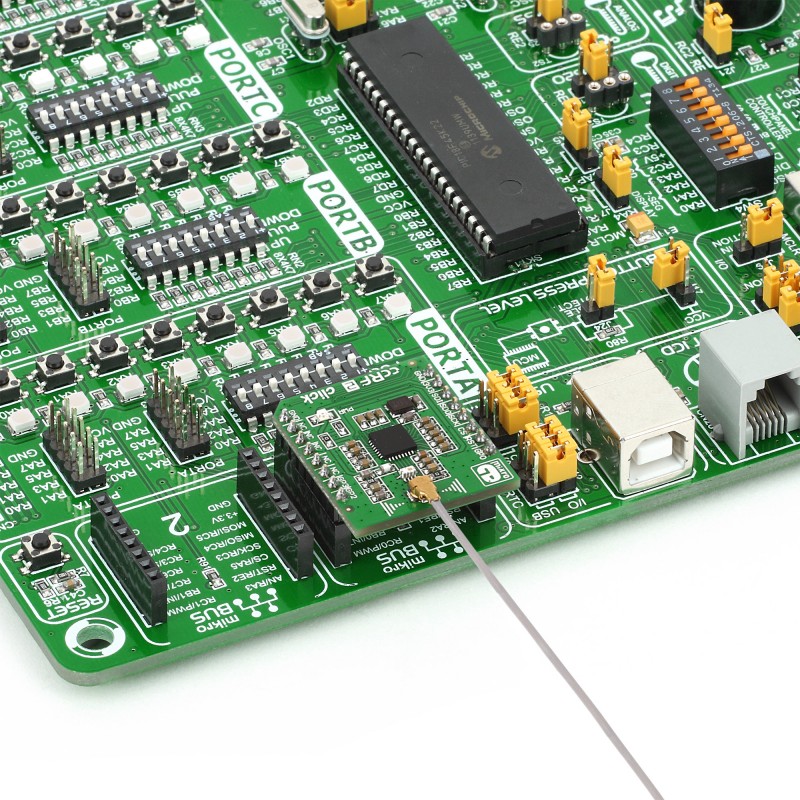

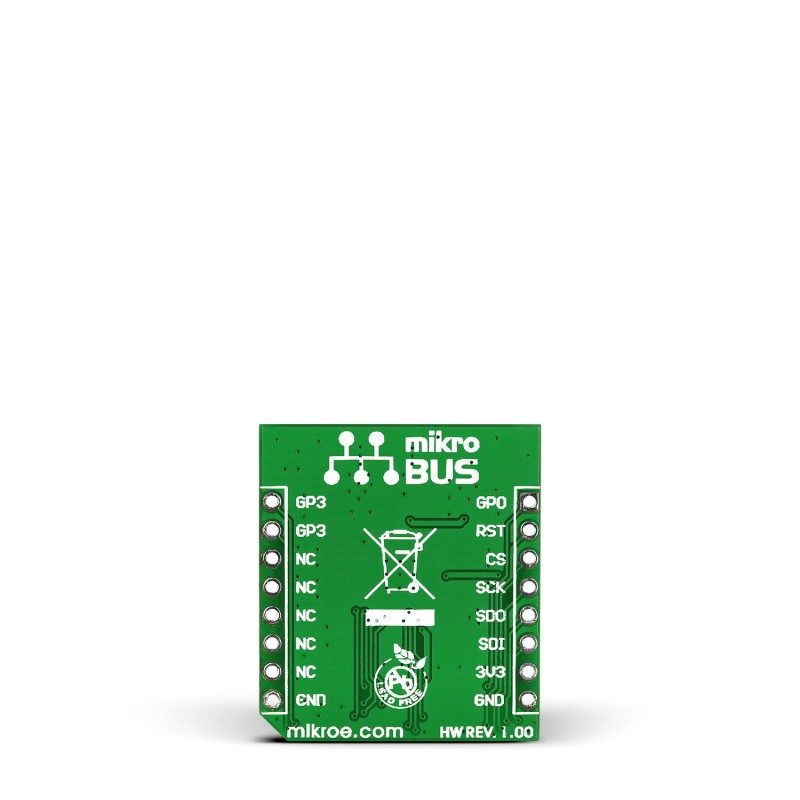

ccRF2 click carries CC1120, the fully integrated, high-performance single-chip radio transceiver with extremely low power consumption. Designed mainly for the ISM (Industrial, Scientific, and Medical) and SRD (Short Range Device) frequency bands at 820–960 MHz, CC1120 provides extensive hardware support for packet handling, data buffering, burst transmissions, clear channel assessment, link quality indication, and Wake-On-Radio. It also has exceptional receiver sensibility. ccRF2 click communicates with the target board through mikroBUS SPI (MISO, MOSI, CSK), and AN, RST, CS, PWM and INT lines. The board is designed to use a 3.3V power supply.
Specification
Type | RF Sub 1GHz |
Applications | Home and Building Automation, Industiral monitoring and control, wireless metering and so on |
On-board modules | CC1120 single-chip radio transceiver |
Key Features | Chip is designed chiefly for for ISM and SRD frequency bands |
Key Benefits | Designed mainly for the ISM (Industrial, Scientific, and Medical) and SRD (Short Range Device) frequency bands |
Interface | GPIO,SPI |
Input Voltage | 3.3V |
Compatibility | mikroBUS |
Click board size | S (28.6 x 25.4 mm) |
