MikroElektronika

HTU21D click

HTU21D click

MIKROE-1687

Rs. 2,209.00
Rs. 2,209.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

Out of stock

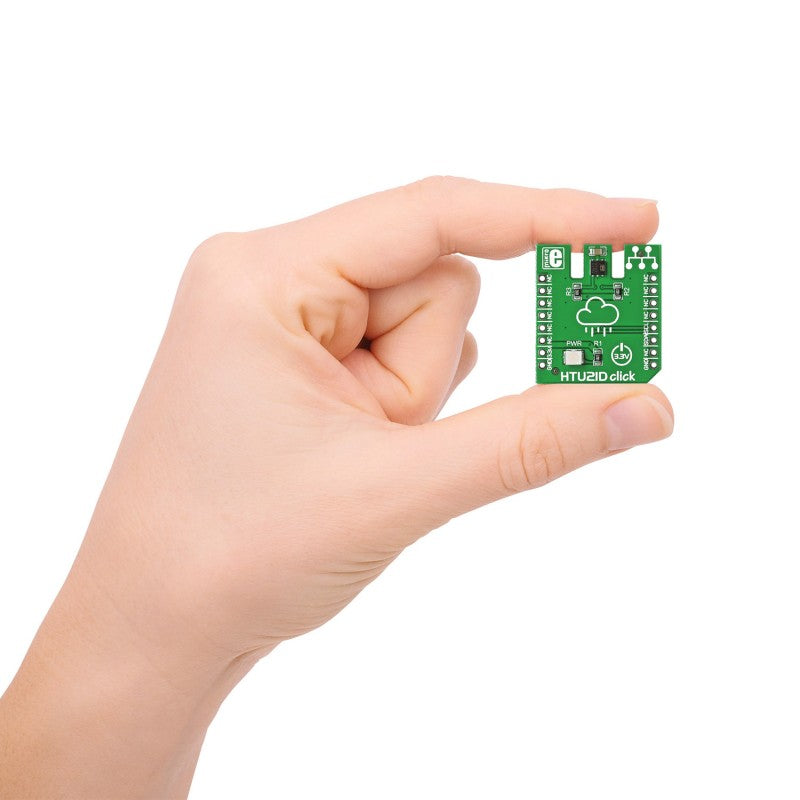

HTU21D click carries a high-precision, easy-to-use relative humidity sensor with temperature output. It's a great solution for quickly developing reliable environmental sensing nodes. The sensor is plug and play, requiring no calibration to use. The measurement range of HTU21D click is from 0 to 100 percents of relative humidity, and -40 to +125 degrees of Celsius. The board communicates with the target microcontroller through mikroBUS I2C lines: SCL and SDA (data). The default resolution of the signal is set to 12-bit for relative humidity and 14-bit for temperature readings. HTU21D click uses a 3.3V power supply.

Specification

Type Temperature,Humidity
Applications Weather station, environmental data loggers, sensors for HVAC controllers etc.
On-board modules Relative humidity sensor with temperature output
Key Features -40 to +125 °C temp. measurement range. 0 to 100 % RH measurement range
Key Benefits Fully calibrated. Adjustable signal resolution
Interface I2C
Input Voltage 3.3V
Compatibility mikroBUS
Click board size S (28.6 x 25.4 mm)
