MikroElektronika

OLED B click

OLED B click

SKU:MIKROE-1650

Regular price Rs. 2,519.00
Regular price Sale price Rs. 2,519.00
Sale Sold out
Tax included.

Out of stock

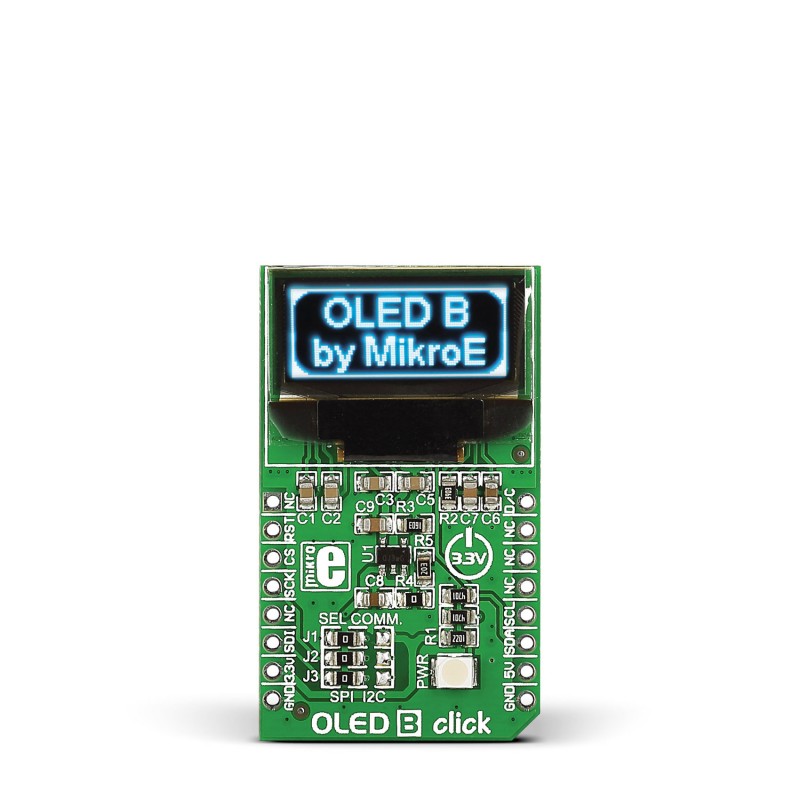

OLED B click carries a 96 x 39px blue monochrome passive matrix OLED display. The display is bright, has a wide viewing angle and low power consumption. To drive the display, OLED B click features an SSD1306 controller. It's built-in functionalities include contrast control, normal or inverse image display, vertical and horizontal scrolling functions and more. OLED B click can communicate with the target board MCU either through SPI or I2C mikroBUS lines. You switch between output options by resoldering the onboard SEL COMM jumpers (J1, J2 and J3) to the appropriate position. OLED B click uses a 3.3V power supply.

Specification

Type OLED
Applications Ideal for displaying bright and crisp blue text or icons
On-board modules SSD1306 controller, 96 x 39px blue monochrome passive matrix OLED display
Key Features 96 x 39px resolution, 19.3 x 7.8mm active area
Key Benefits Onboard controller enables scrolling, contrast control etc.
Interface SPI,GPIO,I2C
Input Voltage 3.3V or 5V
Compatibility mikroBUS
Click board size M (42.9 x 25.4 mm)
