MikroElektronika

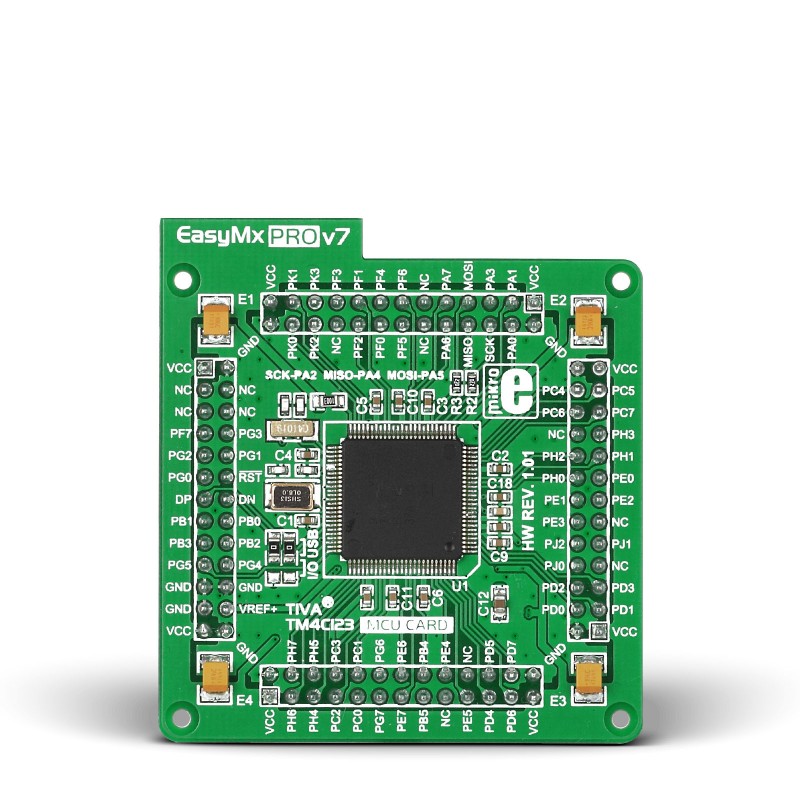

EasyMx PRO v7 for Tiva MCU card with TM4C123GH6PZL
EasyMx PRO v7 for Tiva MCU card with TM4C123GH6PZL
SKU:MIKROE-1621
Couldn't load pickup availability
Share
TM4C123GH6PZ belongs to the ARM® Cortex™-M4 family. It operates at 80MHz, has 256 KB of Flash memory, 32 KB of single-cycle System SRAM, USB 2.0 (OTG, Host, Device), Up to 69 General purpose I/O pins, 6x16/32-bit timers, 2x12- bit A/D (22 channels), a 12-bit D/A , 8xUARTs, internal Real time clock (RTC), 4xI2C, 4xSPI and 2xCAN controllers. It has Serial wire debug (SWD) and JTAG interfaces for programming and debugging.
8MHz crystal oscillator. We carefully chose the most convenient crystal value that provides clock frequency which can be used directly, or with the PLL multipliers to create higher MCU clock value.
32.768-kHz external crystal oscillator which provides external clock for the internal hibernation module.
Specification
Architecture | ARM (32-bit) |
MCU | TM4C123GH6PZL |
MCU speed | 100 DMIPS, 80 MHz, 1.25 DMIPS/MHz |
MCU Memory | 256 KB of Flash, 32 KB of SRAM |
Input Voltage | 3.3V |
Compatibility | EasyMx PRO v7 for Tiva |
