MikroElektronika

XBEE click

XBEE click

SKU:MIKROE-1599

Regular price Rs. 6,199.00
Regular price Sale price Rs. 6,199.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

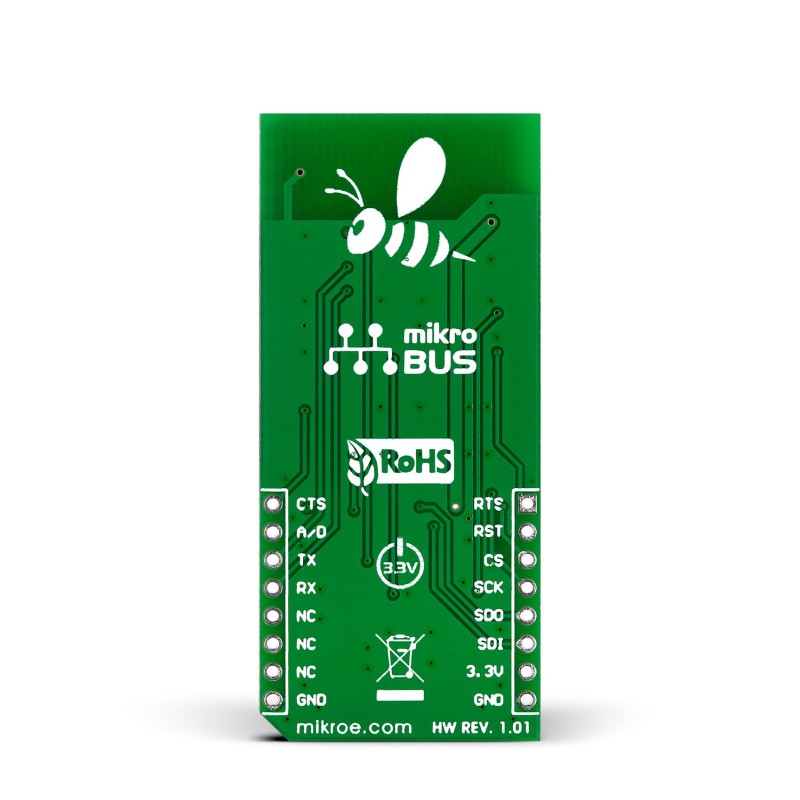

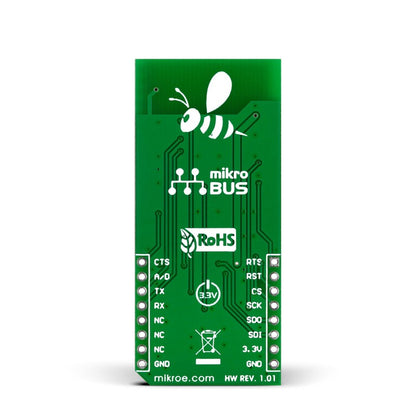

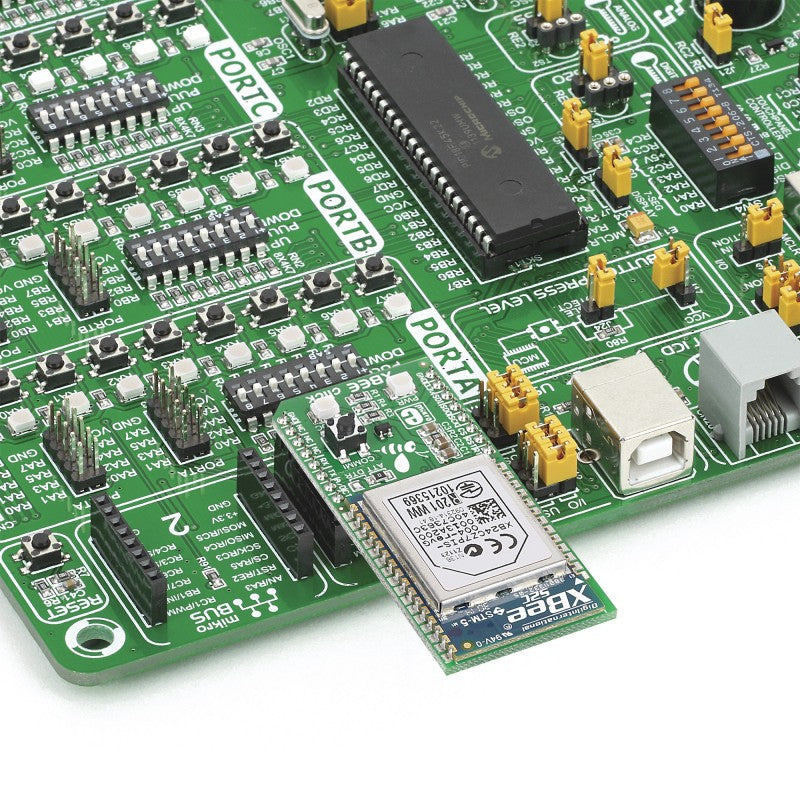

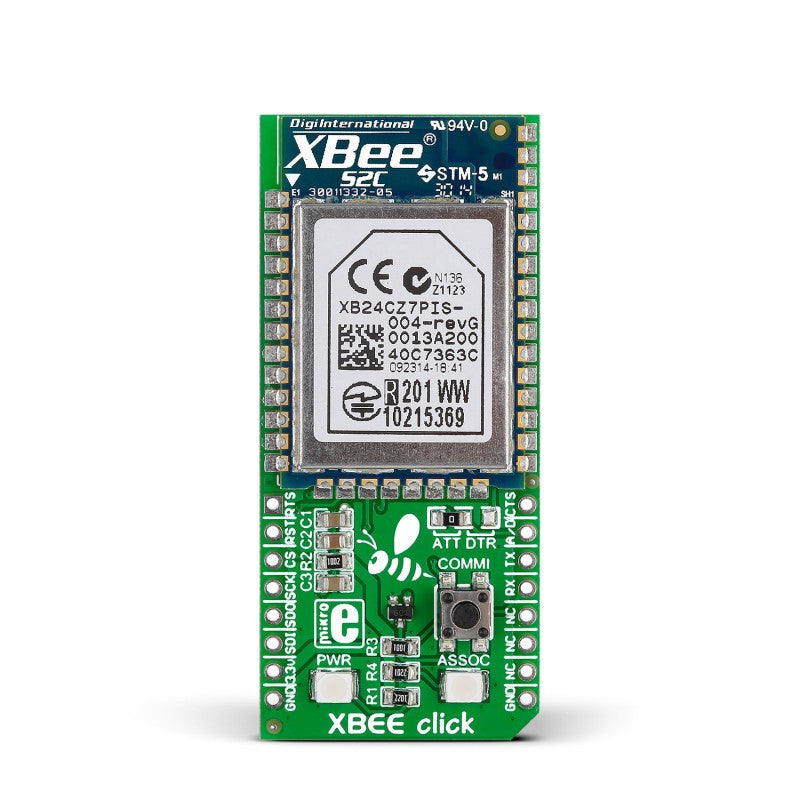

XBee click carries the Xbee® and Zigbee-compliant XB24CZ7PIS-004 module with a PCB antenna from Digi International. The module provides wireless connectivity to end-point devices in ZigBee mesh networks. The module has a wireless range of up to 60 meters indoors, or up to 1200m in outdoor line-of-sight applications. The RF data rate is up to 250,000 Kbps. The board can communicate with the target MCU either through the mikroBUS UART interface (TX, RX, RTS i CTS), or SPI (MISO, MOSI, SCK, CS). Additional functionality is provided by Reset, and ATTN-DTR pins. To simplify deployment, the click board features a pushbutton to issue simple configuration commands with subsequent button presses. Uses 3.3V power supply only.

Specification

Type ZigBee
Applications ZigBee is a low-power networking solution for applications that don’t require high data rates, which can be anything from smart homes and building automation, to industrial control
On-board modules Zigbee-compliant XB24CZ7PIS-004 module with a PCB antenna from Digi International
Key Features Indoor range 60 meters; line-of-sight range up to 1.2km. 2.4-2.5 GHz frequency band, RF data rate up to 250 Kbps
Key Benefits Low power consumption
Interface SPI,GPIO,UART
Input Voltage 3.3V
Compatibility mikroBUS

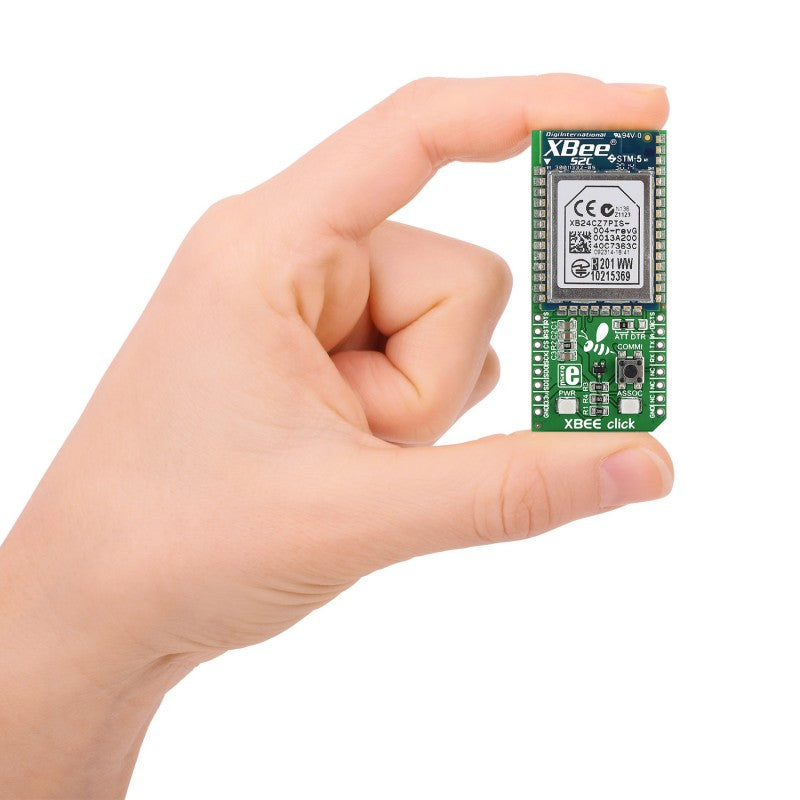

Click board size L (57.15 x 25.4 mm)
